Sonifex S2 - S2-ML53 LED Meter Panel; Fig 20-4: PPM & True PPM Meter Panel; Fig 20-5: VU Meter Panel

S2 User Handbook
137
METERBRIDGE MODULES
METERBRIDGE MODULES
20
S2-MVU Meterbridge VU Meter Panel, S2-MPPM PPM Meter Panel,
S2-MPPT True PPM Meter Panel & S2-ML53 LED Meter Panel*

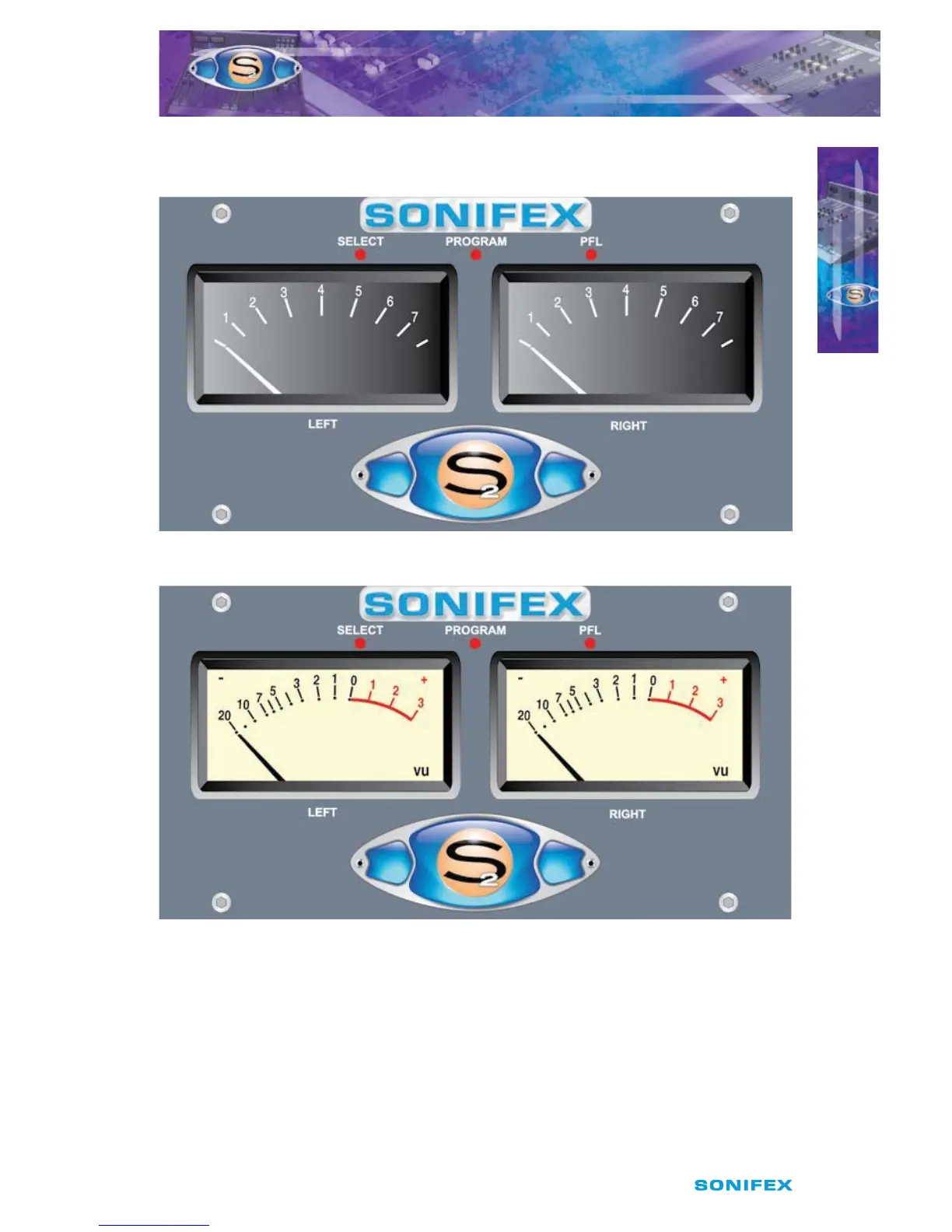

Fig 20-4 : PPM & True PPM Meter Panel.
Fig 20-5 : VU Meter Panel.
* Please note that the S2-MPPT has been discontinued.
