12 S2 CSMM Stereo Mix Minus Channel With EQ

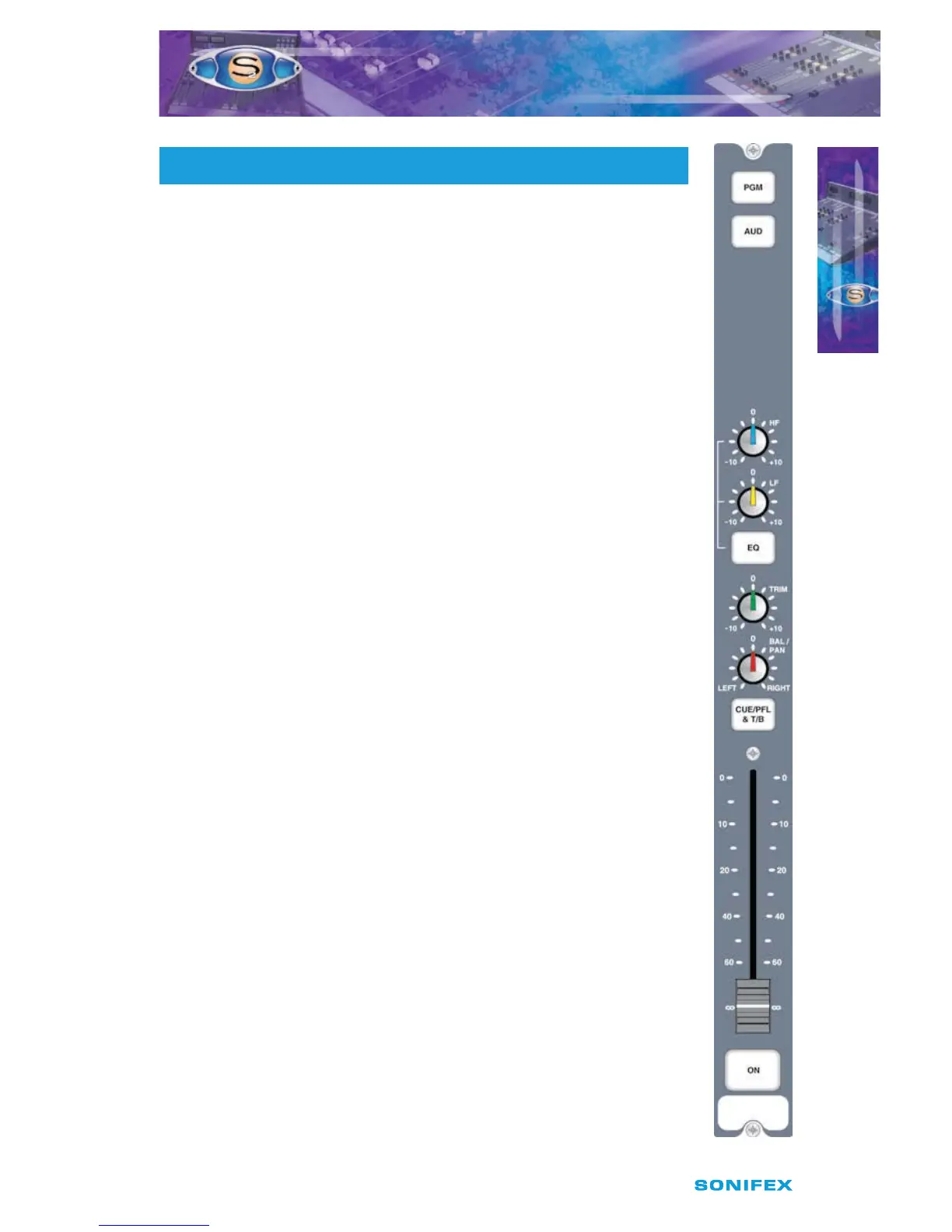

Panel Controls
PGM and AUD Selection
Selecting the PGM, AUD buttons routes the channel audio output to
the PGM and/or AUD mix busses. The buttons are illuminated in green
to indicate the routing status. Changing the status of the PGM button is
inhibited when the channel is “live”. Selecting the PGM button also routes
the PGM main output via the mix minus system to the cleanfeed output.
Similarly, selecting the AUD button routes the AUD main output to the
mix minus system. When both PGM and AUD are selected the mix minus is
derived from the PGM output.
Equalisation Controls
The HF and LF controls are used to adjust the equalisation of the signal. The
HF control boosts and cuts the signal by ± 7dB at 6.5kHz. The LF control
boosts and cuts the signal by ± 7dB at 100Hz. The EQ button places the
equalisation in and out of the signal path. The button is illuminated in yellow
when the EQ is active.
TRIM Control
The TRIM control provides an additional ± 12dB of gain to ne tune the input
signal level.
BAL/PAN Control
The BAL/PAN control can be set to function as either a Balance or Pan
control, depending on the setting of J12 & J13. As a balance control, full anti-
clockwise shifts the signal to the left and increases the signal by 6dB (right
channel reduces by 6dB); full clockwise shifts the signal to the right and
increases the signal by 6dB (left channel reduces by 6dB). As a pan control,
full anti-clockwise pans the signal to the left and increases the signal by 6dB
(right channel reduces by 70dB); full clockwise pans the signal to the right
and increases the signal by 6dB (left channel reduces by 70dB).
CUE/PFL & T/B Selection
Selecting the CUE/PFL & T/B button routes the pre-fader input signal to the
monitoring system where the signal can be heard via headphones and/or
loudspeakers. The level may be checked on meters and adjusted via the TRIM
control and balanced via the BAL/PAN control. In addition, talkback is routed
to the cleanfeed output. This enables the presenter/technical operator to
communicate with the remote source prior to going live to air. The button
is illuminated in green when CUE/PFL is active. There is a jumper option to
cancel the CUE/PFL selection when the fader is raised. This button works
with both a momentary and latched operation. If held down, the selection is
cancelled when released, otherwise the button is alternate action.
