Sonifex S2 - S2-MTBS Meterbridge Station Master Talkback Panel

S2 User Handbook
141
METERBRIDGE MODULES
METERBRIDGE MODULES
20
Mixer Talkback Connector
This 9 pin D type plug is used for connecting the Talkback module to the Control Room
Monitor channel. The connection cable is supplied with the Talkback module, which plugs
into the S2-MTB6 via the mixer meterbridge housing, and down into the two talkback jack
sockets on the rear of the Control Room channel.
The connector pin-out is as follows;
Pin 1: Talkback in phase (to mixer).
Pin 2: Talkback control.
Pin 3: No connection.
Pin 4: Talkback out phase (from mixer).
Pin 5: Ground.
Pin 6: Talkback in non-phase (to mixer).
Pin 7: No connection.
Pin 8: Talkback out non-phase (from mixer).
Pin 9: No connection.
S2-MTBS Meterbridge Station Master Talkback Panel

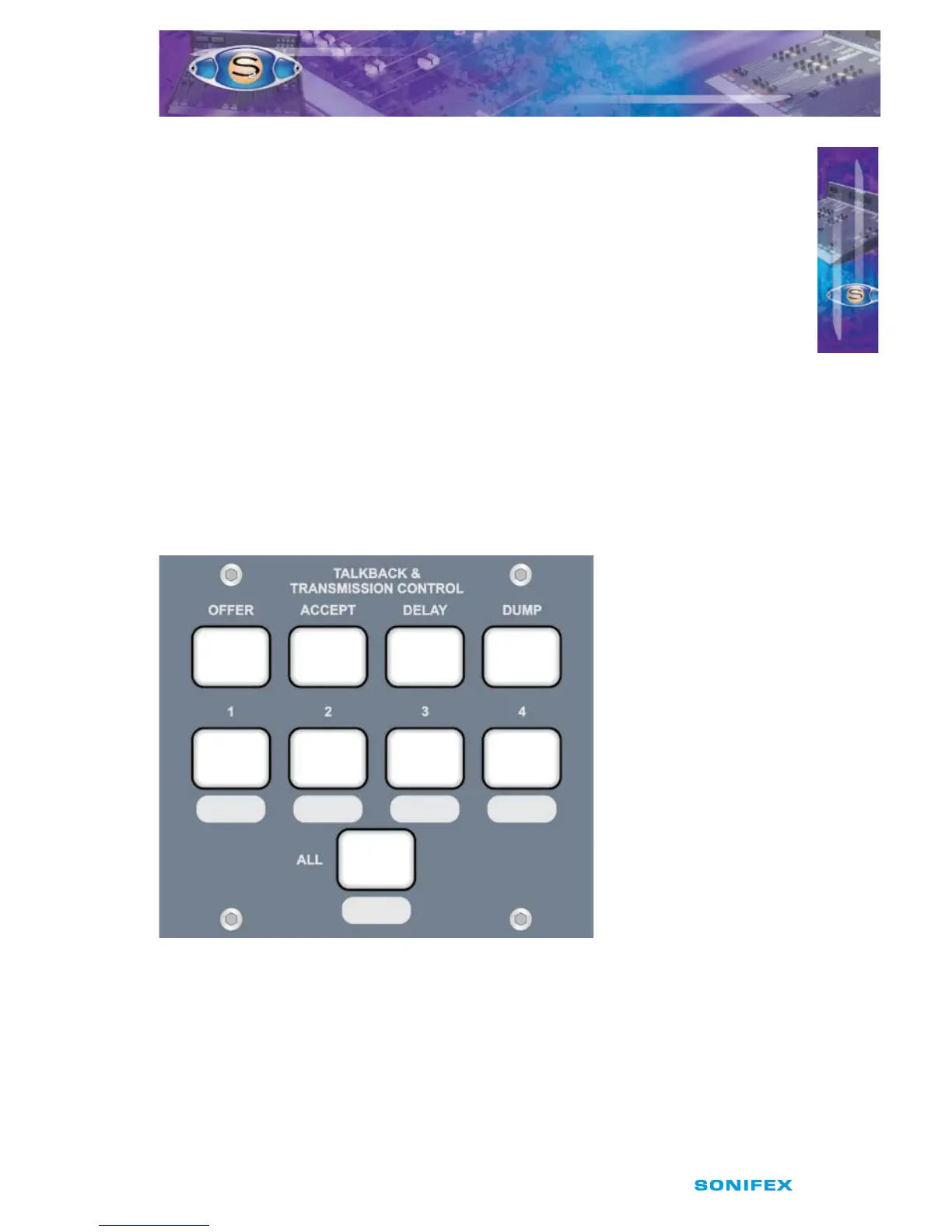

Fig 20-9 : Meterbridge Station Master Talkback Panel.
The S2-MTBS panel is used for interfacing with a Sonifex Station Master. See the Station
Master manual for functionality and connection information.
Rear Panel
Station Master Talkback Connector
This 25 pin D type socket is used for connecting to the Talkback connector on a Sonifex
Station Master.
