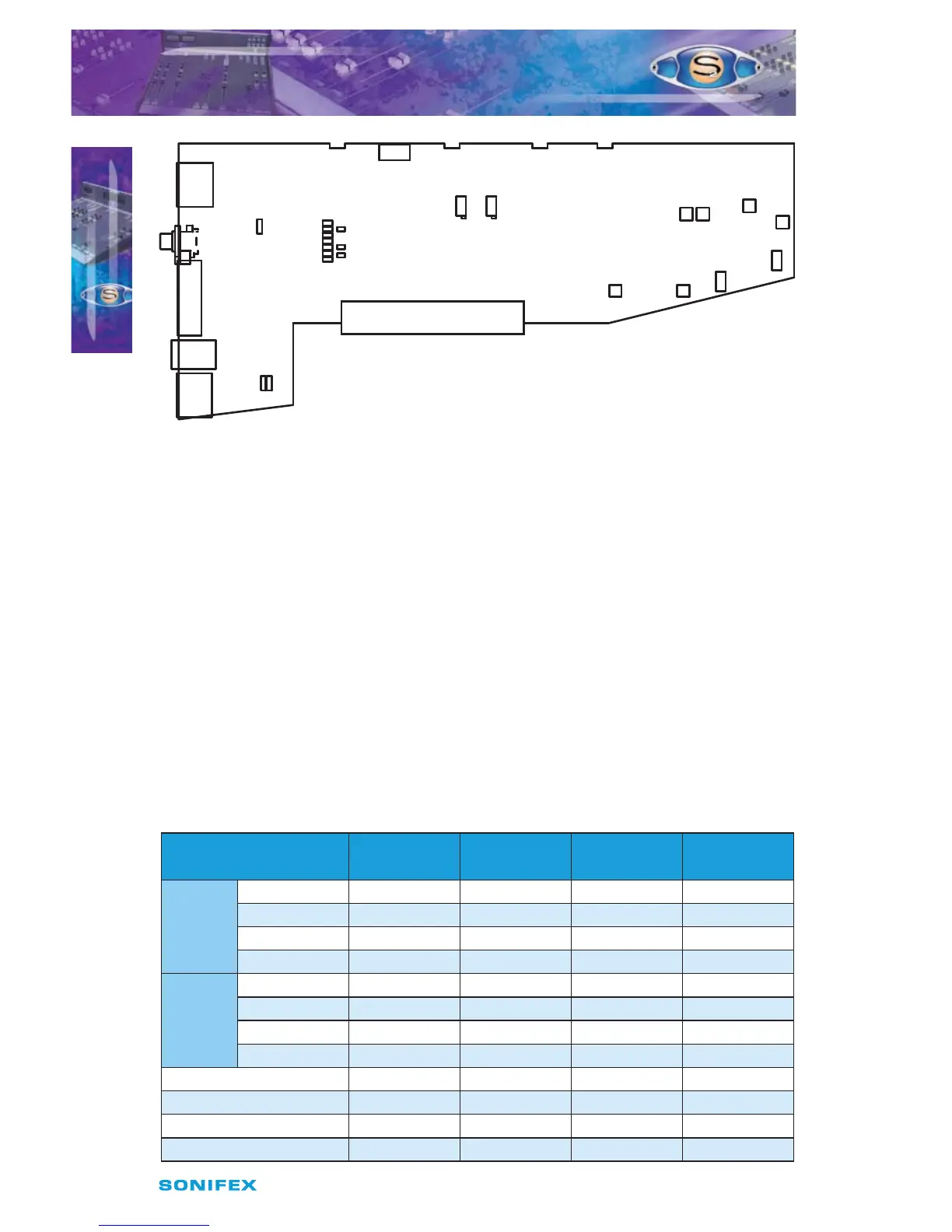

Fig 16-2 : S2 Digital AUD Output With Fader Board Layout.
Synchronisation Mode and Sample Rate
The following jumpers, J3 to J9, are used for setting the Sync Mode and Sample Rate of the
digital output.
In Master mode, the digital output sample rate is simply set by, and locked to, the internal
on-board clock generator. No sync signal is used or required.
In Auto mode the sample rate follows the sync input. When the sync signal is not present
the sample rate will be set by, and locked to, the internal on-board clock generator at a
frequency determined by the jumpers.
In Auto Lock mode, the sample rate follows the sync input. If the sync signal is removed then
the sample rate will be set by, and locked to, the internal on-board clock generator at the
closest frequency available to the previous sync input. When there has been no sync input
detected the output will lock to the on-board clock generator at 32kHz.
In Slave mode, the sample rate follows the sync input. When the sync signal is not present
the digital output is muted.
Synchronisation Mode /
Sample Rate (kHz)
J3 J4 J5 J6
MASTER
32 Not Fitted Not Fitted Not Fitted Not Fitted
44.1 Fitted Not Fitted Not Fitted Not Fitted
48 Not Fitted Fitted Not Fitted Not Fitted
96 Fitted Not Fitted Fitted Not Fitted
AUTO
32 Not Fitted Fitted Fitted Not Fitted
44.1 Fitted Fitted Fitted Not Fitted
48 Not Fitted Not Fitted Not Fitted Fitted
96 Fitted Fitted Not Fitted Fitted
Auto Lock Not Fitted Not Fitted Fitted Fitted
Slave Mode Fitted Not Fitted Fitted Fitted
Reserved Not Fitted Fitted Fitted Fitted
Reserved Fitted Fitted Fitted Fitted
P5
A/D
Trim L
A/D
Trim R
P6
P6
P2P1
P3
P8
P9
P7
LK42
Module B
LK45
LK46
Digi
Fader
Left
Lim
Sym.
Right
Lim
Sym.
Right
Sym.
Left
Sym.
Set
VCA
0dB
Set
Threshold
Set
Gain
J11J10
J12
J3
J4
J5
J6
J7
J8
J9
AES
SPDIF
AES
SPDIF
S2ODAF/S2ODA DIGITAL OUTPUT AUD CHANNEL
WITH & WITHOUT MASTER FADER VERSION 1
S2ODAF/S2ODA DIGITAL OUTPUT
AUD CHANNEL WITH & WITHOUT
MASTER FADER VERSION 1
