S2 User Handbook
10 S2-C6SS 6 Way Stereo Line Source Select
Channel With EQ

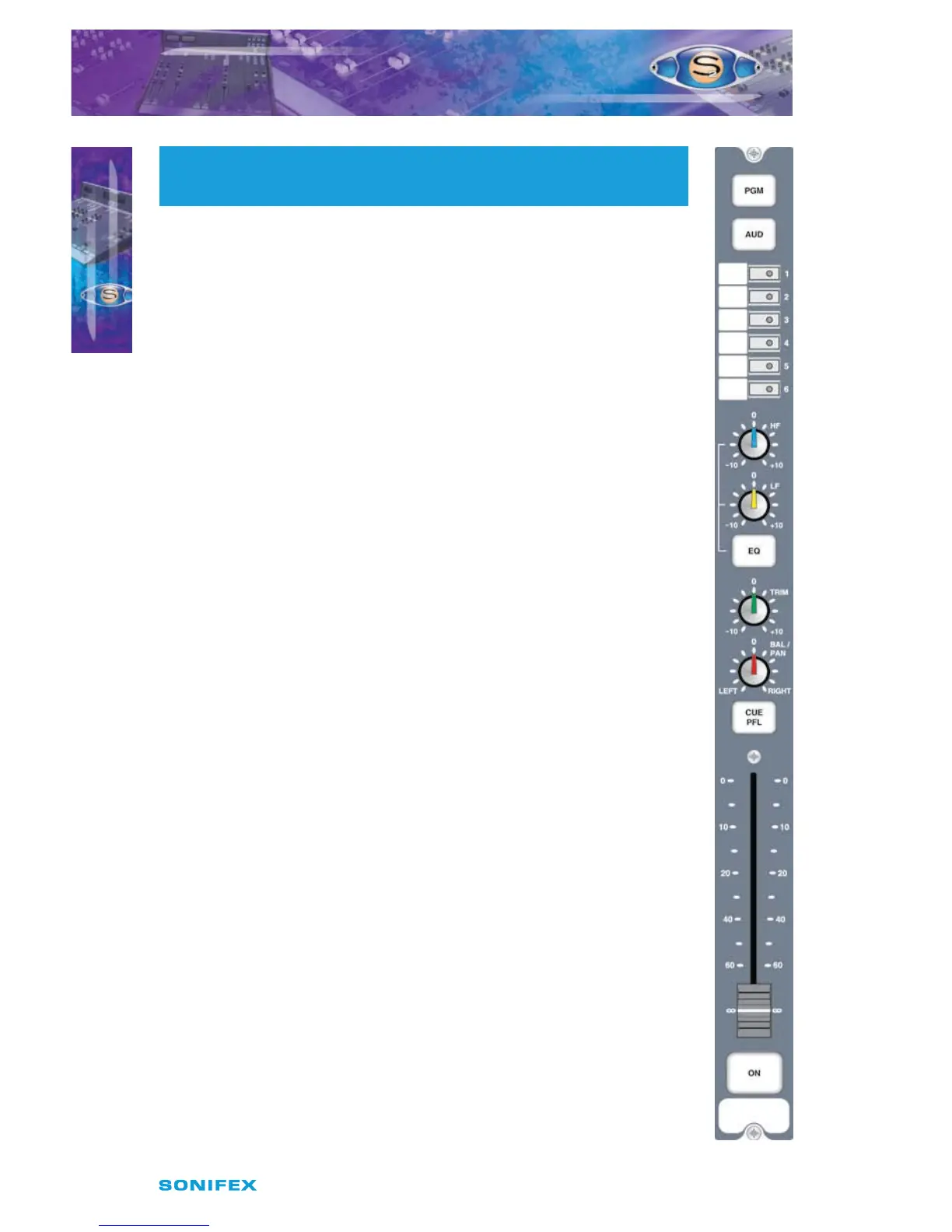

Panel Controls
PGM and AUD Selection
Selecting the PGM, AUD buttons routes the channel audio output to
the PGM and/or AUD mix busses. The buttons are illuminated in green
to indicate the routing status. Changing the status of the PGM button is
inhibited when the channel is “live”.
Input Selection
The interlocking switch bank selects one of six stereo inputs. The LED in
the buttons indicates the currently selected input. The switches select the
individual balanced stereo inputs as well as the remote outputs.
Equalisation Controls
The HF and LF controls are used to adjust the equalisation of the signal. The
HF control boosts and cuts the signal by ± 7dB at 6.5kHz. The LF control
boosts and cuts the signal by ± 7dB at 100Hz. The EQ button places the
equalisation in and out of the signal path. The button is illuminated in yellow
when the EQ is active.
TRIM Control
The Trim control provides an additional ± 12dB of gain to ne tune the input
signal level.
BAL/PAN Control
The BAL/PAN control is used to balance the stereo image. Full anti-clockwise
shifts the signal to the left and increases the signal by 6dB (right channel
reduces by 6dB); full clockwise shifts the signal to the right and increases the
signal by 6dB (left channel reduces by 6dB).
CUE/PFL Selection
Selecting the CUE/PFL button routes the pre-fader input signal to the
monitoring system where the signal can be heard via headphones and/or
loudspeakers. The level may be checked on meters and adjusted via the Trim
control and balanced via the Bal control. The button is illuminated in green
when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL
selection when the fader is raised. This button works with both a momentary
and latched operation. If held down, the selection is cancelled when
released, otherwise the button is alternate action.
Fader
The 100mm VCA fader provides unity gain when fully open. The channel
input signal is routed to the outputs whenever the fader is open, the ON
button is selected and either or both of the routing buttons are selected.
