S2 User Handbook
71
10
S2-C6SS 6 WAY STEREO LINE SOURCE
SELECT CHANNEL WITH EQ
S2-C6SS 6 WAY STEREO LINE SOURCE SELECT CHANNEL WITH EQ
ON Selection
The ON button works in conjunction with the fader and is used to control channel remotes,
routing, timers, etc. The button shows various states. When unlit the channel is o. Flashing
red indicates that the channel has been selected to ON but remains unrouted i.e. neither
PGM or AUD is selected. Steady red indicates that the channel is ON and “armed”, ready
for the fader to be raised. Raising the fader changes the illumination to green indicating
that the channel is live. Alternatively, with the button unlit the fader may be raised and
the channel can be operated simply by selecting ON. The illumination in this case toggles
between unlit, channel OFF and green, channel ON. Remotes, etc, are triggered when the
fader is up and the channel ON button shows green.
Scribble Pad
A scribble pad is provided at the bottom for user labelling of the channel function e.g. “OS 1”.

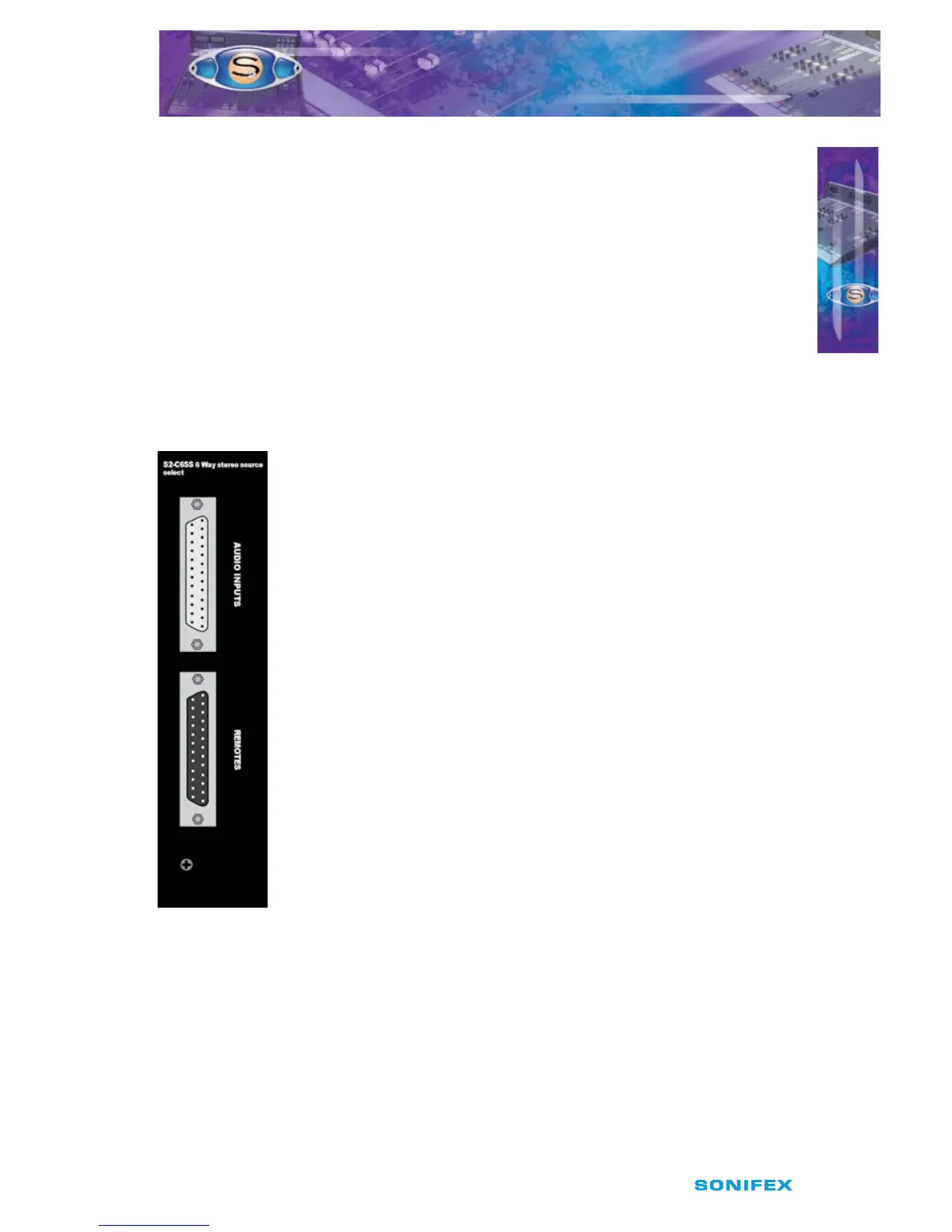

Rear Panel
Stereo Audio Source Input Connector
This 25 pin D type socket is used for all of the Stereo Source inputs, and
has the following connections;
Pin 1: Screen, chassis.
Pin 2: OS 1 Left phase.
Pin 3: OS 1 Right phase.
Pin 4: OS 2 Left phase.
Pin 5: OS 2 Right phase.
Pin 6: OS 3 Left phase.
Pin 7: OS 3 Right phase.
Pin 8: OS 4 Left phase.
Pin 9: OS 4 Right phase.
Pin 10: OS 5 Left phase.
Pin 11: OS 5 Right phase.
Pin 12: OS 6 Left phase.
Pin 13: OS 6 Right phase.
Pin 14: OS 1 Left non-phase.
Pin 15: OS 1 Right non-phase.
Pin 16: OS 2 Left non-phase.
Pin 17: OS 2 Right non-phase.
Pin 18: OS 3 Left non-phase.
Pin 19: OS 3 Right non-phase.
Pin 20: OS 4 Left non-phase.
Pin 21: OS 4 Right non-phase.
Pin 22: OS 5 Left non-phase.
Pin 23: OS 5 Right non-phase.
Pin 24: OS 6 Left non-phase.
Pin 25: OS 6 Right non-phase.
