S2 User Handbook

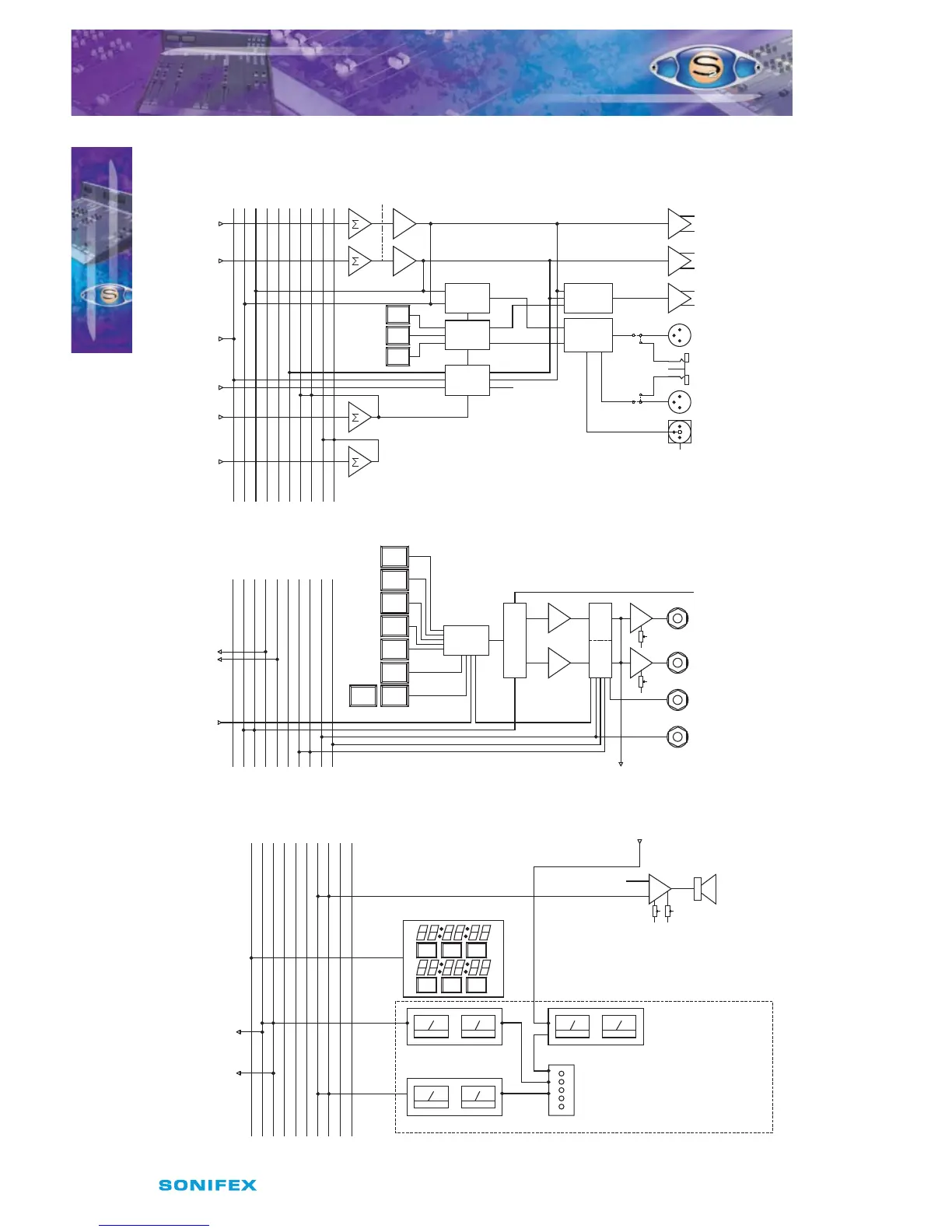

Fig 2-11 : System Block Diagram (Sheet 2).
INSTALLATION NOTES
INSTALLATION NOTES
2
Output Channels Diagram - ODP,ODPF,ODA, and ODAF
FROM LEFT
PGM BUS
ANALOGUE PGM
(AUD) OUTPUT LEFT
ANALOGUE PGM
(AUD) OUTPUT
RIGHT
ANALOGUE MONO
OUTPUT
AES/EBU PGM
(AUD) OUTPUT
SPDIF PGM
(AUD) OUTPUT
SPDIF SYNC
AES/EBU SYNC
WORDCLOCK
FROM RIGHT
PGM BUS
FROM CPU
FROM
MUTES BUS
FROM L&R
PFL
BUS
FROM
TALKBACK
BUS
AES/SPDIF
OUTPUT
SELECT
METER
SELECT
A/D
CPU
PGM
AUD
CR
MON
S2-ODP ONLY
DIGITAL
AUDIO
INTERFACE
AES/SPDIF
METERBRIDGE
FADER OPTION
LRLR LR12
PGM
O/P
AUD
O/P
PFL
O/P
T/B
O/P
TIMERS REV T/B
1
3
2
1 2
1 233
A
B
TO S2-CT
TELCO
CLEANFEED
SELECTION
L&R
EXTERNAL
INPUTS
C/ROOM/
STUDIO
MONITORS
PRES/STUDIO
HEADPHONES
REV T/B
TALKBACK
OUTPUT
FROM MUTES
BUS
CPU
PGM
AUD
EXT 1
EXT 2
AUTO
CUE
AUTO
CUE
SPLIT
CUE
STUDIO
T/B
TO MONITOR METERS
STUDIO C/ROOM
LEVEL
LEVEL
CUE/PFL MUTE/
DIM TALKBACK
GLOBAL T/B
LRLR LR12
PGM
O/P
AUD
O/P
PFL
O/P
T/B
O/P
TIMERS REV T/B
TO CLEANFEED
LEFT (S2-CSMM)
TO CLEANFEED
RIGHT (S2-CSMM)
PFL METERS PHASE METER
PGM METERS
CUE/PFL
TALKBACK
LOUDSPEAKER
MONITOR METERS
S2-MPPM DUAL PPM METER PANEL
S2-MPPT TRUE DUAL PPM METER PANEL
S2-MVU DUAL VU METER PANEL
S2-ML53 DUAL LED BAR GRAPH METER
S2-MPH PHASE METER PANEL
CUE/PFL REV T/B
REV T/B
S2-ML
S2-MT
DUAL TIMER, CLOCK AND DATE DISPLAY
FROM MONITOR OUTPUT
LRLR LR12
PGM
O/P
AUD
O/P
PFL
O/P
T/B
O/P
TIMERS REV T/B
MODERESET
START
STOP
MODERESET
START
STOP
Output Channels Diagram - OMS and OMC
Meterbridge Diagram - MPPM/T, PPM, MVU, VU, ML53, MPH, MTBS, MTB6, MT, and ML
