The N–1 bus and the Audition bus output levels are controlled on the
TEL/N–1/AUDIT page using the rotary encoders. For details, please refer
to chapter 5.3.1.
When touching BACK TO CTRL OUT/IN CFG, the display switches back
from the bus assignment option to the standard INPUT CONFIG. page.
TIMER START If TIMER START is set to YES, the fader stop watch will be started/reset
by the corresponding fader, if the channel is ON and the fader is opened.
TIMER START is related to the input signal and will be re-routed when
the input module assignment is changed.
SAVE / EXIT The Input Configuration must be saved for each input channel. If the user
switches to a different channel, a dialog box will call his attention to the
fact that the changes will be cancelled if he does not save the current Input
Configuration. The program remains in the Input Configuration page when
saving a channel. Once a change has been saved, it will not be cancelled
when leaving the Input configuration page with EXIT.
12.2.2 Common Settings

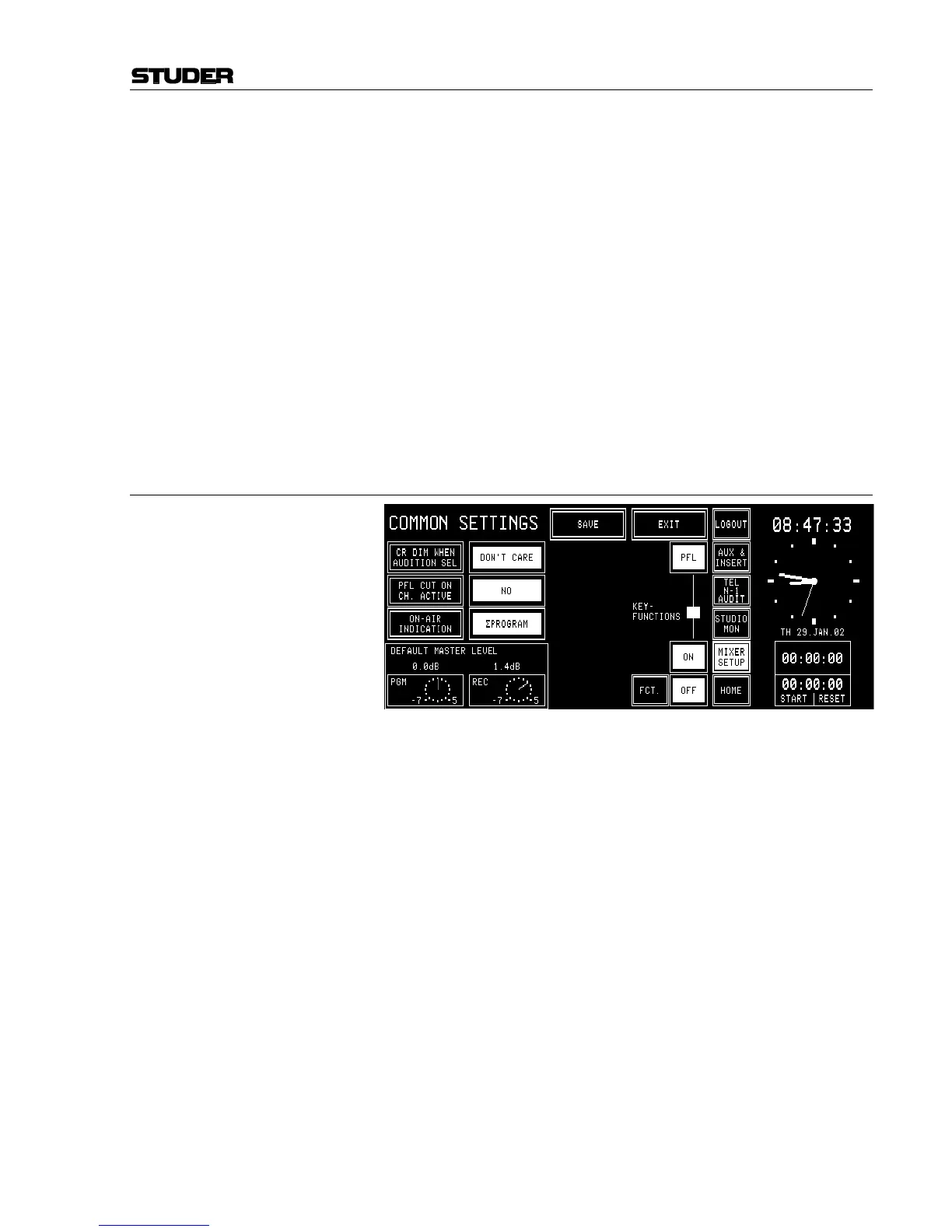

The COMMON SETTINGS page contains the following configuration
possibilities:
CR DIM WHEN AUDITION SEL When the Audition bus is selected as a CR monitoring source, and a CR mi-
crophone channel is ON, the CR monitor speaker level will be attenuated
(DIM), muted (CUT), or nothing happens at all (DON'T CARE).
PFL CUT ON CH. ACTIVE If YES is selected, the signal of a channel is taken off the PFL bus when
the channel is ON, although the PFL function is active (the PFL function
remains active).
ON AIR INDICATION Three possibilities are available: ΣPROGRAM, ΣRECORD, or ΣPROG-
RAM AND ΣRECORD.
The ON-AIR signaling is only active if at least one channel is ON, if this
channel's fader is open, and if this channel is assigned to the selected bus
(ΣPROGRAM, ΣRECORD, or either of them).
In automation operation, ON-AIR is indicated in the input selection field
of the channel selected by the automation system. FADERSTATUS is ON-
AIR if the input is assigned to the selected bus (ΣPROGRAM, ΣRECORD,
or either of them).
KEY FUNCTIONS Functions of the channel keys labeled ON and OFF.
The ON key either switches the channel ON or has an ON/OFF toggle
function, depending on the function selected for the OFF key.
