15.10 Digital Output Module 1.942.124.xx
Each digital output module delivers two independent AES/EBU output
signals. The most important C-bits (Professional, Audio, Emphasis, Sam-
pling rate, Stereo) are set by the host controller. The output sampling rate
is that of the console.
A pair of XLR connectors with separate signal drivers are provided for
each of the two AES/EBU output signals.
The output signal selection is performed on the PCB by means of jumpers;
refer to chapter 16.6.

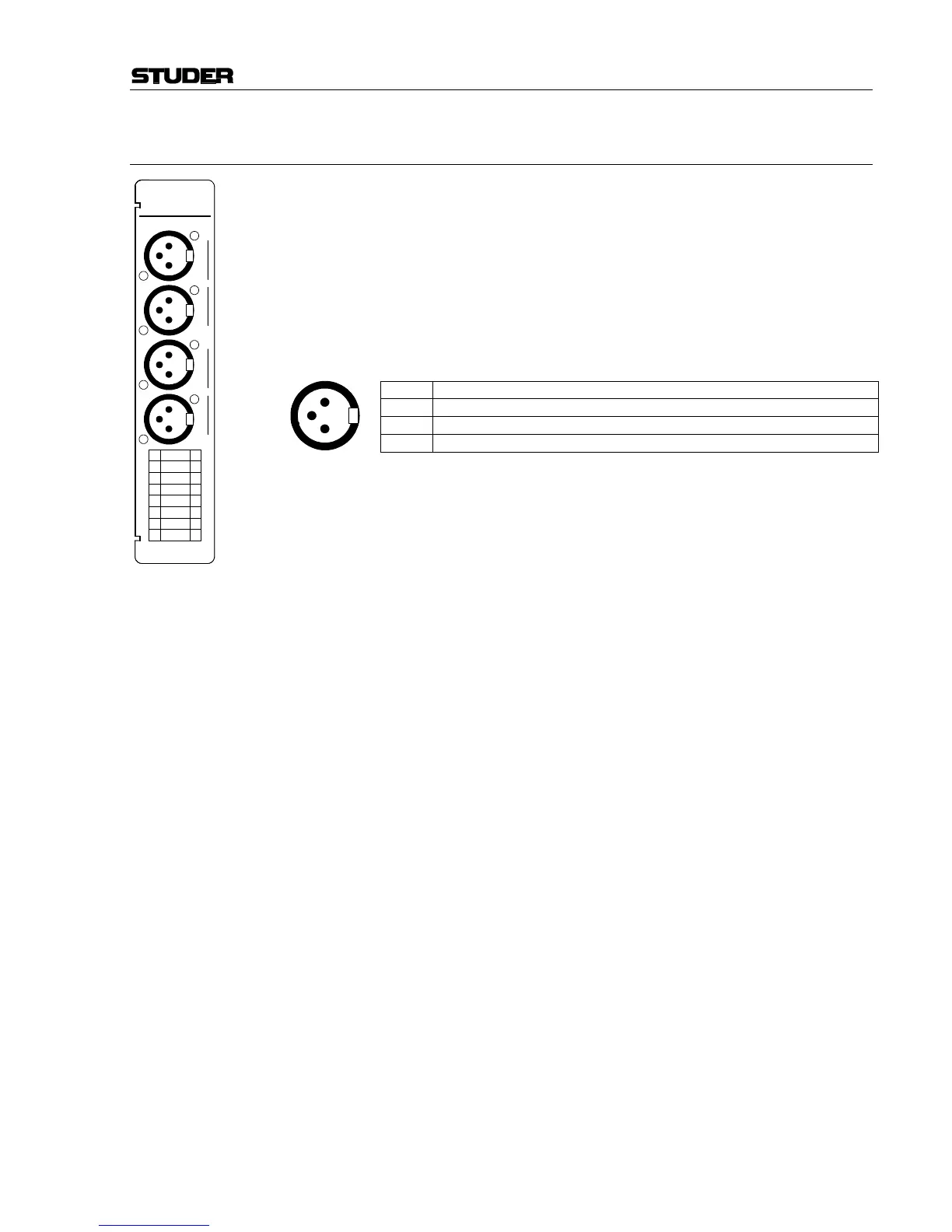

Pin Assignment: AES/EBU outputs A/B (XLR, 3pin, male):
Pin Signal
1 Chassis
2 Output +
3 Output –
C-Bits: The abovementioned C-bits are set as follows:
Professional: PRO
Audio: AUDIO
Emphasis: NO EMPHASIS
Stereo: depending on output configuration
Sampling rate: According to the internal sampling rate measurement.
3
1
2
1
3
2
3
1
2
DIGITAL OUT
A
B
PGM
REC
AUD
AUX 1
AUX 2
(N–1) A
(N–1) B
A B
3
1
2
3
1
2
