5.8 Routing

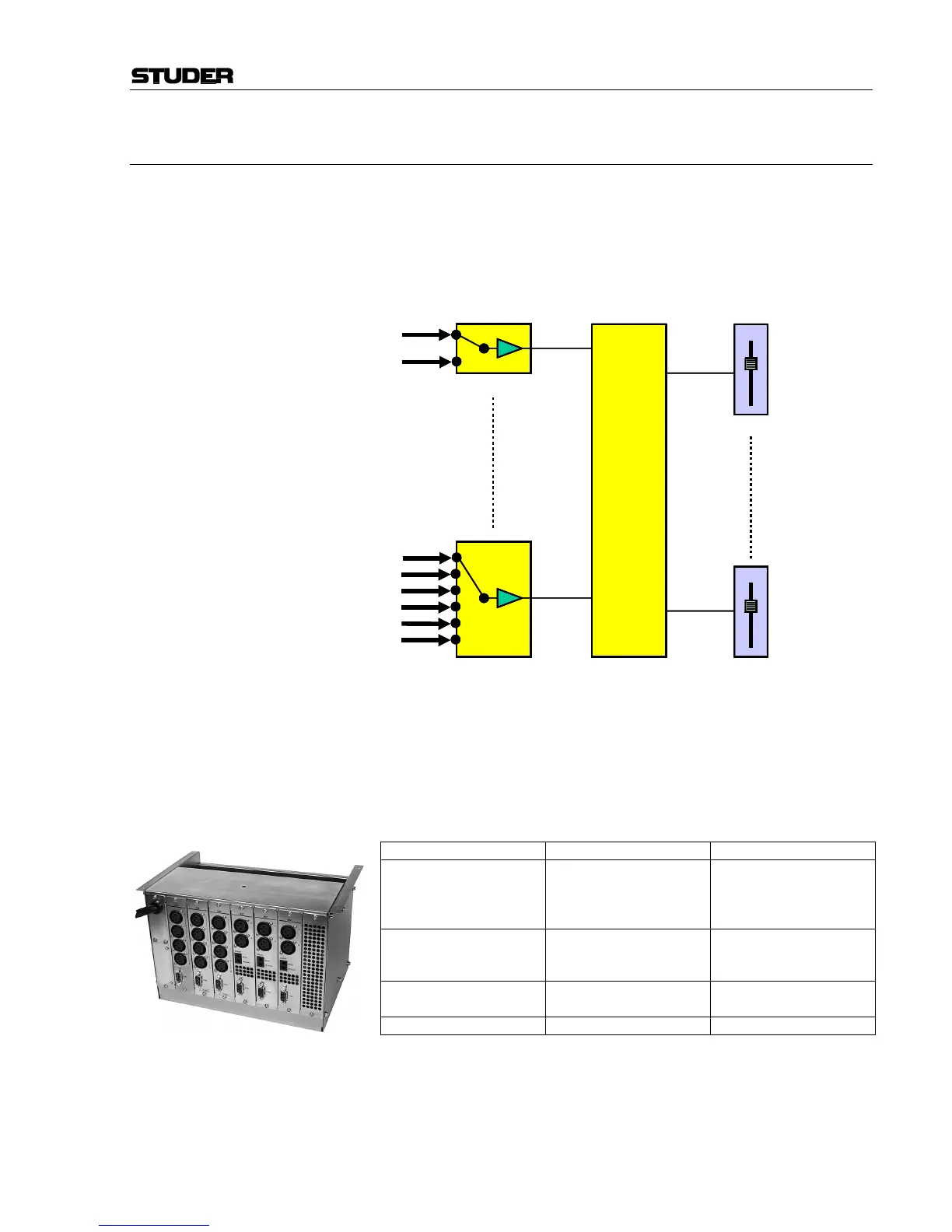

The OnAir 2000M2 features a channel router that allows to route the out-
put of any input module (including the complete parameter set, as stereo
mode, gain, filter, sends, bus assignment) to any fader strip. Please note
that the inputs of the same input module cannot be assigned to different
fader strips, as the input selector switch is located before the preamplifier.
An input module signal cannot be routed to more than one fader strip.
The console can be equipped with 6, 12, 18, or 24 fader strips (1...4 fader
modules) and with the same number of input modules (with A/B inputs or
hex inputs) installed in the console. The Input Module Extension Box
(optionally available) allows to increase the number of input modules for
smaller console versions.
The following combinations are allowed:
No. of Fader Strips No. of Input Modules No. of Extension Boxes
6
6
6
6
6
12
18
24
–
1
2
3
12
12
12
12
18
24
–
1
2
18
18
18
24
–
1
24 24 –
The maximum number of input signals is 64, which means that up to
twenty input modules (with A/B switching) plus four hex input modules
can be installed, regardless of the number of fader strips.
6 / 12 / 18 / 24
1
Input Modules
A
B
C
D
E
F
1
#
B
A
Channel Router Fader Strips
(up to) 24
