5.14 Master Fader for PGM and REC Outputs
Any of the installed faders can be configured as master fader(s) for the
program and/or the record bus. This selection is performed in the
CHANNEL ROUTING page. Instead of a physical input module, either the
PGM Master or the REC Master is assigned to a fader (also refer to chap-
ter 5.8).
The corresponding input channel can still be used, however it is routed “to
the background”, i.e. without any means for direct control on the operating
surface. Any input channel not being on the surface can be switched on or
off in the ON/OFF page (access located alternating with the HOME field).
External MUTE and Monitora control for the channel is still available. In
such a case, this channel may also be used as a talkback mic input channel;
please note that the TB SOURCE parameter of this input must then be set
to “CR” in the INPUT CONFIG. page.
Specifications: • In the audio path, the master fader(s) is/are located before the insert points
(also refer to the block diagram in chapter 1); if an insert is assigned to the
master channel, a small “Ix” window is indicated next to the master chan-
nel label; it is highlighted if the insert is ON.
• No ON/OFF function is available for the master buses;
• PFL function is available;
• Overload indication is available;
• Master level can be controlled by Monitora extended commands;
• Signaling (ON-AIR, CR-MIC, and STUDIO-MIC), as well as CR/Studio
CUT/DIM, and input selection are logically linked to the master faders.

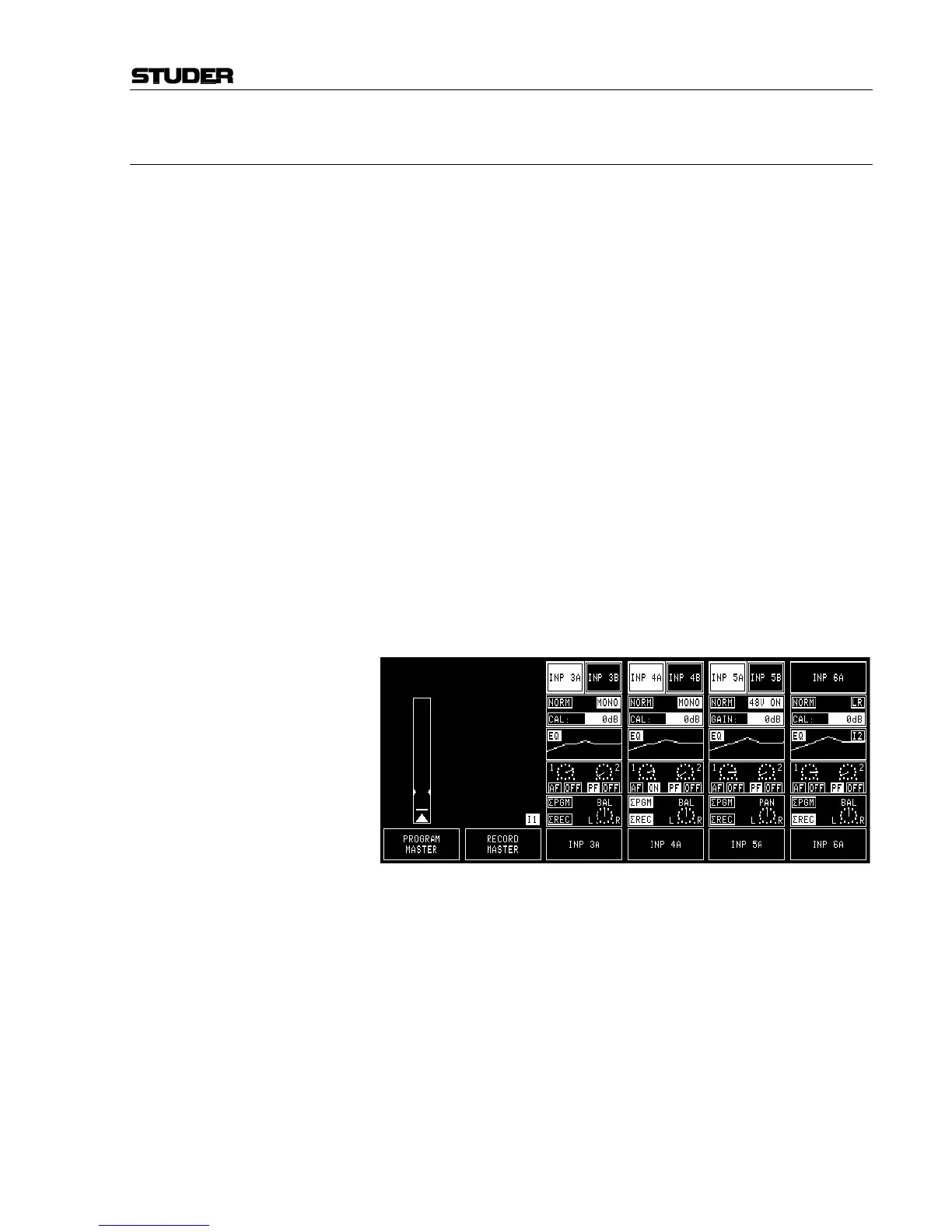

Corresponding Channel Screen:
