OnAir 2000M2 Digital Mixing Console
5-20 Master Functions SW V 4.0 Date printed: 12.11.03
5.10.2 Admin Selection of Snapshots/Mic Settings/Channel Routings
The system administrator can display and modify the private snapshot, mic
setting, and channel routing data of any user.
This feature has been implemented in order to enable the setting of pa-
rameters in a private snapshot, mic setting, or channel routing to which the
particular user has no access. All actions, such as RECALL FROM MEM-
ORY, SAVE (to) MEM, DELETE (from) MEM, LOAD FROM CARD,
SAVE (to) CARD, and DELETE (from) CARD, concern the selected
user's data. No other actions on the console can be affected.

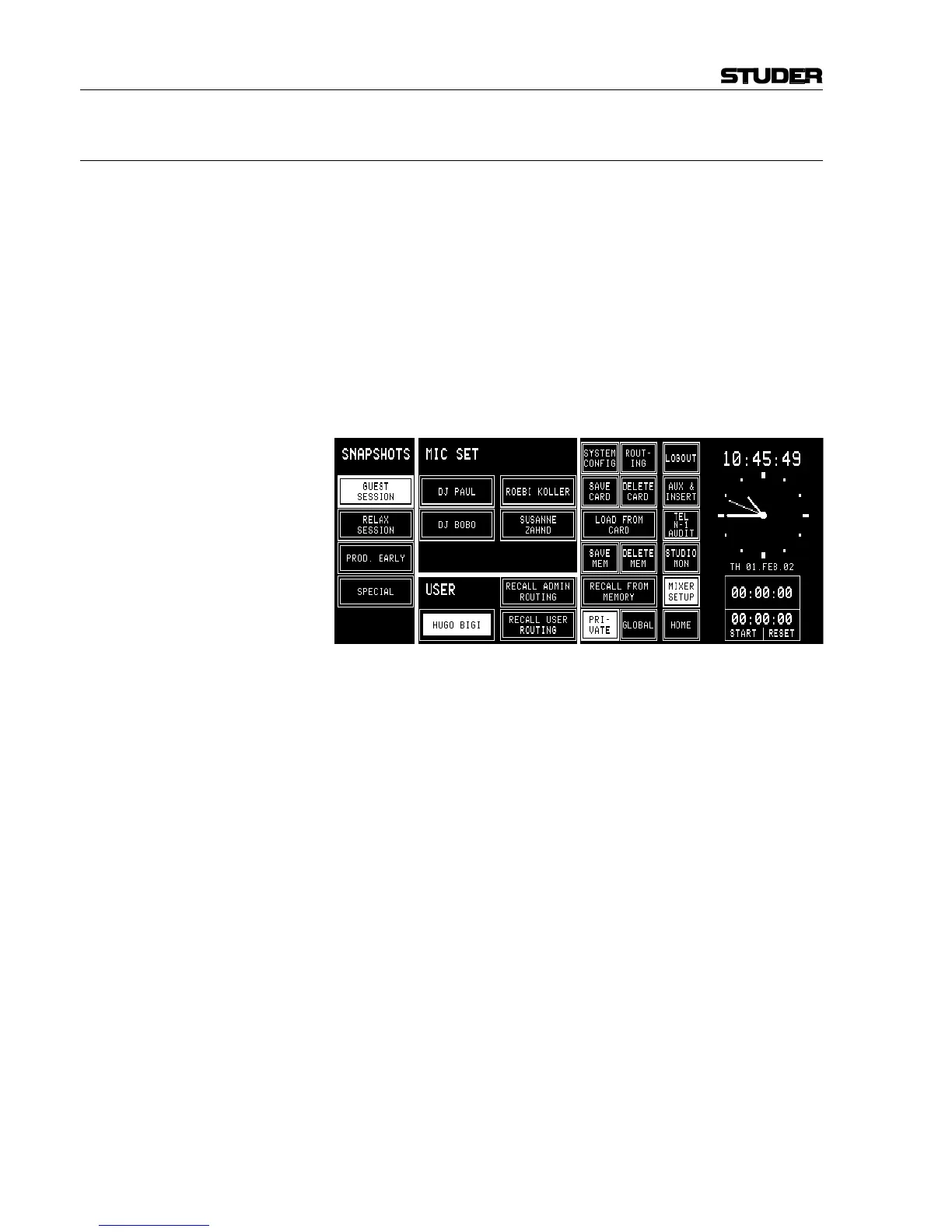

Snapshots and Mic Settings: After selecting PRIVATE in the Mixer Setup page, the second rotary en-
coder from the left (the one below the user’s name label) allows to select
the user's name. In this mode the system administrator can LOAD,
RECALL, SAVE, or DELETE all the data being displayed.
Channel Routing: With RECALL USER ROUTING, the system administrator can activate
the user channel routing of the user selected with the rotary encoder. With
RECALL ADMIN ROUTING he activates his own user channel routing.
The procedure for changing a user's channel routing is as follows:
• Log-in as administrator,
• touch MIXER SETUP,
• SYSTEM CONFIG,
• USER ADMIN,
• select the desired user,
• touch EDIT,
• SET CHANNEL ROUTING,
• modify the channel routing,
• touch BACK,
• SAVE,
• EXIT.
