12.2.1 Input

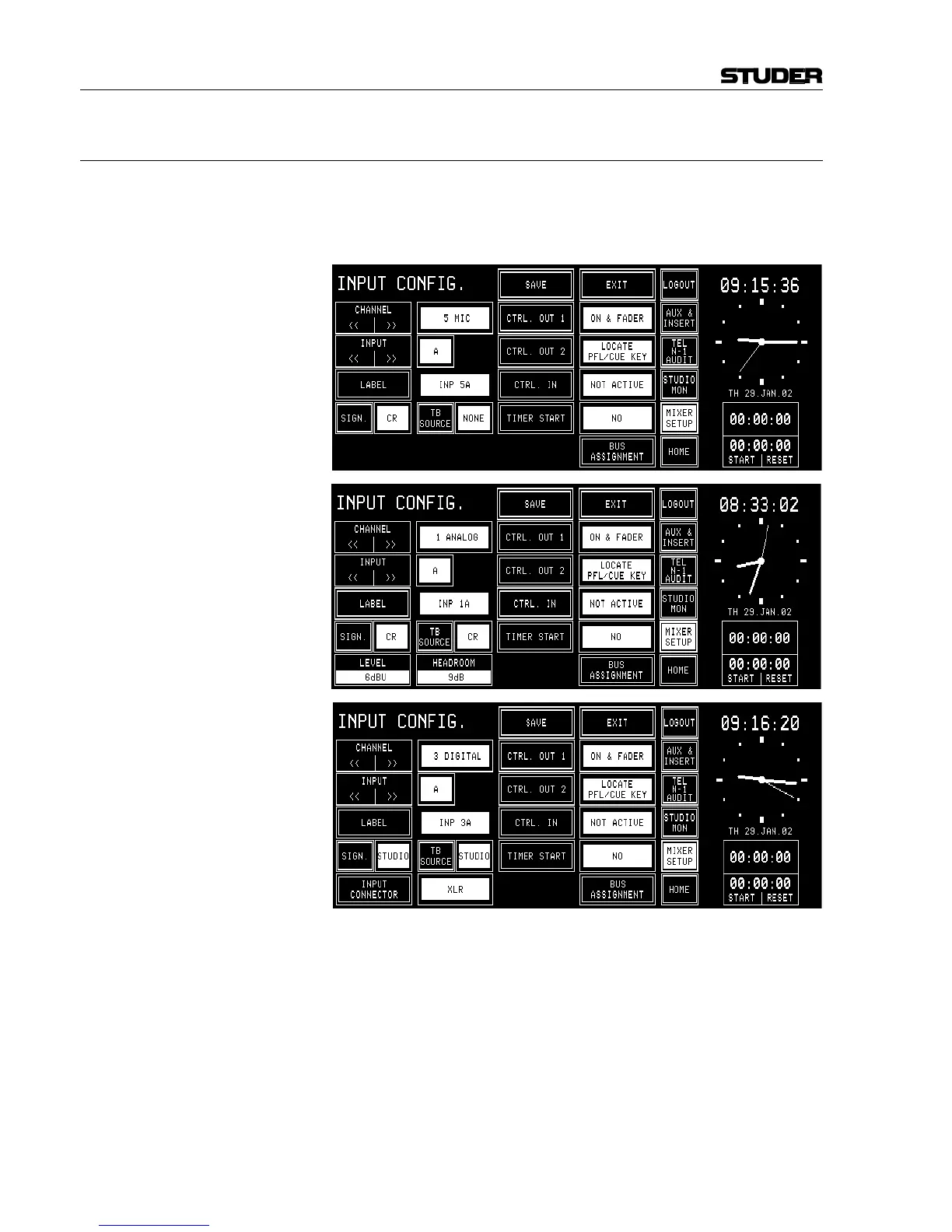

There are three slightly different INPUT CONFIG. pages for editing input
configurations, depending on the type of input module identified by the
hardware. The pages for microphone, analog line, and digital line inputs
are shown below.
Microphone Input
Analog Line Input
Digital Input
Channel and input are selected with the CHANNEL and INPUT forward
(>>) and backward (<<) fields. Channel and input can also be selected by
touching the Label field on the channel screen. The display will show the
current configuration data for the selected input and channel. To change a
parameter, the corresponding field must be touched; it will change to the
next possible value. Consecutive touching toggles through all the options.
Exceptions: Touching the LABEL field will open the KEYBOARD page where an
input label can be edited. The values in the LEVEL and HEADROOM
fields (analog line inputs only) can be adjusted with the rotary encoders
next to these fields. Touching BUS ASSIGNMENT opens the BUS
ASSIGNMENT page where the channel routing to all N–1 and to the
AUDIT buses is performed.
