OnAir 2000M2 Digital Mixing Console
Date printed: 12.11.03 SW V 4.0 Automation 10-1
10 AUTOMATION
10.1 Introduction
The OnAir 2000M2 supports external CAB (computer-assisted broadcast-
ing) systems. Starting with software version V3.04, also a serial interface
(RS232/RS422) can be used for communication with the CAB system.
Studer DigiMedia System: Information on how to connect and operate the OnAir 2000M2 mixing
console with a DigiMedia CAB system is given in the current DigiMedia
operating instructions.
The serial interface protocol is based on the “Schnittstellen-Spezi-
fikationen Regiepult” of DSA (Digitale Steuerungs- und Automations-
technik, Thomas Volgmann) furthermore called [MONPROT], which was
defined by VCS and Siemens.
The implementation in the OnAir 2000M2 is a subset of [MONPROT].
For detailed information on the telegrams implemented in the OnAir
2000M2, please refer to the “Communication Protocol for Broadcast
Automation” document [BCACOM] (available on request).
10.2 Features of the OnAir 2000M2 CAB Support
• Serial interface: Serial RS232/RS422 standard communication interface
based on [MONPROT].
• 2 x 12 character text display per channel.

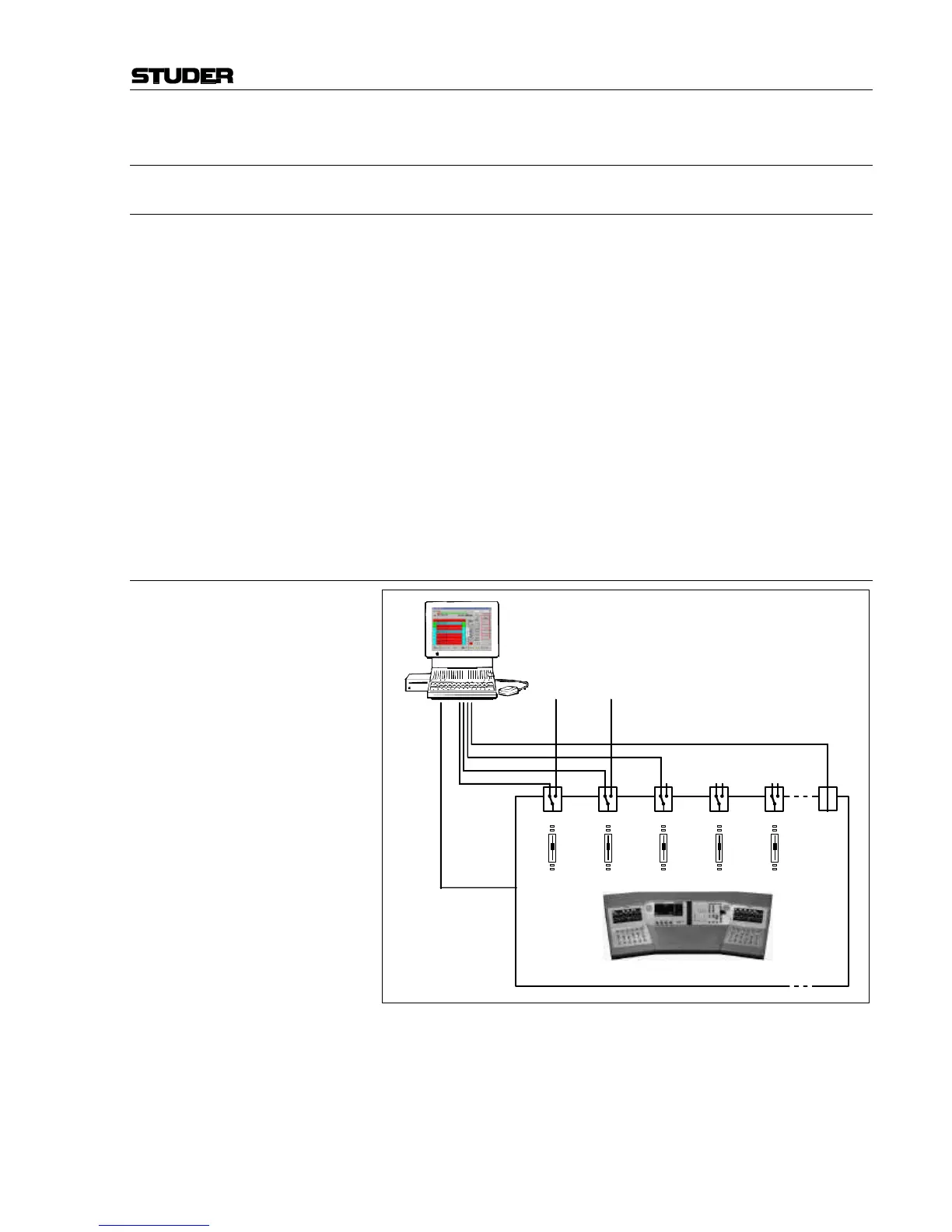

• Music and speech output:
The CAB can control the output assignment (program/record bus) of the
currently selected input of a channel.
Output 3
Pre-Listening
Output 2
[MONPROT]
News 1
Output 1
Channel A Channel B Channel C
OnAir Console
Ext. PFL
Input
News 2
