ministration table, his name is DEFAULT USER. The access permissions
of this user can be edited. His record cannot, however, be deleted, and no
password can be defined for him.
5.2 AUX and Insert Control

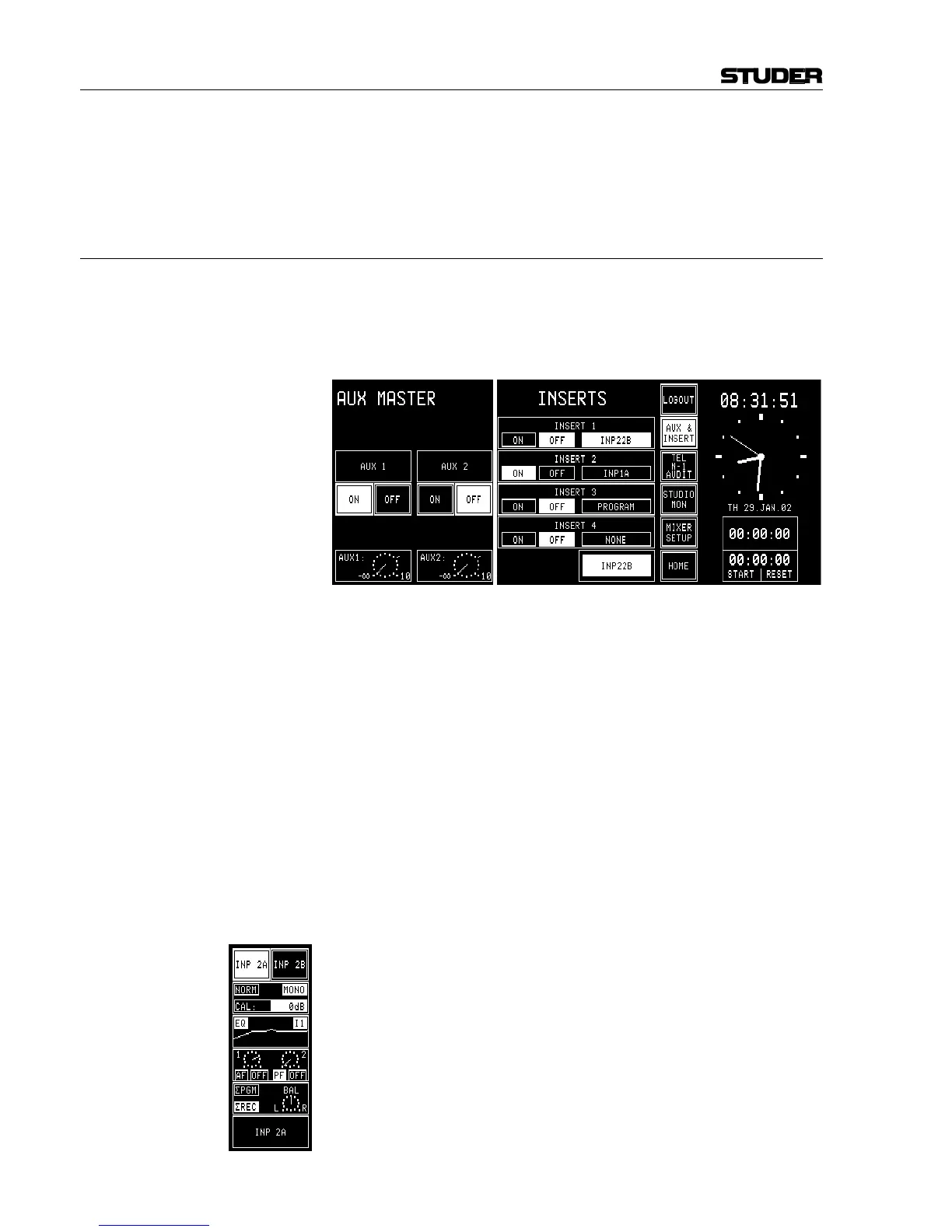

The AUX MASTER/INSERTS page is entered by touching the AUX &
INSERT field on the central control screen.
If the user has no access permission for the AUX and/or insert parameters,
there will appear a text next to AUX MASTER and/or INSERTS, telling
the user that he cannot modify the parameters.
AUX MASTER: The two rotary encoders below the AUX 1 and AUX 2 gain indication
symbols are used to adjust the desired level of the corresponding AUX
master. The gain can be adjusted in a range of –∞ to +10 dB; the 0 dB po-
sition is marked with a dash.
ON/OFF selection of the AUX master buses is done by touching the corre-
sponding fields on the screen. A highlighted background indicates the cur-
rent status.
The AUX 1 and AUX 2 gain indication symbols are always displayed,
even if no output module is installed for AUX 1 and/or AUX 2.
INSERTS: On the same page, the four insert points can be assigned. Assignment is
possible to any of the following signals:
• Input CH1 to input CH24,
• PROGRAM bus,
• RECORD bus,
• Talkback to Studio and/or Control Room output (if an optional TB Mic
Input Module is installed within the console configuration),
• NONE.
An insert can only be assigned while it is set to OFF, by touching the
channel/bus label field of the insert box. The label field is highlighted and
can be changed with the rightmost rotary encoder. If the insert is set to
ON, the channel/bus label field cannot be highlighted, and the insert as-
signment cannot be changed.
When an insert is assigned to a channel, a small “Ix” symbol appears in the
EQ/Filter field of this fader strip's channel screen section; it is highlighted
if the insert is set to ON (see left).
The insert send always follows the setting as displayed on the screen; it
remains active while the insert is OFF. If the insert is switched ON, a
switchover from the internal connection to the insert return is performed.
