OnAir 2000M2 Digital Mixing Console
5-10 Master Functions SW V 4.0 Date printed: 12.11.03
5.7.2 Save a Mic Setting to Memory
Creating a mic setting means saving a set of equalizer and gain parameters
for a single microphone channel under a given name into the console's in-
ternal flash memory. This is done by first selecting the microphone chan-
nel to be stored, then touching a MIC SET field, followed by SAVE MEM.

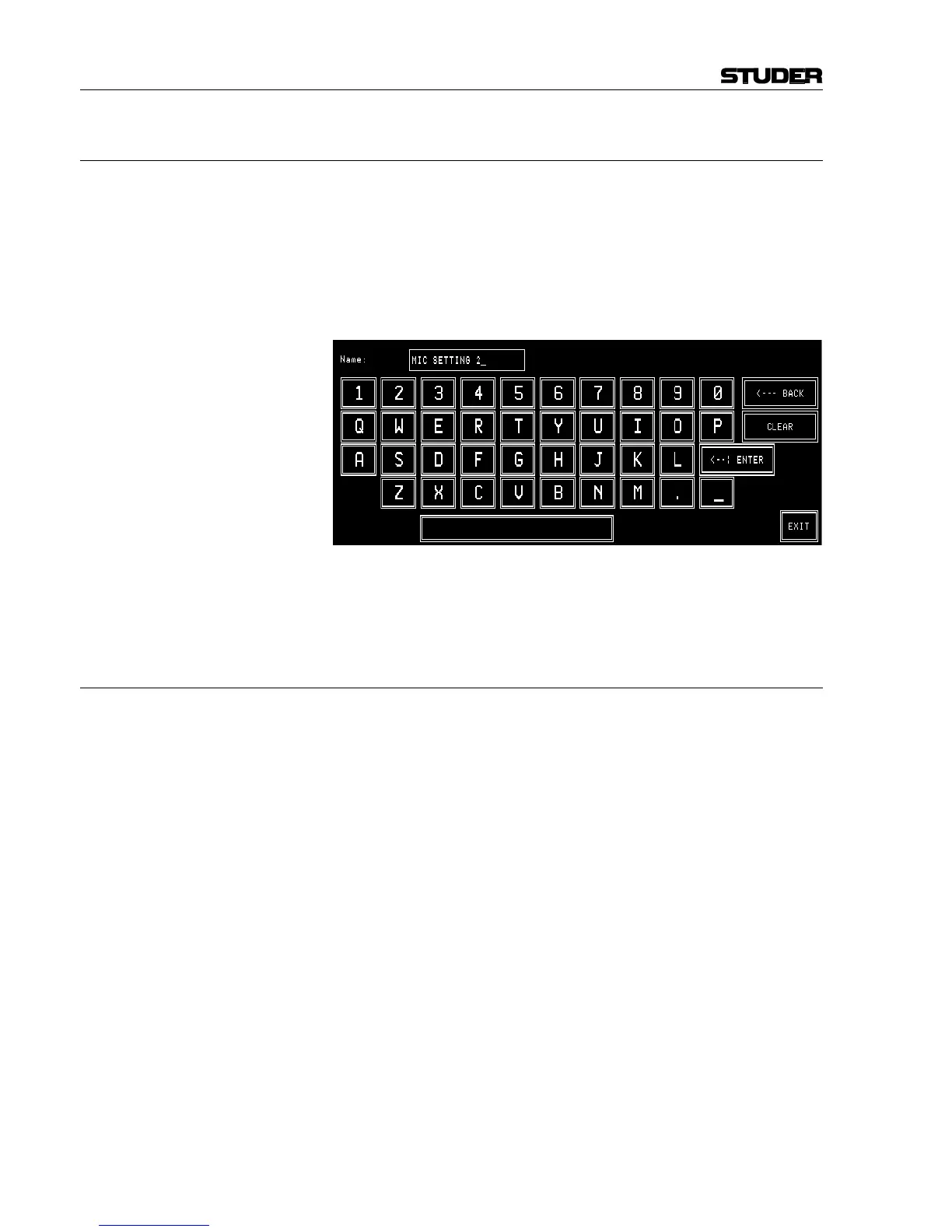

The keyboard page appears where the mic setting's name can be edited.
Any MIC SET field (also one of these that have already been used and
have a name assigned) can be selected. It will, however, be overwritten by
the new mic setting.
Now a new name can be generated, or the already present name can be
overwritten or edited. When touching <--¦ ENTER, the mic setting data
and its new name are saved.
5.7.3 Delete a Mic Setting from Memory
When saving a mic setting the previously stored data are overwritten. A
mic setting can be deleted, too, without overwriting it with new data.
For deleting a mic setting from the console's internal flash memory, the
desired mic setting has to be selected. The selected field is highlighted.
After touching the DELETE MEM field, a dialog box will appear. If it is
confirmed, the mic setting will be permanently removed from the memory,
and the text within the selected field is cleared.
