When loading data from the PC-Card, the console data will be overwritten.
Therefore this procedure has to be confirmed in a dialog box.
The EXIT field returns to the SYSTEM CONFIG. page.
A Configuration is loaded into the console by selecting CONFIG. DATA, LOAD FROM
PC-CARD, and EXECUTE. An error message is displayed if the configu-
ration cannot be loaded completely (e.g. Channel Type Mismatch).
Snapshots are loaded into the console by selecting GLOBAL (or PRIVATE) SNAP-
SHOTS, LOAD FROM PC-CARD, and EXECUTE. Snapshots existing in
the console will be overwritten.
Mic Settings are loaded into the console by selecting GLOBAL (or PRIVATE) MIC
SETS, LOAD FROM PC-CARD, and EXECUTE. Mic settings already
existing in the console will be overwritten.
Channel Routings are loaded into the console by selecting CHANNEL ROUTING, LOAD
FROM PC-CARD, and EXECUTE. Channel routings already existing in
the console will be overwritten.
12.2.9 System Synchronization

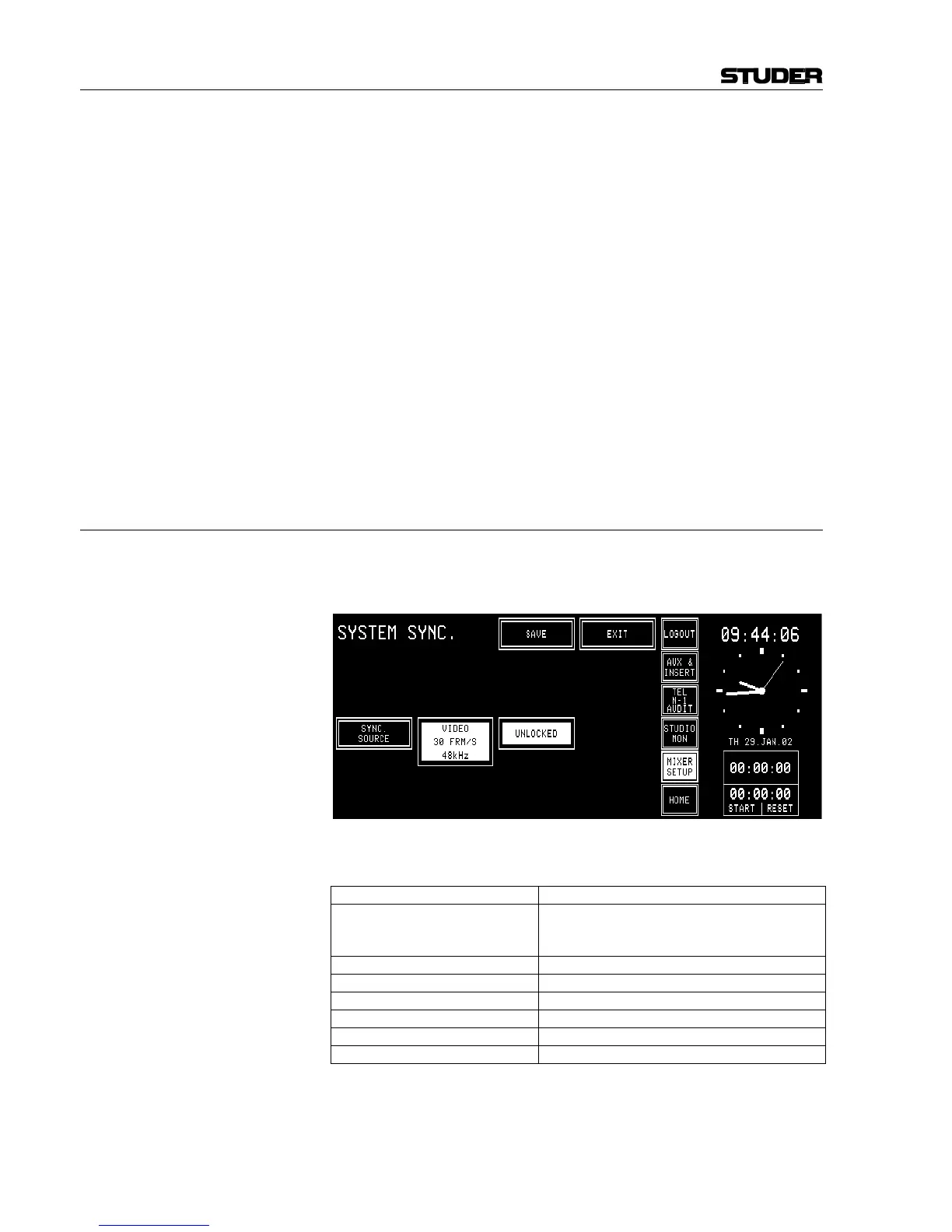

On this page the system synchronization is configured. The synchroniza-
tion source can be internal or external; for an external source, the sync sig-
nal type must be defined.
All possible sync modes are listed below. If the optional clock sync mod-
ule is not installed, only INTERNAL can be selected.
Sync source Sampling rate
INTERNAL 48 kHz 48 kHz ±100 ppm default, or
48 kHz, precision adjustable on sync module (if
installed); adjustment range approx. ±1000 ppm
WORDCLOCK 32/44.1/48 kHz 32/44.1/48 kHz
AES/EBU 32/44.1/48 kHz 32/44.1/48 kHz
VIDEO 25 FRM/S 48 kHz 48 kHz
VIDEO 30 FRM/S 48 kHz 48 kHz
VIDEO 29.97 FRM/S 47.952 kHz 47.952... kHz
VIDEO 29.97 FRM/S 48 kHz 48 kHz
