OnAir 2000M2 Digital Mixing Console
Date printed: 12.11.03 SW V 4.0 Monitoring 7-1
7 MONITORING
7.1 Control Room Monitoring
The CR monitoring source selector has 10 keys to select one out of six
internal and 4 analog external sources. The key of the selected source is
illuminated.
The F1 to F5 keys can act as additional “to all ...” talkback target selectors
(refer to chapter 7.3) or, if the optional Monitor Extension 1 is installed
and configured accordingly, as additional source selectors. F1 to F5 then
select two digital and three analog external sources. The functionality of
these keys is configured in the Monitor Expander screen.

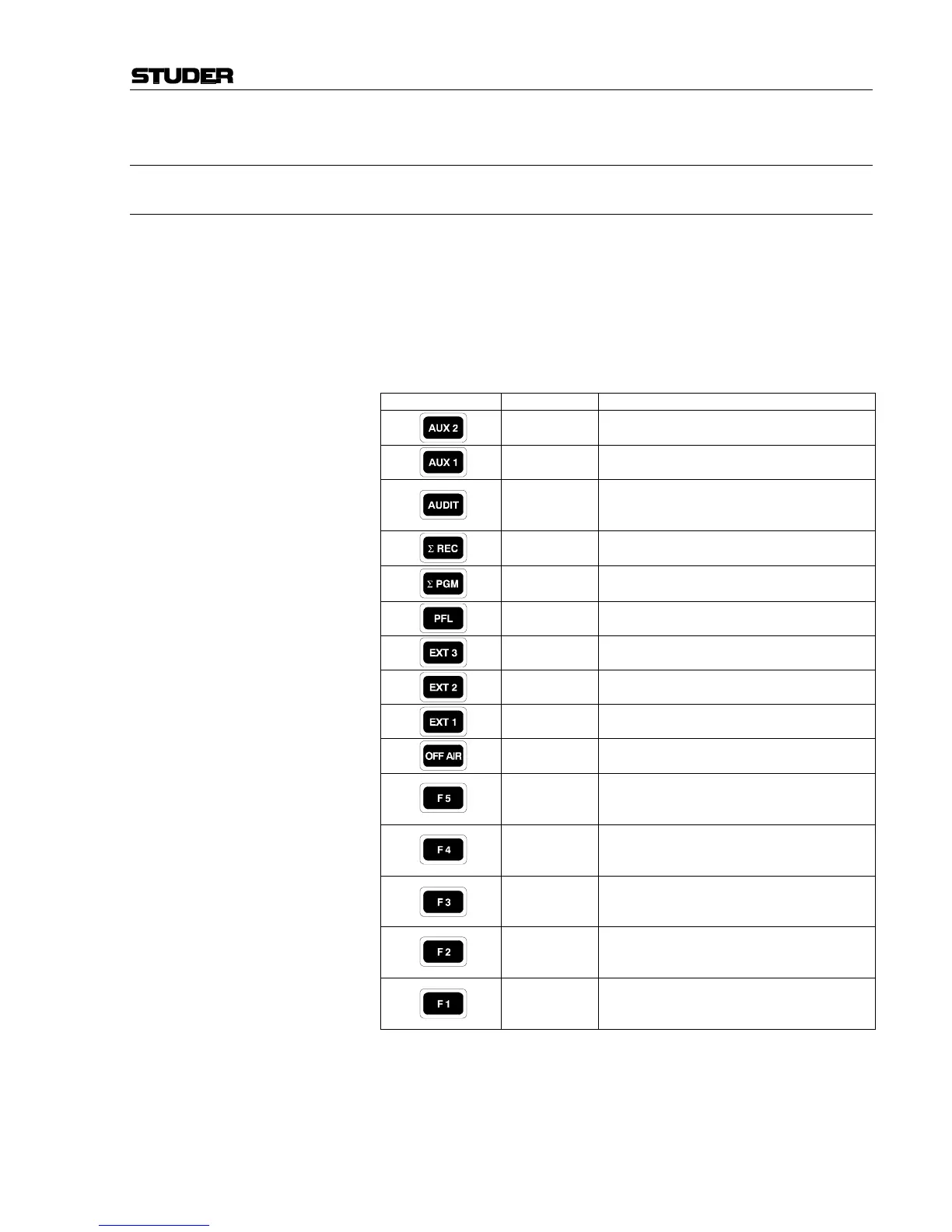

Key Source Description
Auxiliary 2
General purpose output bus. AUX2 is illuminated
if selected.
Auxiliary 1
General purpose output bus. AUX1 is illuminated
if selected.
Audition
General purpose output bus. The input channels
to the audition bus are configurable. AUDIT is
illuminated if selected.
Record output
Output signal of the record master output. SREC
is illuminated if selected.
Program output
(on-air)
Output signal of the on-air master output. SPGM
is illuminated if selected.
PFL PFL sum. PFL is illuminated if selected.
External 3
General purpose analog stereo input signal.
EXT3 is illuminated if selected.
External 2
General purpose analog stereo input signal.
EXT2 is illuminated if selected.
External 1
General purpose analog stereo input signal.
EXT1 is illuminated if selected.
Off-air
General purpose analog stereo input signal (e.g.
tuner). OFF AIR is illuminated if selected.
TB.../External 8*
TB target selector, or
General purpose digital (AES/EBU) stereo input
signal. F5 is illuminated if selected.
TB.../External 7*
TB target selector, or
General purpose digital (AES/EBU) stereo input
signal. F4 is illuminated if selected.
TB.../External 6*
TB target selector, or
General purpose analog stereo input signal.
F3 is illuminated if selected.
TB.../External 5*
TB target selector, or
General purpose analog stereo input signal.
F2 is illuminated if selected.
TB.../External 4*
TB target selector, or
General purpose analog stereo input signal.
F1 is illuminated if selected.
* see Talkback, chapter 7.3, and Monitor Expander module configuration,
chapter 12.2.11.
