Studer OnAir 2000M2 User Manual

OnAir 2000M2 Digital Mixing Console
3-6 Operating Concept SW V 4.0 Date printed: 12.11.03

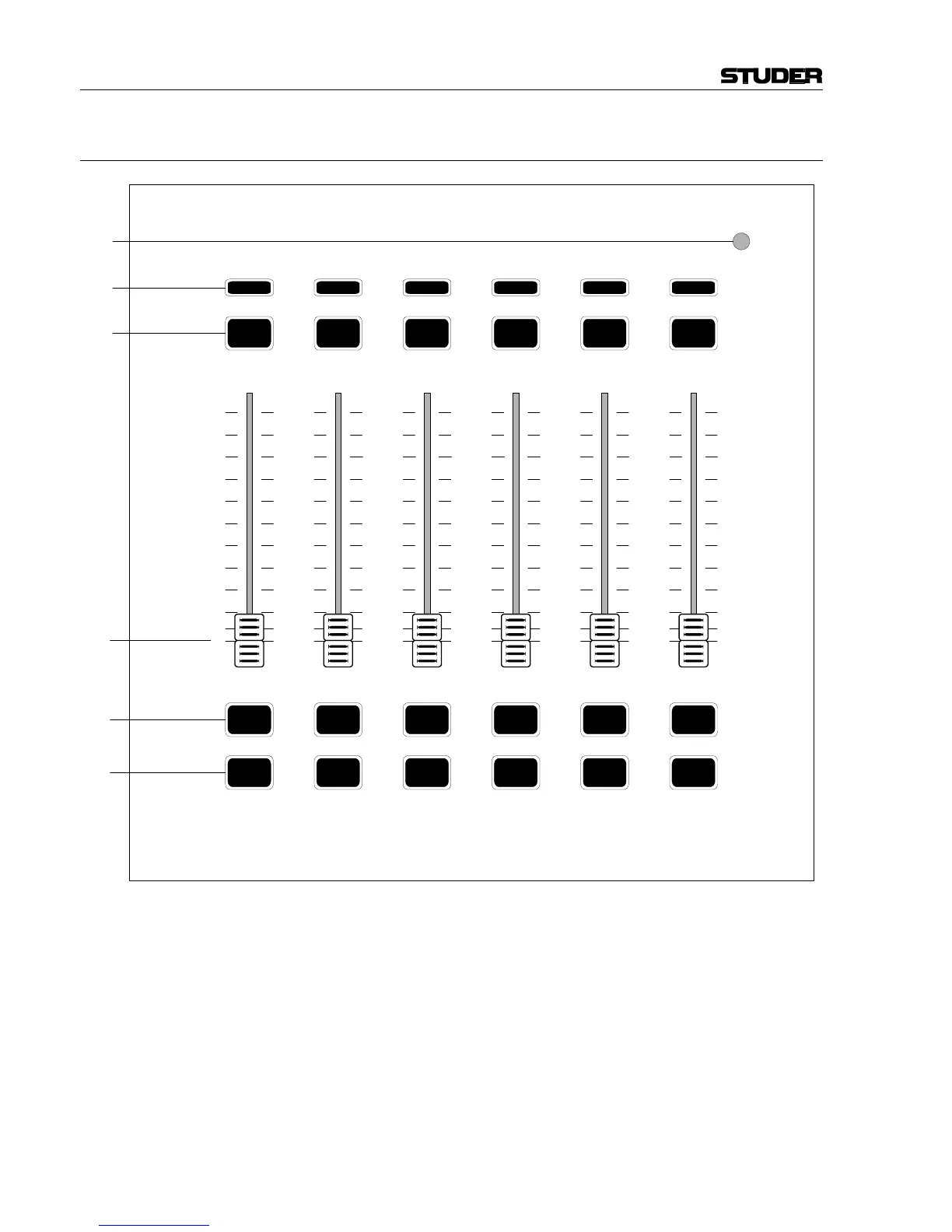

3.1.5 Fader Units
[1] OFF (“key no. 3”) Keys for deactivating or activating a channel. Can be reconfigured.
[2] ON (“key no. 2”) For details please refer to chapters 9 and 15.1.
[3] Linear Fader The audio path is fully digital, therefore the signal does not pass through
the fader; the stroke length is 104 mm. For details concerning fader start
control please refer to chapters 9, 14.3, and 15.1.
[4] PFL (“key no. 1”) Key for activating/deactivating the PFL (pre-fader listening) function.
[5] OVL Channel overload indicator.
[6] Contrast Knob For setting the contrast of the LC display located above the fader panel,
depending on the desired viewing angle and the ambient light conditions.
10
0
10
20
30
40
50
∞
60
OVL
PFL
ON
OFF
OVL
PFL
ON
OFF
OVL
PFL
ON
OFF
OVL
PFL
ON
OFF
OVL
PFL
ON
OFF
OVL
PFL
ON
OFF
10
0
10
20
30
40
50
∞
60
10
0
10
20
30
40
50
∞
60
10
0
10
20
30
40
50
∞
60
10
0
10
20
30
40
50
∞
60
10
0
10
20
30
40
50
∞
60
[1]
[2]
[3]
[4]
[5]
[6]
