OnAir 2000M2 Digital Mixing Console
Date printed: 28.10.2005 SW V 4.0 HW Modules 15-5
820 Ω
9 COMMON
max. 100 mA
10...15 CTRL IN A...F
10...15 CTRL OUT 1A...1F
1 +5 V SUPPLY
max. 100 mA
+5 V
8 GND
8 GND
CTRL IN
CTRL OUT
max. 100 mA
2...7 CTRL OUT 2A...2F
1 +5 V SUPPLY
max. 100 mA
+5 V

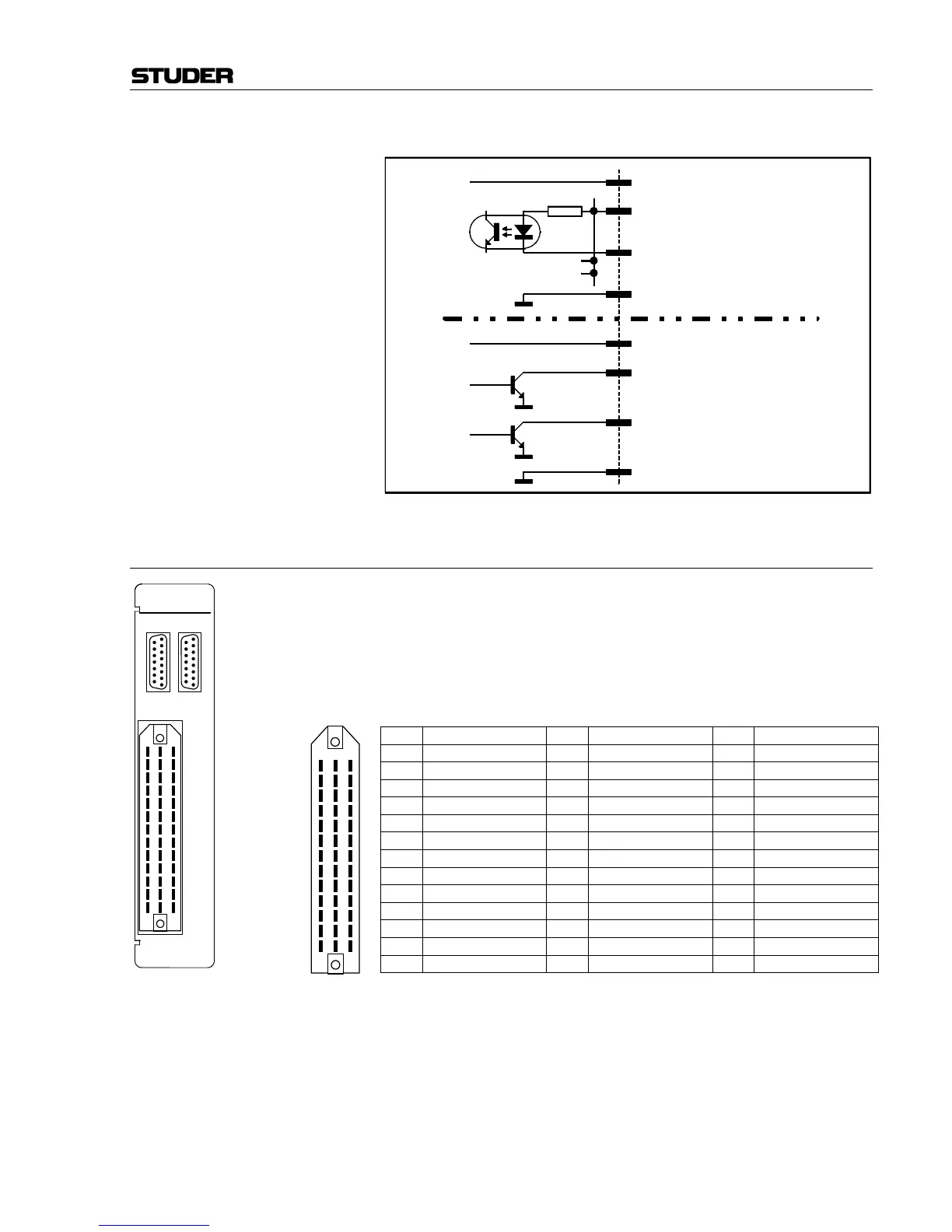

15.5 Digital Hex Input Module 1.942.250.xx (Option)
The digital hex input module has an input selector for six AES/EBU input
sources (A...F). All inputs A...F are equivalent.
The module address depends on the input channel number given to the
module and is set with a DIP switch; refer to chapter 16.1. Two modules
must not have the same address.
Pin Assignments: DIGITAL HEX INPUT (Siemens, 39pin, male):
Pin Signal Pin Signal Pin Signal
1A Input A + 1B Input A – 1C Chassis
2A Input B + 2B Input B – 2C Chassis
3A Input C + 3B Input C – 3C Chassis
4A Input D + 4B Input D – 4C Chassis
5A Input E + 5B Input E – 5C Chassis
6A Input F + 6B Input F – 6C Chassis
7A n.c. 7B n.c. 7C Chassis
8A n.c. 8B n.c. 8C Chassis
9A n.c. 9B n.c. 9C Chassis
10A n.c. 10B n.c. 10C Chassis
11A n.c. 11B n.c. 11C Chassis
12A n.c. 12B n.c. 12C Chassis
13A n.c. 13B n.c. 13C n.c.
The input impedance is 110 Ω. The input also accepts S/PDIF signals. A
240 Ω resistor in parallel to the input pins may be required to adjust the in-
put impedance to 75 Ω as defined by the S/PDIF standard.
CTRL IN (D-type, 15pin, male), CTRL OUT (D-type, 15pin, male):
Please refer to chapter 15.4.
C
1
A
2
3
4
5
6
7
8
9
10
11
12
13
B
DIGITAL IN
CTRL OUT CTRL IN
D
I
G
I
T
A
L
H
E
X
I
N
P
U
T
