OnAir 2000M2 Digital Mixing Console
Date printed: 12.11.03 SW V 4.0 Operating Concept 3-3

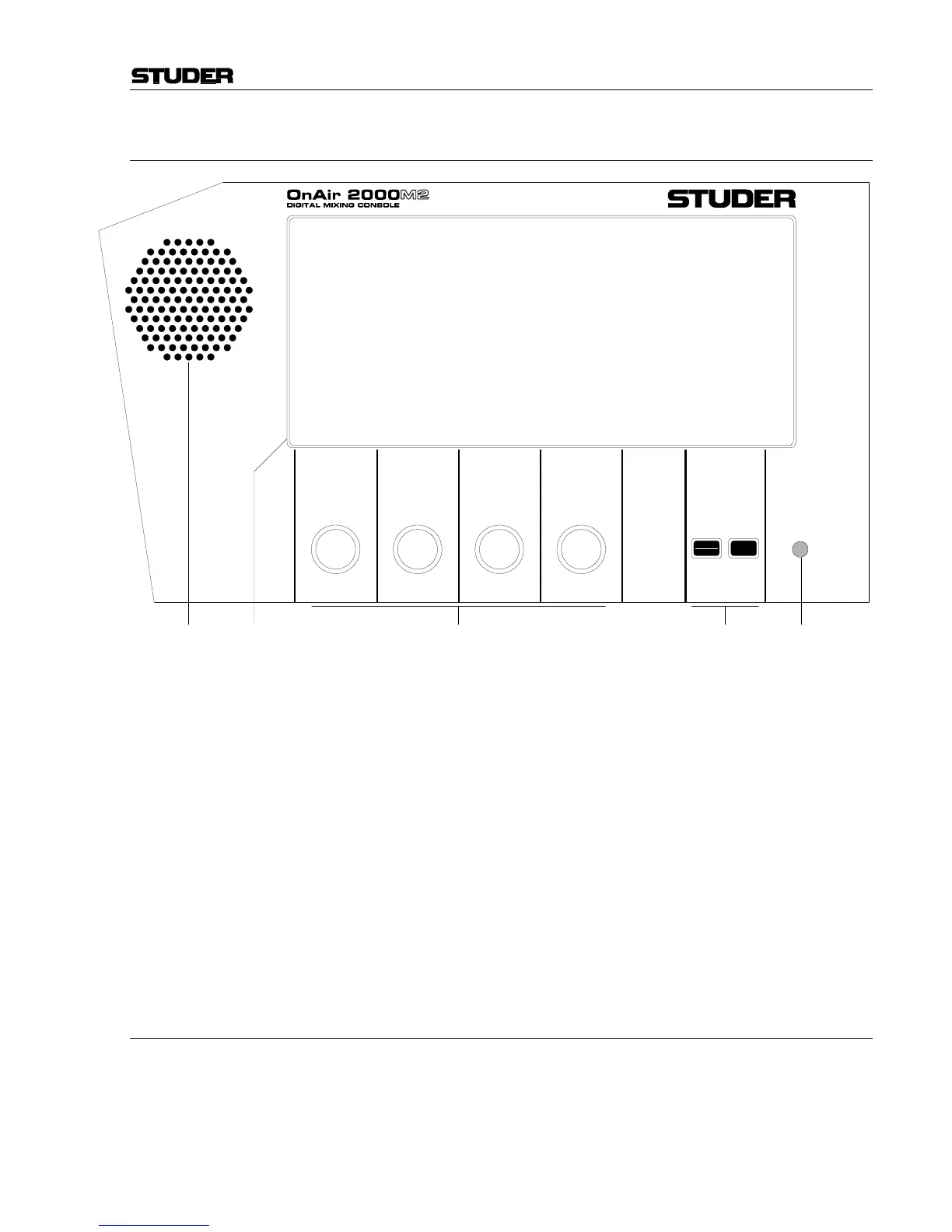

3.1.2 Central Section , Display Unit
[1] Central Touch-Screen The central touch-screen display is used for parameter entries (refer to
chapters 4, 5, 10, 12, and 13 for details) and displays the current time and
date in digital and analog formats (except when the keyboard or routing
pages are active). Besides, the fader stopwatch and the user stopwatch are
displayed.
[2] Rotary Encoders Depending on the current status, the rotary encoders are used for parameter
settings.
[3] Contrast Knob For setting the LC display contrast, depending on the desired viewing an-
gle and the ambient light conditions.
[4] User Stopwatch Control Keys to control the user stopwatch (lower). Refer to chapter 5.13.
[5] Loudspeaker for PFL and talkback signals.
3.1.3 Central Section, Meter Unit
The central meter section allows the installation of up to four 190 × 40 mm
meter modules. The level meters and/or groups of keys can be installed ac-
cording to the customer's specification. Therefore, no universally valid
statement can be given here.
START
STOP
RESET
[1][5] [2] [4] [3]
