OnAir 2000M2 Digital Mixing Console
Date printed: 12.11.03 SW V 4.0 Configuration 12-11
12.2.7 Software Update
More information on this subject can be found in chapter 13.
12.2.8 Console Dump
A “console dump” consists of configuration data (CONFIG. DATA), snap-
shots (global and private), mic settings (global and private), and channel
routings.
Formatting the PC-Card Before dumping any data, the PC-Card has to be formatted. This is done in
the console's PC-Card slot (or, if the console is equipped with two slots, in
the lower one, slot 0). Touch FORMAT followed by EXECUTE. A dialog
box appears where the user can confirm the formatting (i.e. erasing the
card completely). While formatting, the EXECUTE field flashes.

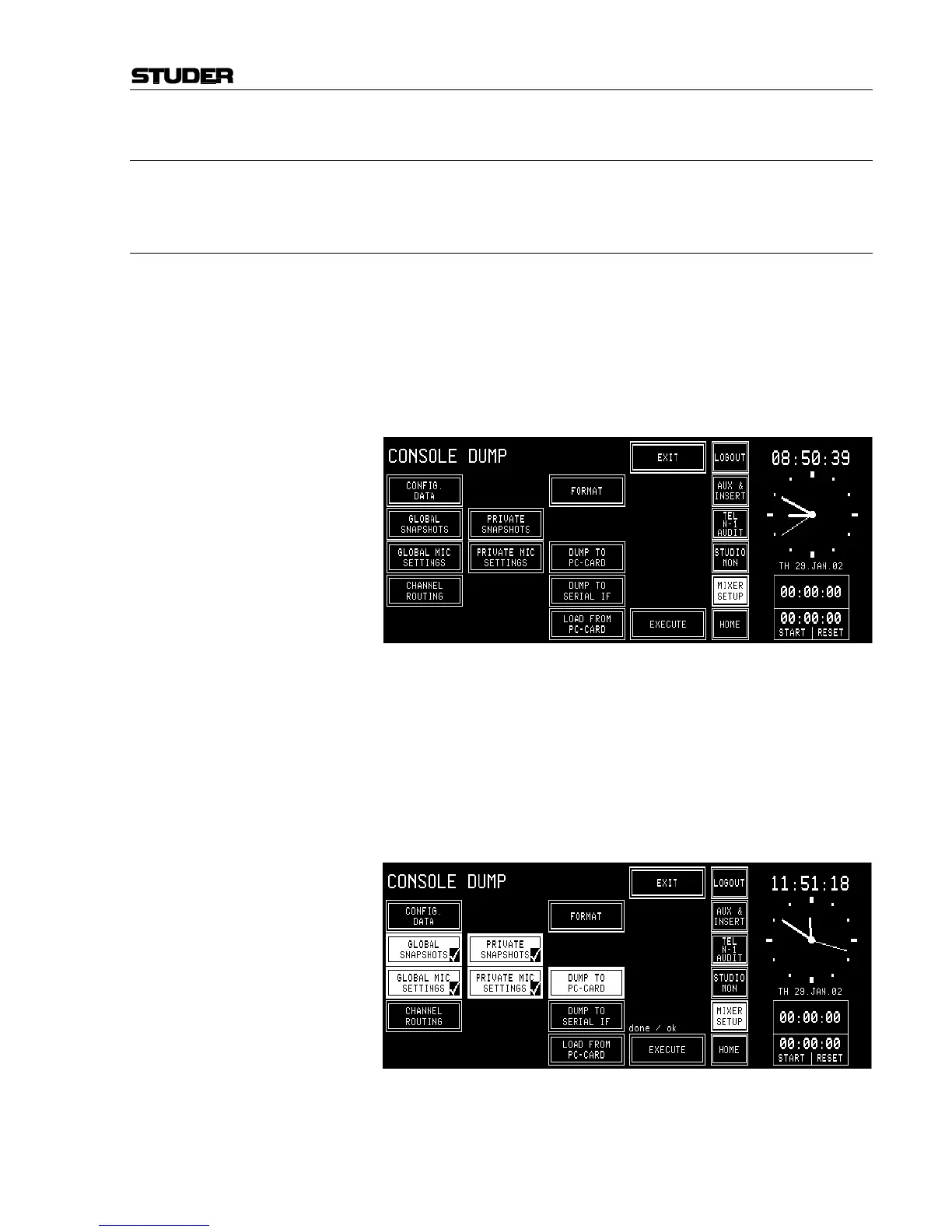

The CONSOLE DUMP page allows the user to save mixer setup data on a
PC-Card, to send them to the serial port, or to load mixer setup data from a
PC-Card. This feature can be used for back-up purposes, for copying data
from one console to another, or for diagnostics. A PC-Card can contain
one console dump only. It is possible to dump or to load the mixer setup
data completely or partially only. The selection is done with the CONFIG.
DATA, GLOBAL and PRIVATE SNAPSHOTS, GLOBAL and PRIVATE
MIC SETS, and CHANNEL ROUTING fields. The function can then be
selected with the fields in the center of the page and will be started by
touching the EXECUTE field.
A checkmark appears in the corresponding field when done, and “done /
ok” is displayed after the selected operation(s) have been successfully
completed, as shown above (or “done / error” if there is a problem).
