OnAir 2000M2 Digital Mixing Console
Date printed: 12.11.03 SW V 4.0 Diagnostics 14-7
14.3 System Test

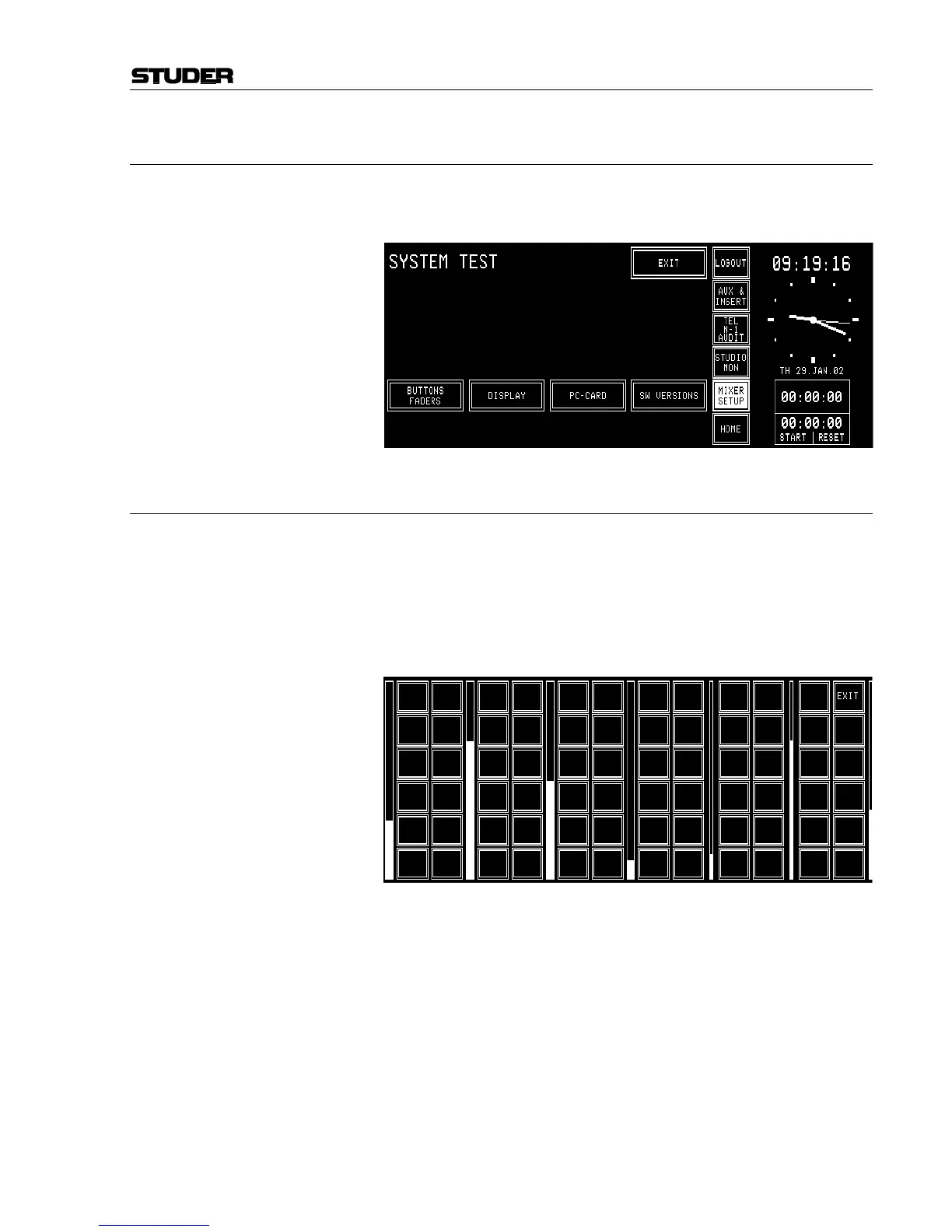

The system test can be activated by touching the SYSTEM TEST field on
the SYSTEM CONFIG. page. The SYSTEM TEST selection page appears
on the central screen:
14.3.1 Buttons/Faders Test
Selecting the BUTTONS/FADERS test brings the console into a mode
where the controls of the console can be checked. To return to the
SYSTEM TEST selection page, the EXIT field has to be touched.
Keys and Lamps Test: The PFL, ON, and OFF keys can be checked. If one of these keys is
pressed, the corresponding LED lights; if PFL is pressed, also the OVL
LED is on together with the LED in the PFL key.
Central Screen Test: If a field is touched on the central screen, it is highlighted.
Rotary Encoders Test: If the rotary encoder is turned clockwise, the bar graph next to the rotary
encoder increases. The three narrow bar graphs in the right-hand part of
the screen are used for the MON, PFL/TB, and PHONES knobs. The full
length of the bar graph corresponds to a complete turn of the rotary en-
coder.
To Next Page
