PAN/BAL Field: The PAN/BAL field gives an overview of the current panorama or balance
setting and shows the bus assignment. The output sum symbol (Σ) is high-
lighted if the channel is assigned to the program output (ΣPGM) or to the
recording output (ΣREC). The Channel Control page on the central control
screen is opened by touching the PAN/BAL field.
Source Label Field: The Source label field shows the name of the selected input channel.
“Next” Function: This function allows highlighting the source label of the channel that is the
next to go on-air. For this purpose, just touch the desired channel's source
label. Only one source label can be highlighted at a time. The tag is auto-
matically removed when the fader of this channel is opened while the
channel is ON. This function has no influence neither on control output
signals nor on the internal functionality of the console.

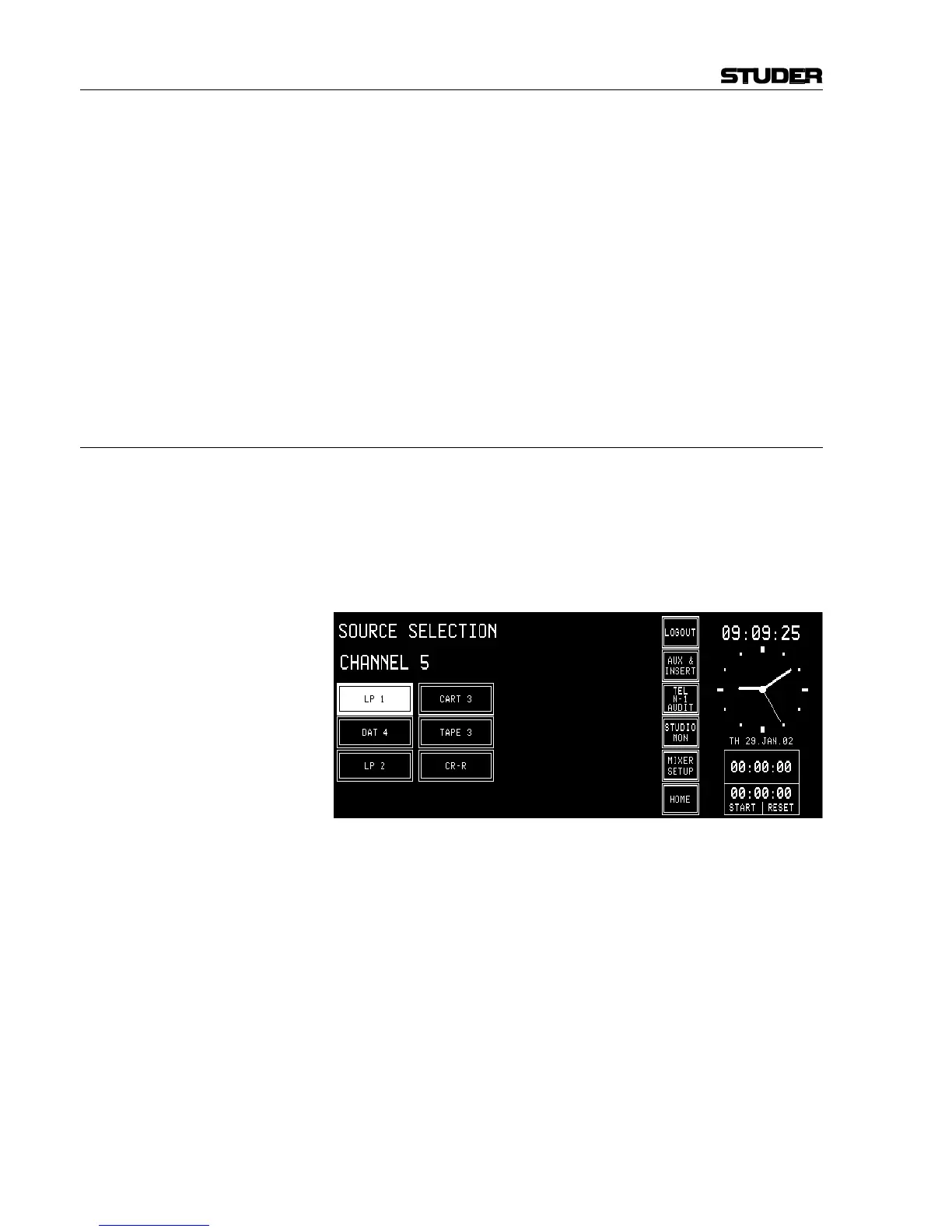

4.4.2 Multi-Source Selector Page
The SOURCE SELECTION page on the central control screen is opened
by touching the Input Selector field of a channel, provided the channel is
equipped with a hex-input module. On this page, one of the six inputs can
be selected and then becomes highlighted. The input name is shown on the
channel label field on the channel screen. The source selection page ap-
pears only if the hex input modules are configured for central selection
(i.e. Customer Code 0x00000001 is inactive).
