OnAir 2000M2 Digital Mixing Console
Date printed: 12.11.03 SW V 4.0 Channel Functions 4-5

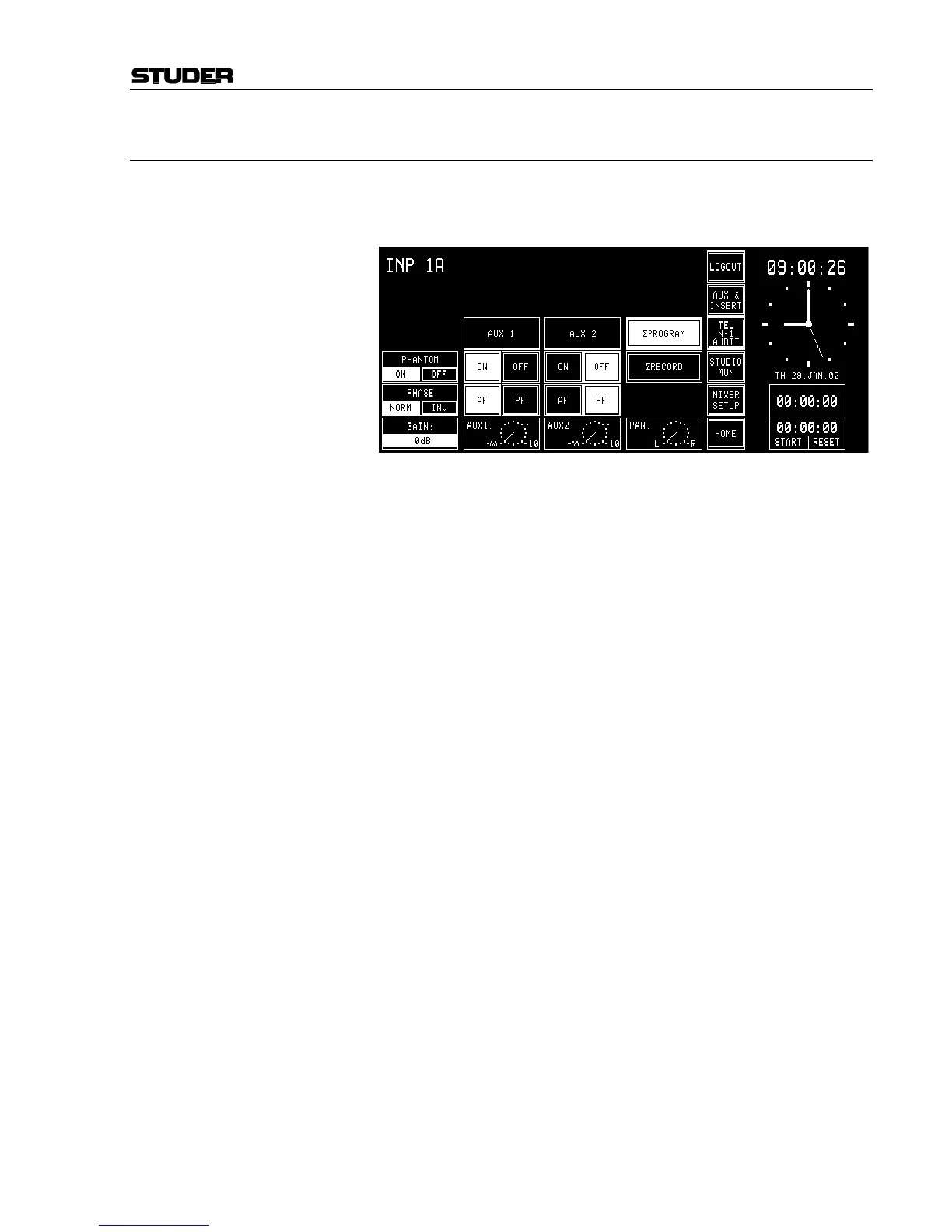

4.4.3 Channel Control Page, Microphone Input
The Channel Control page for a microphone input is opened if either the
AUX, the PAN, or the Input field on the channel screen is touched, pro-
vided that the selected input module is a mic input.
PHANTOM Touching the “ON” part of the PHANTOM field turns the 48 V phantom
power on; a touch on the “OFF” part of the field turns it off again. The
status is indicated by highlighting the corresponding field.
PHASE The phase of the microphone signal is inverted by touching the “INV” part
of the PHASE touch-screen field; “INV” is highlighted. Touching
“NORM” de-activates the phase inversion.
GAIN The microphone preamp's gain is set with the first rotary encoder (in a
–5...+75 dB range); the adjusted value is indicated in the GAIN field.
AUX 1 / AUX 2 The AUX 1/2 ON and OFF touch-screen fields route the channel signal to
the corresponding auxiliary bus, if “ON” is selected (and highlighted).
The AF/PF touch-screen fields allow selection whether the signal is taken
after- (AF) or pre-fader (PF). The current selections are highlighted.
The AUX levels (–∞...+10 dB; 0 dB position is marked with a dash) are
adjusted with the second and the third rotary encoder. The settings are
shown in the fields right above the rotary encoders as well as on the corre-
sponding symbols on the channel screen.
The output routing of this particular channel is performed with the
“ΣPROGRAM” and “ΣRECORD” touch-screen fields.
PAN The fourth rotary encoder positions the source within the stereo image, the
PAN (-ning) indicator shows the adjusted position.
