Takeuchi TL150 Workshop Manual

IV-131
HYDRAULIC UNITS
TRAVEL MOTOR

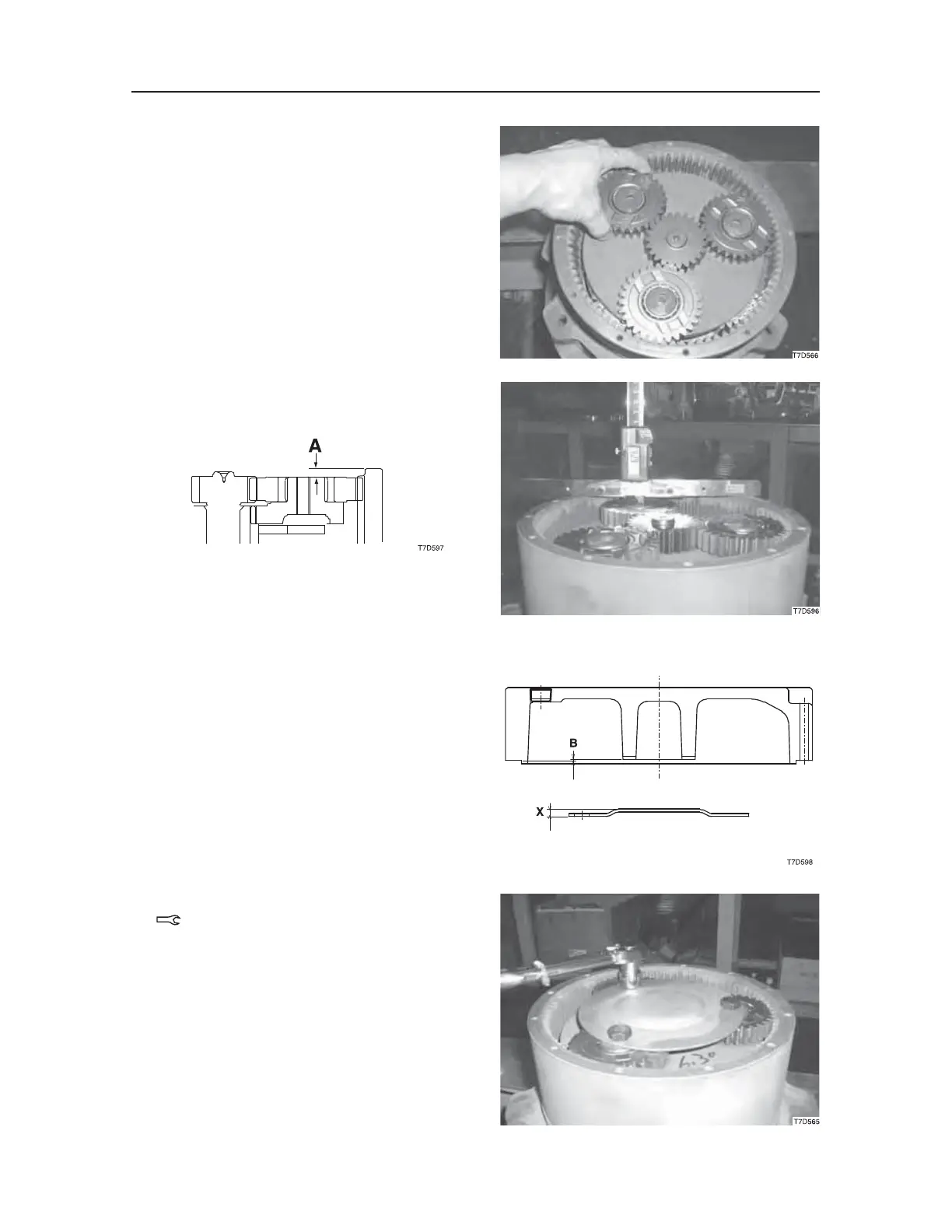

5. Install the planet gears (6) and the needle bear-
ings (14) on the carrier (3), and then install them
on the housing (1).
6. Install the sun gear (4).
7. Measure the depth “A” from the housing end
face to the holder (pin).
8. Measure the dimension “B” of the cover.
9. The thrust plate must be such that its thickness
“X” is 0.2 to 0.4 mm thinner than the thickness
of “A” plus “B” measured above.
10. Install the thrust plate (9) and fit the screws.
Bolt: 30 N·m
