Operating Modes (Reset → Active)

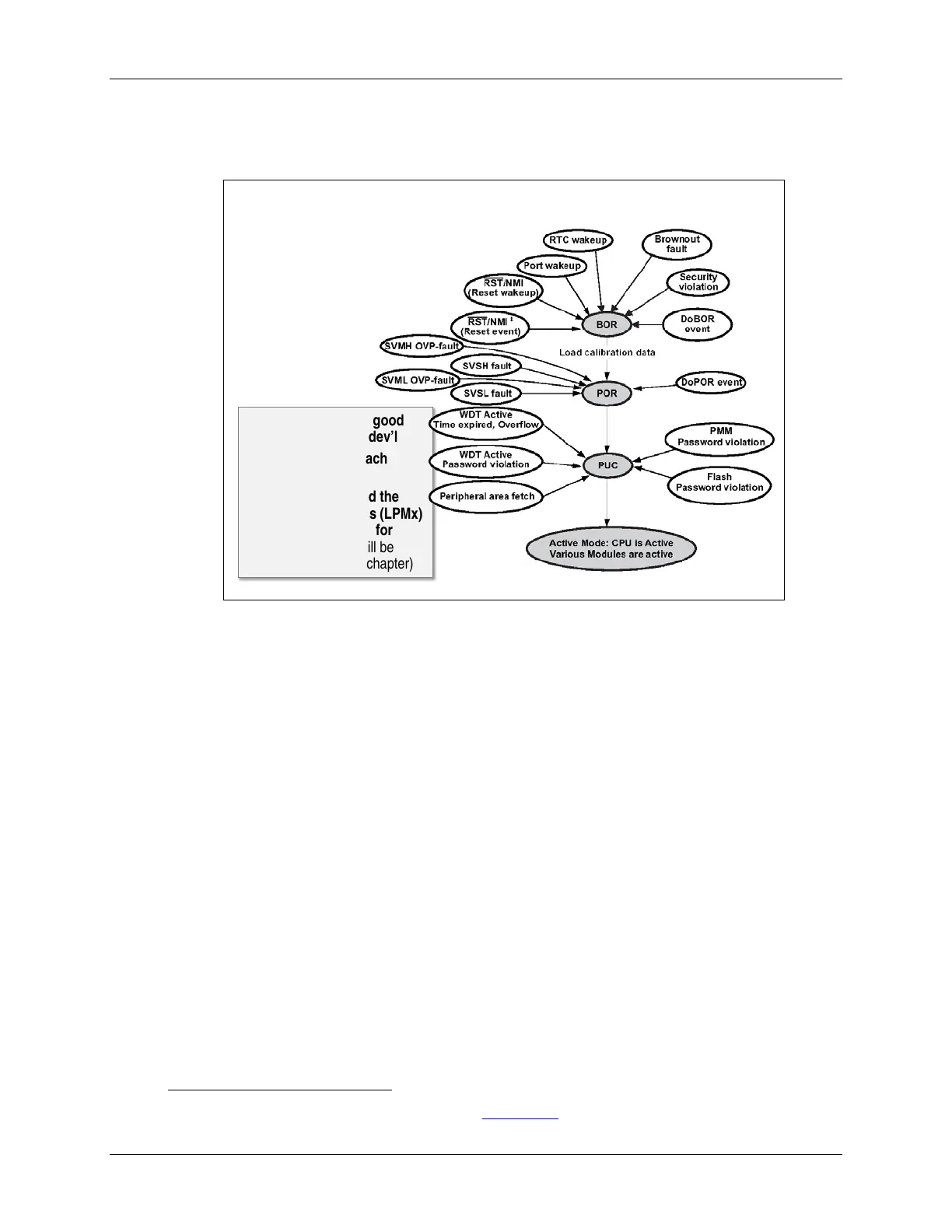

Here’s the full diagram showing the Reset and Active modes for the ‘F5529
1
. This shows all the
various events that direct the MSP430 CPU into its different Reset states. You can find a similar
diagram for each series of MSP430 processors.
Diagram makes a good
reference during dev’l
See diagram in each
User’s Guide
Note: We removed the
Low-Power Modes (LPMx)
from this diagram for
simplicity (they will be
discussed in later chapter)
MSP430F5529 Power-Up Modes
1
MSP430x5xx and MSP430x6xx Family User’s Guide, slau208m.pdf, (Texas Instruments, 2013) pg. 63
