Texas Instruments MSP430 Student Guide

Clocking
MSP430's rich clock ecosystem provides three internal clocks from a variety of clock sources.

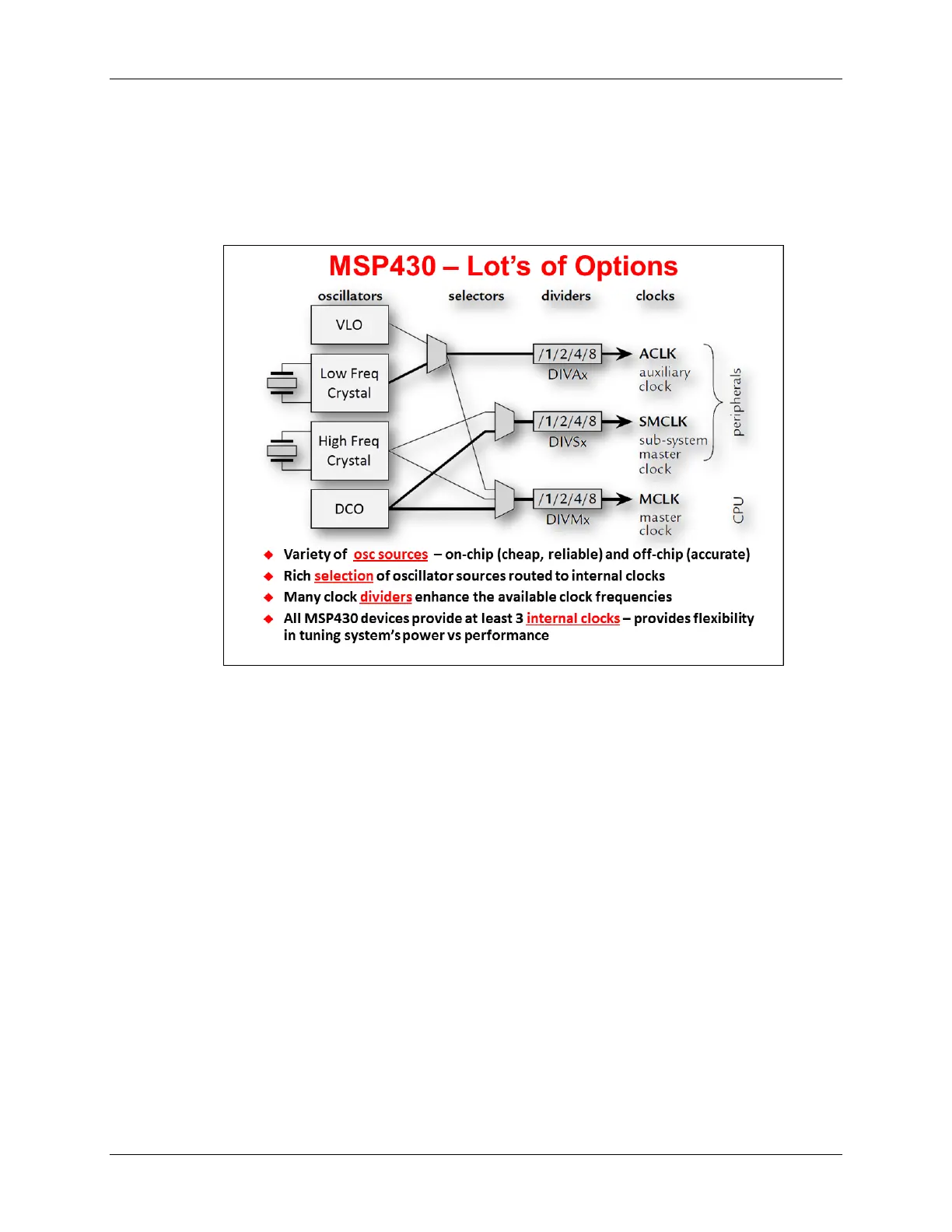

Let's start on the right-side of the following diagram; there are 3 internal clocks which provide a
variety of high and/or low speed options.
On the left-hand side, there are internal and external oscillators which provide both high and slow
speed clock sources.
The next few slides provide further examination of the source oscillators and internal clocks.
MSP430 Workshop - MSP430 Clocks & Initialization 4 - 7
