Texas Instruments MSP430 Student Guide

Lab 4 - Abstract
Lab 4 - Abstract

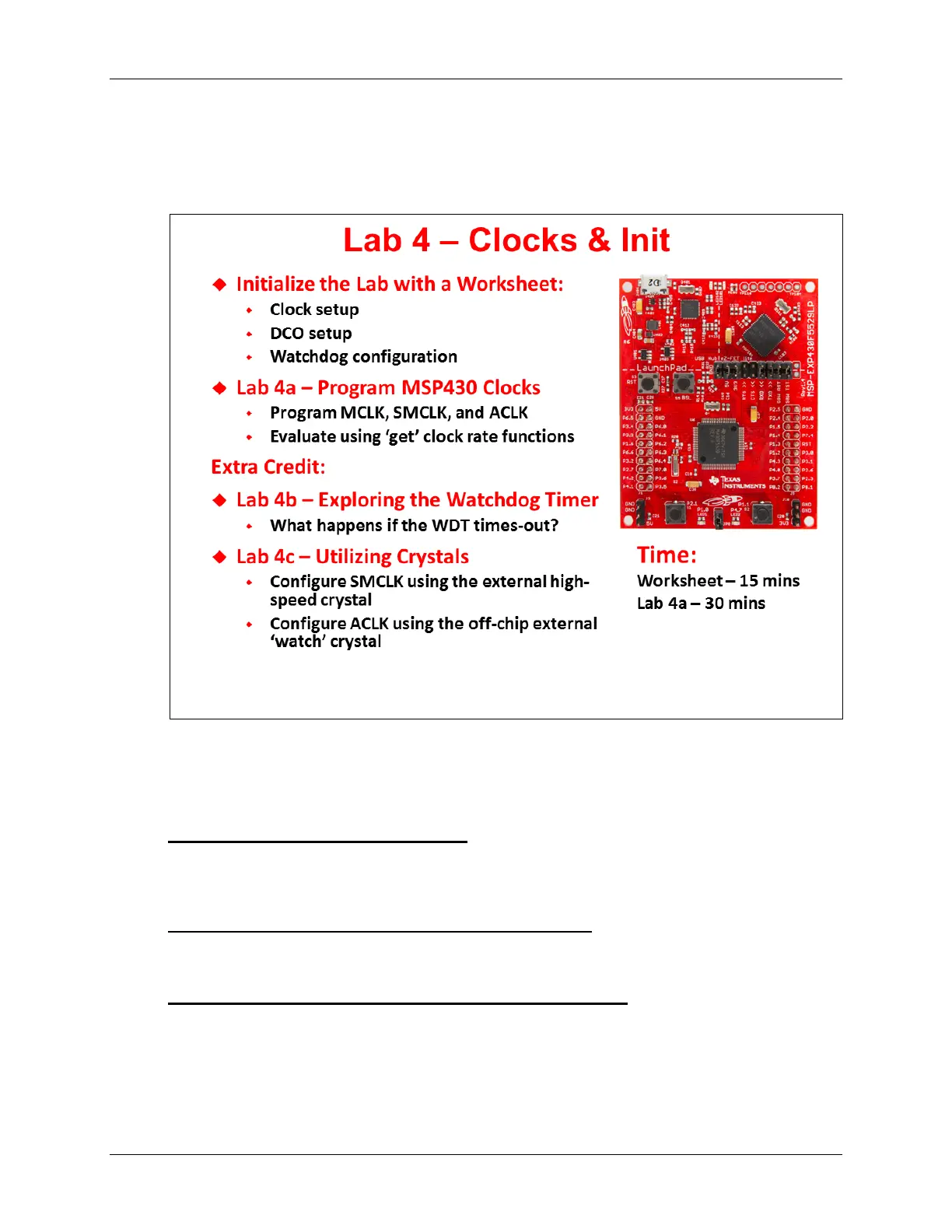

Lab 4 explores a variety of initialization tasks; the largest one being to setup the clocks for the
MSP430.
This lab also starts off with a worksheet where we will answer a number of questions (and write a
little code) that will be used in the upcoming lab procedure.
Lab 4a – Program MSP430 Clocks
We explore the default clock rates for each of MSP430’s three internal clocks; then, set them up
with a set of specified clock rates.
(Extra) Lab 4b – Blink LED with Different Clocks
If you have time, this lab provides an opportunity to explore the Watchdog Timer.
(Extra) Lab 4C – Utilizing Crystals as Clock Sources
Once again, if you have time, this lab gives us a chance to configure our system to use the
external crystal oscillators found on the Launchpad.
MSP430 Workshop - MSP430 Clocks & Initialization 4 - 41

Texas Instruments MSP430 Specifications

General

Program Memory Type	Flash
Clock Speed	Up to 25 MHz (depending on the specific device)
Flash Memory	Up to 512 KB (depending on the specific device)
RAM	Up to 66 KB (depending on the specific device)
Operating Voltage	1.8V - 3.6V (depending on the specific device)
ADC	10-bit or 12-bit SAR ADC
Communication Interfaces	UART, SPI, I2C, USB
DMA	Yes (depending on the specific device)
Operating Temperature	-40°C to +85°C
Architecture	16-bit RISC
Low Power Modes	Multiple (LPM0 to LPM4)
