Interrupts and TI-RTOS Scheduling
Hwi – Swi – Idle Scheduling

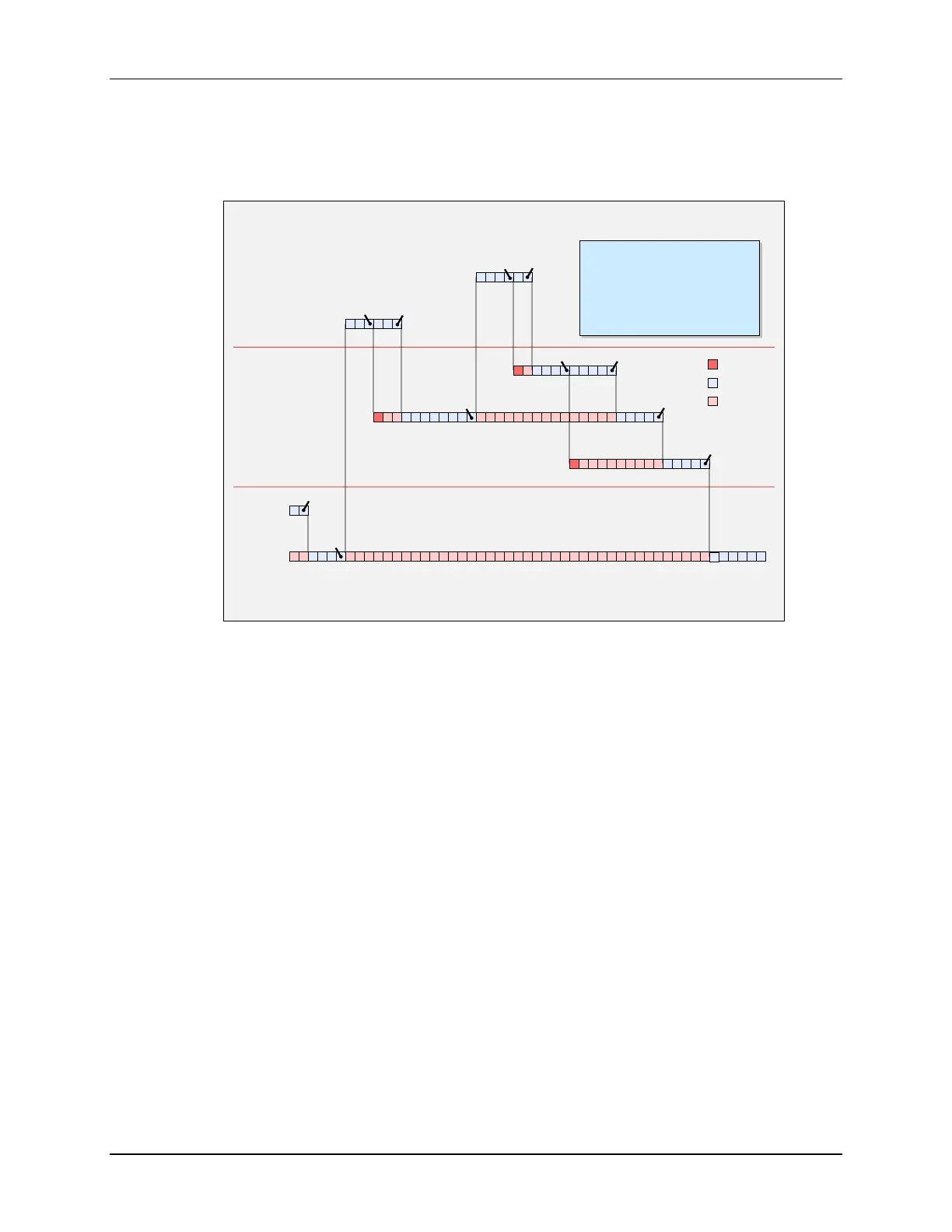

Here’s a simple, visual example of what real-time scheduling might look like in an RTOS based
system.
BIOS – Priority Based Scheduling
Hwi 2
Hwi 1
Swi 3 (Hi)
Swi 2
Swi 1 (Lo)
main
Idle
Audio_ISR()
{
read_sample();
Swi_post(Swi_2);
}
int1
start
post2 rtn
int2
post3 rtn
post1
rtn
rtn
rtn
User SETs the priorities, BIOS executes them
Posted
Running
Ready
Notice how the system enters Idle from main(). Idle is always ready to run (just as our old while{}
loop was always ready to run).
When a hardware interrupt (Hwi) occurs, we leave Idle and execute the Hwi thread’s code. Since
it appears the Hwi posted a Swi, that’s where the TI-RTOS scheduler goes to once the Hwi
finishes.
We won’t go through the remaining details in this course, though we suspect that you can all
follow the diagram. For this slide, and a lot more information, please refer to the TI-RTOS Kernel
Workshop.
