Maintenance and Troubleshooting
Analog Input/Output Problems
Thermo Fisher Scientific Micro-Tech 9101/9201 Reference Manual, Rev J 4-11

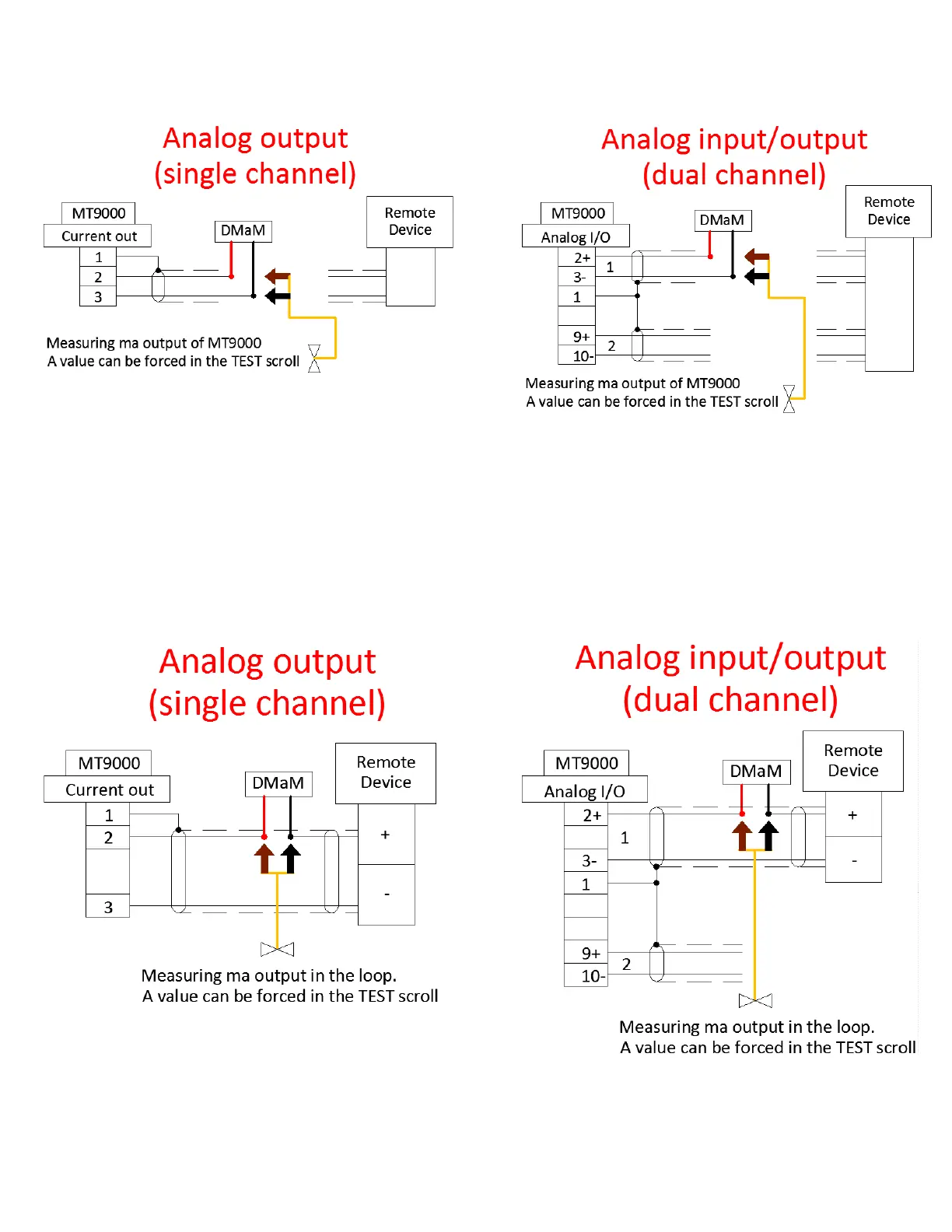

Figure 4–5. Analog Troubleshooting—Confirm Output
3. Confirm analog loop.
 If GOOD—Analog board is performing as expected.
 If BAD—A problem exist in either with the field wiring or in the
remote device.
Figure 4–6. Analog Troubleshooting—Confirm Loop
