PREPARATIONS
3 Connect the power cable to the Power inlet.
4 Insert the power cable plug into the 3-pin AC grounding
receptacle.
CONNECTING EXTERNAL I/O TERMINALS
DATA OUTPUT
This product can be connected to a personal computer (PC) and other external devices via
the RS232C or LAN.

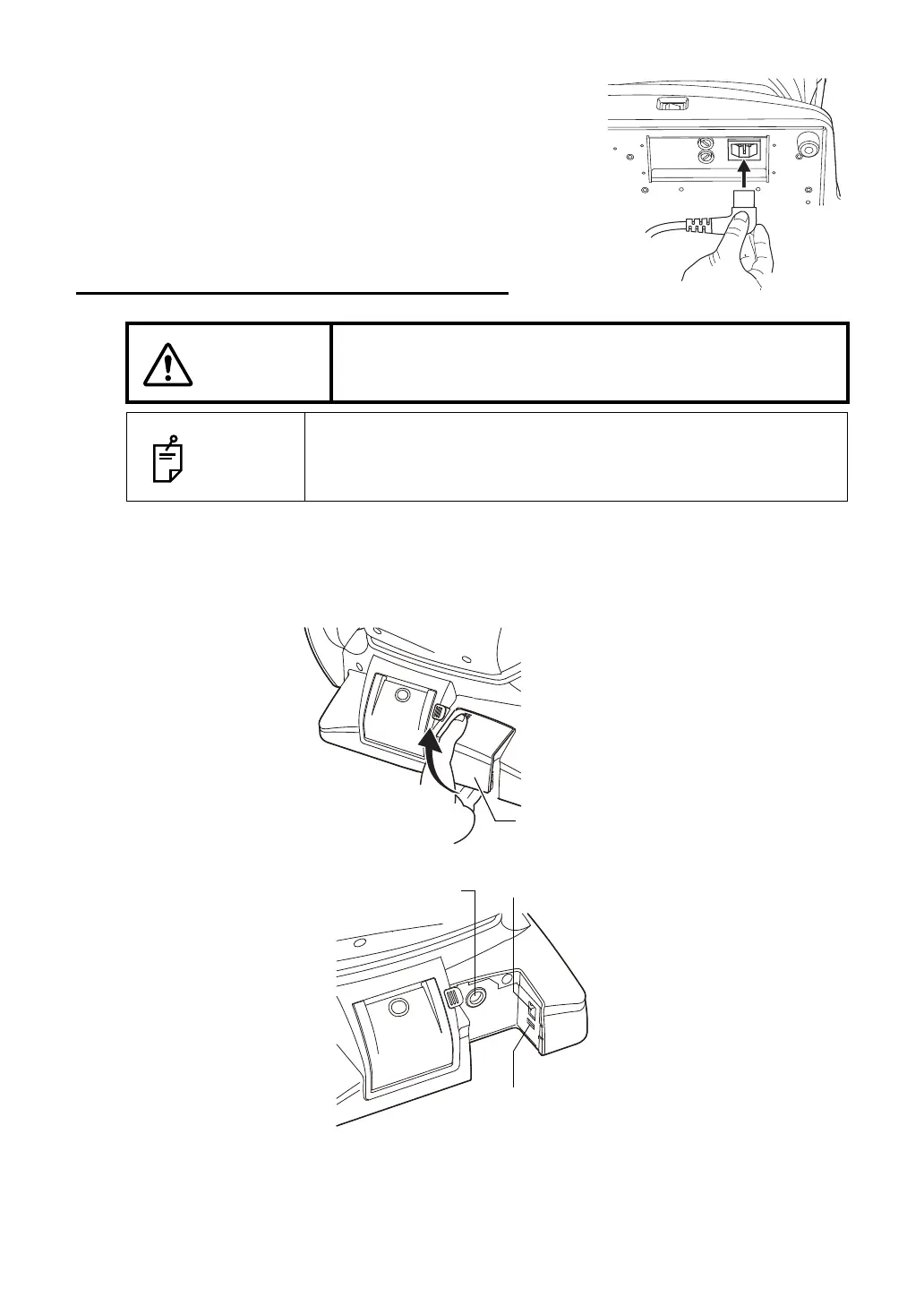

1 Remove the External I/O terminal cover by pulling up as follows.
2 Connect the connection cable to the output terminal of the instrument.
3 Connect the other end of the connection cable to the PC, etc.
CAUTIONS
To avoid electric shock, do not touch the external connection
terminal and the patient at the same time.
NOTES
When connecting this product with a commercial personal com-
puter, use one conforming to IEC60950/IEC60950-1, with a sepa-
ration unit.
External I/O terminal cover
USB input terminal
LAN output terminalRS232C output terminal
