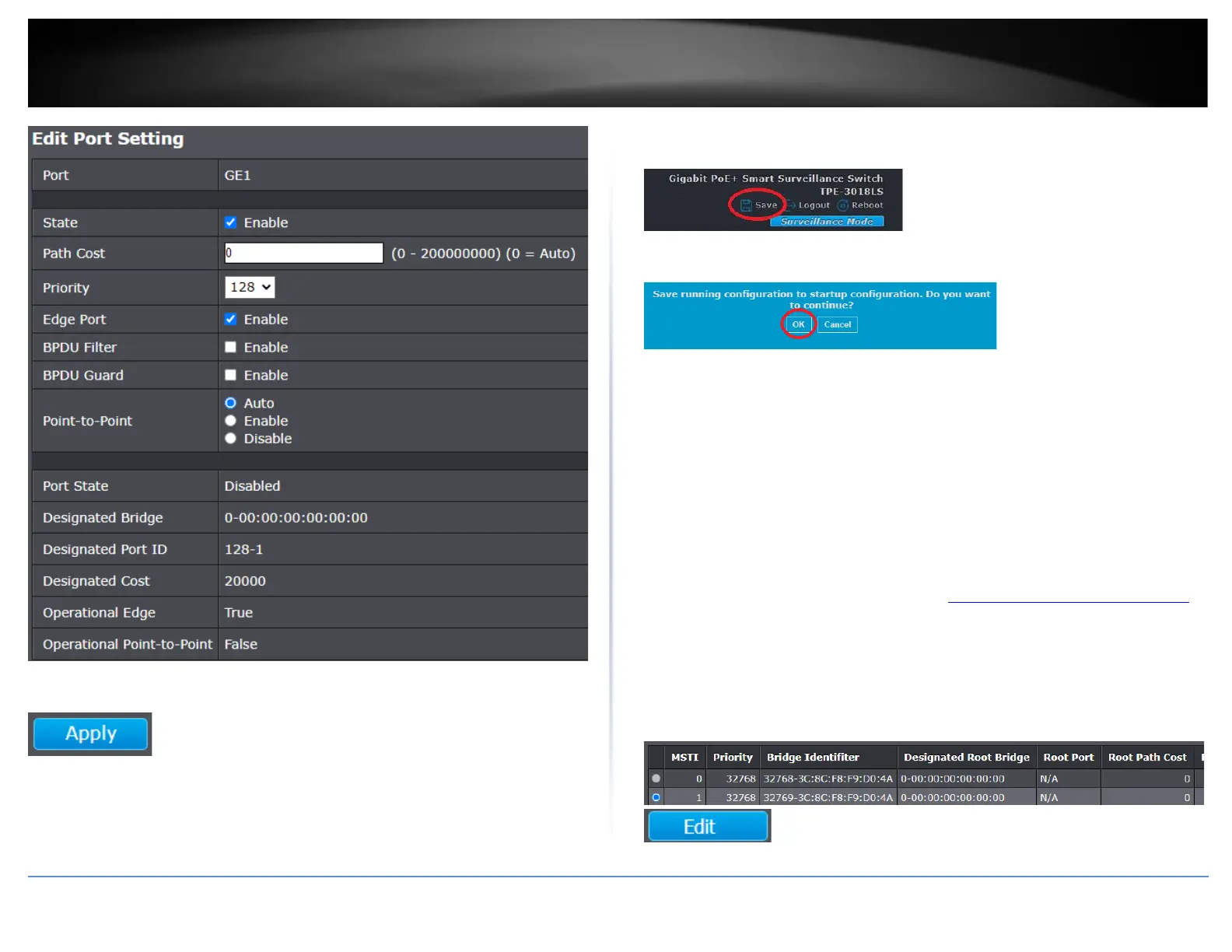

5. Click Apply.
6. In the top right, click Save to save the configuration settings to NV-RAM/startup
configuration.
7. Click OK.
Configure Spanning Tree Protocol MST settings (MSTP)
Spanning Tree > MST Instance
Note: The following configuration settings only apply to MSTP multiple spanning tree
protocol configuration. MSTP must be selected for the Operation Mode under Spanning
Tree > Property. In order to use MSTP, LLDP flooding cannot be used and must be
changed to Filtering or Bridge under Discovery > LLDP > Property under LLDP Handling.
1. Log into your switch management page (see “Access your switch management page”
on page 11).
2. Click on Spanning Tree, and click on MST Instance.
3. In the MST Instance table, click the radio button for the 1
st
instance in the list and
click Edit.
