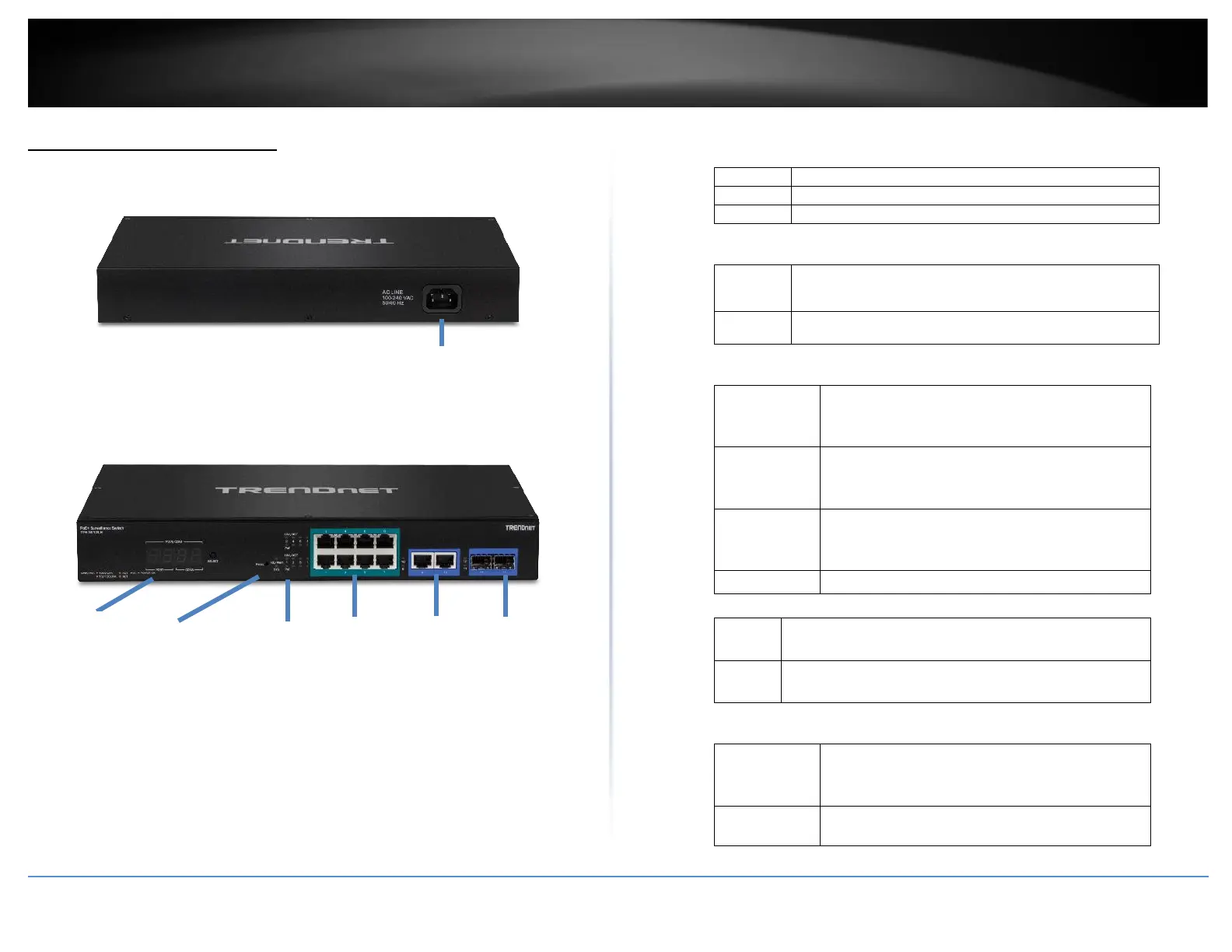

Product Hardware Features
TPE-3012LS
Rear View
• AC Power Connector – Connect the AC power cord to the connector and the
other side into a power outlet. (Input: 100~240VAC, 50/60Hz)
Front View
•
• 4-Digit 7-Segment Display - Displays total power, available power, and
power consumption per port using the toggle button.
• Reset Button – Press and hold this button for 10 seconds and release to
reset the switch to factory defaults.
• PoE+ Gigabit Ports (1-8) – Connect PoE and non-PoE network devices.
• Gigabit Ports (9-10) – Connect non-PoE devices or uplinks.
• SFP Slots (11-12) – Supports optional 1000BASE-SX/LX mini-GBIC
modules.
• Diagnostic LED Indicators
SYS LED
The device is receiving power.
The device is booting up.
The device powered off or not receiving power.
When reaching near the max PoE power budget provided
100W or above, the LED will turn on to indicate that PoE
power consumption is near max. budget available.
When the PoE power provided is below the 100W PoE
power budget.
When the Link/ACT LED lights on, the respective
port is successfully connected to an Ethernet
network.
Green indicates the link is connected at 1000Mbps.
Amber indicates the link is connected at
10/100Mbps.
When the Link/ACT LED is blinking, the port is
transmitting or receiving data on the Ethernet
network.
PoE (Power over Ethernet)
When the PoE powered device (PD) is connected and the
port supplies power normally.
No PoE powered device (PD) connected or unplugged the
PoE output port.
When the Link/ACT LED lights on, the respective
port is successfully connected to an Ethernet
network.
Green indicates the link is connected at 1000Mbps.
Amber indicates the link is connected at
To Next Page
