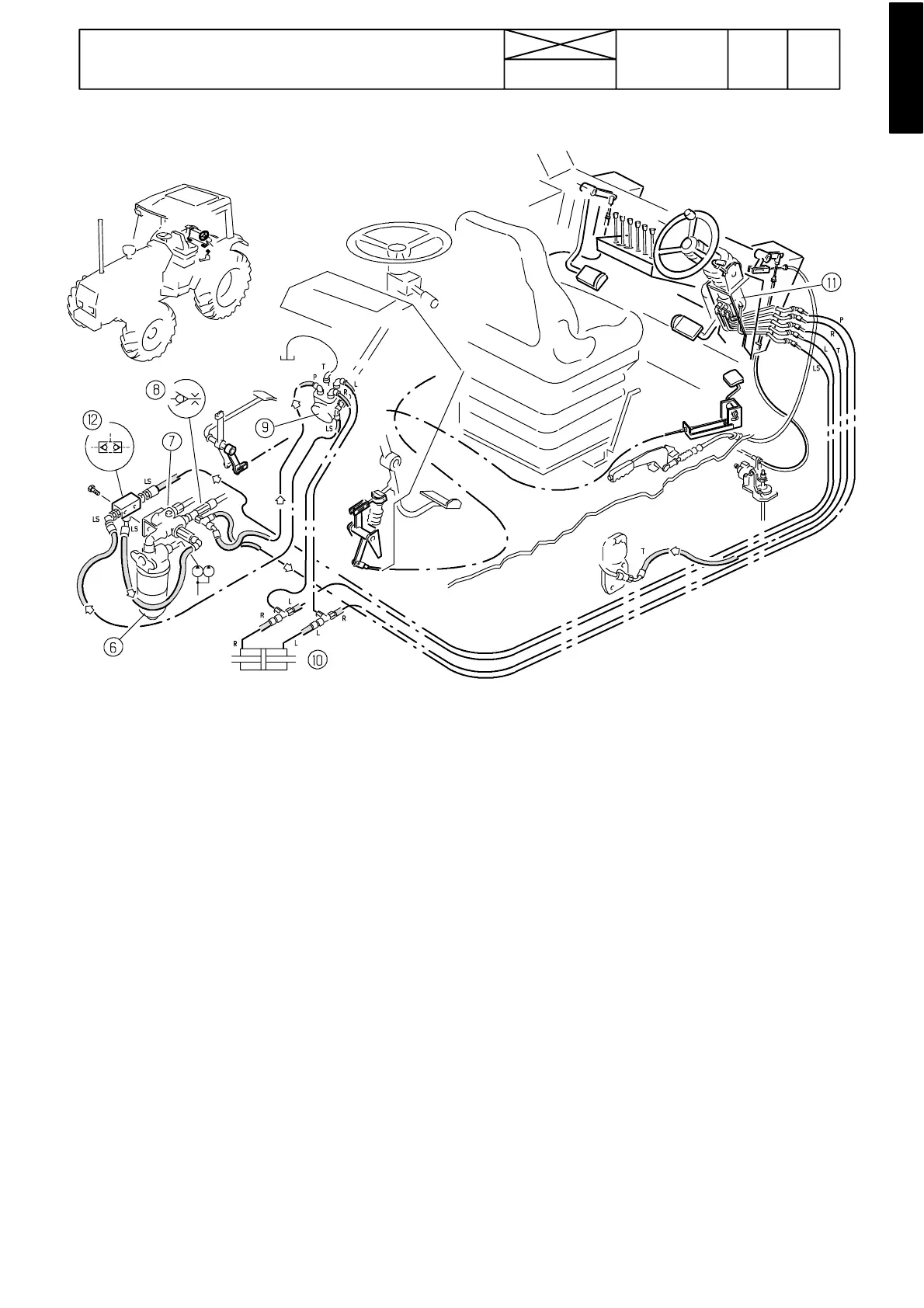

Figure 10. Reverse drive controls
6. Pressure filter
7. Priority valve
8. Non---return valve
9. Steering valve (forward driving)
10. Steering cylinder
11. Steering valve, reverse drive controls
--- pressure relief valve 1 4 MPa
--- shock valve pressure 19,5 MPa
--- steering valve revolution volume 100 cm
3
/r
12. Shuttle valve, reverse drive controls
Reverse drive controls (optional equipment)
943
Model Code Page
61. Steering system
1. 1. 1995
6000--8750 610 15
15. 5. 1993
