953
Model Code Page
61. Steering system
1. 8. 1998
6000--8750 611 5
1. 1. 1995

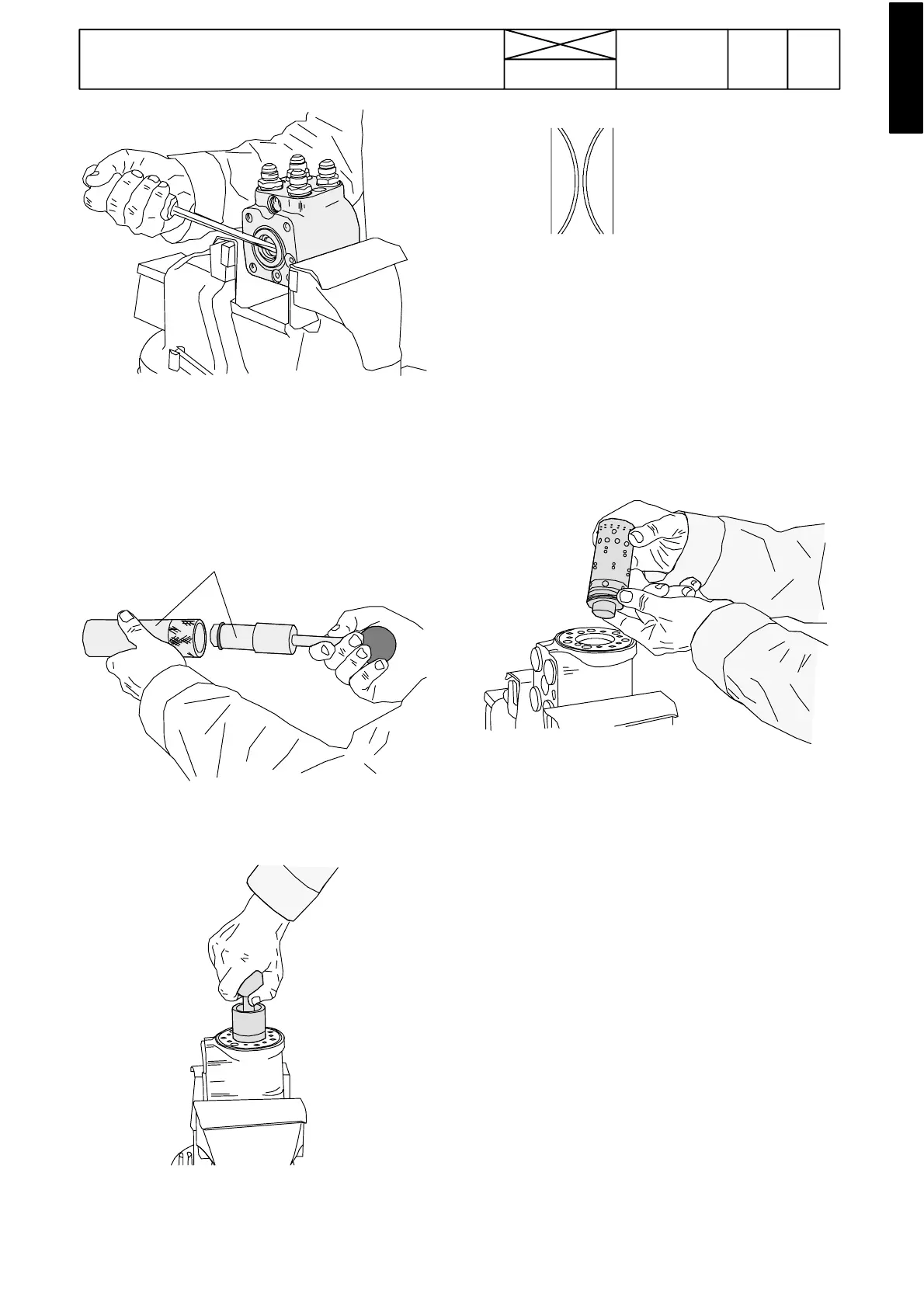

7. Turn the steering valve to a horizontal position and prize out
the seal from the valve housing. Remove the inner oil seal. Fit
a new outer seal. Apply some grease to the seal and turn the
valve back to the vertical position.
8. Fit the inner seal (and the support ring) using tool ETV 892
100 *) as follows:
ETV 893 100
--- lubricate the o---ring. Fit the support ring on the stud of the
tool and fit the o---ring on the support ring. Push the stud into
the guide sleeve.
---push the guide sleeve into the valve housing and push the
seal together with the support ring in place using the stud on
the tool. Remove the tool and check that the seal is property
positioned.
*) Seal has been changed during autumn 96. A new seal can
be fitted with tool ETV 894 330.
Note! If the centring springs are changed, they must be fitted
asshowninfigureabove.
Note! Before removing the springs, mark position of the valve
spindles in ralation to each others e.g. with tusche. Rinse the
spindles with gas oil (also lubricating properties ) so that they
can move easily and the centring springs can center them.
9. Fit the ring over the centring springs. Place the thrust bear-
ing assembly onto the valve slide.
Note! Thick thrust washer first, then bearing and then the thin
thrust washer. Chamfered side of the thick washer towards the
slide.
10. Push the valve slide into the housing fully home
Note! The valve slide together with the thrust bearing is easier
to fit into the housing when the steering valve is horizontally.
Turn the slides until the cross pin is parallel to the flat side of
the valve housing.
11. Fit a new o---ring and the distributor plate onto the housing
according to the mark. Fit the rotor shaft so that grooves on
it engage the cross pin.
To Next Page
