960
Model Code Page
61. Steering system
1. 1. 1995
6000--8750 613 4
8. 11. 1990
Adjustments

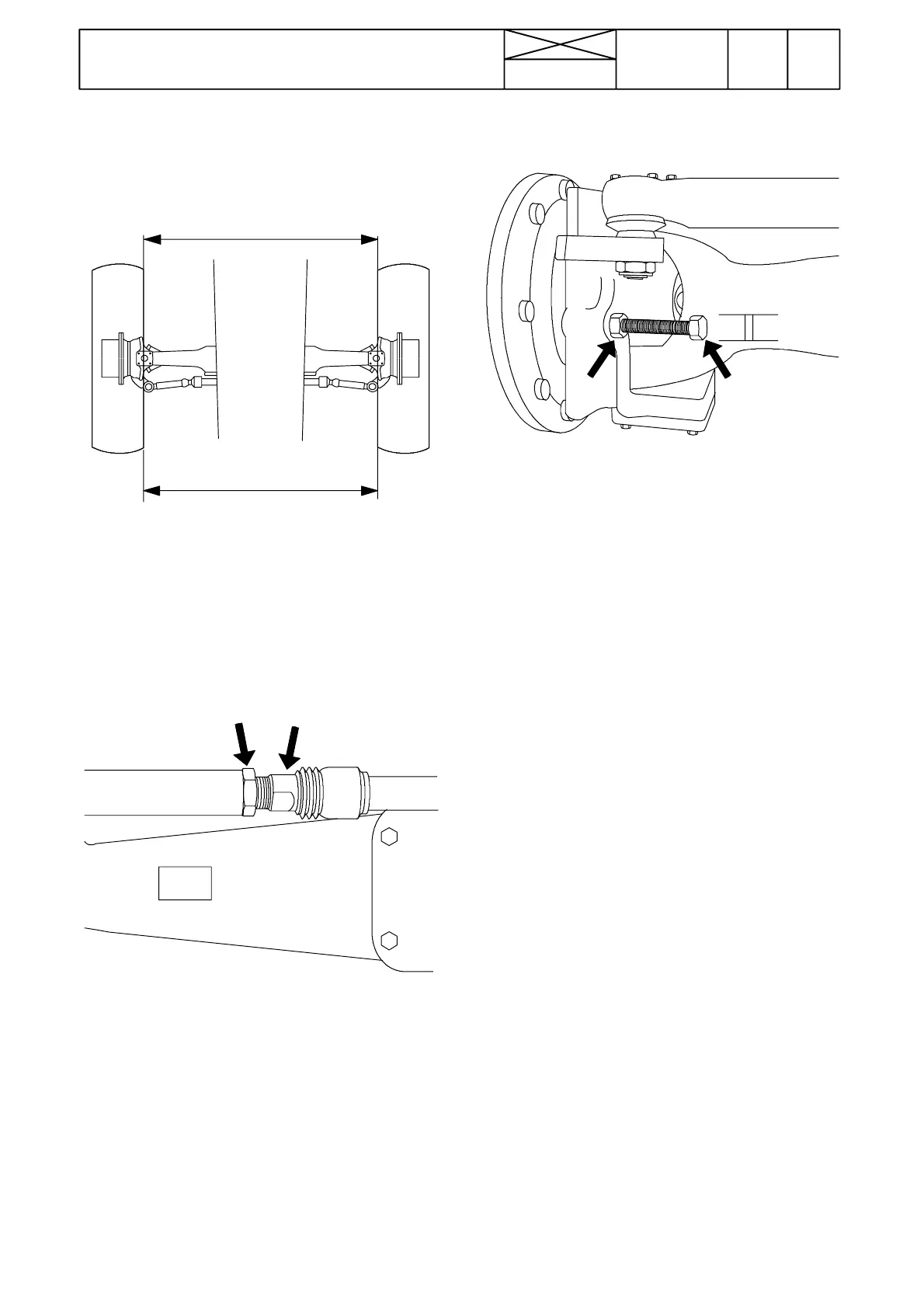

A. Adjusting front wheel toe---in
A
A + 0 --- 5 m m
First check that there is no play on the ball joints of the steering
arms and tie rods. Set the wheels for running straight ahead.
Checking
Make a vertical mark on the front tyres on the middle of the
tread level with hubs. Measure the distance between the
marks. Roll the tractor forwards so that the marks again come
level with hubs, this time at the rear edge. Measure the dis-
tance between the marks again. The distance of the marks
should be 0 --- 5 m m larger at the rear edge.
1
2
Adjustment
Slacken the locking screws (1) of the tie rod and turn the
adjusting screw (2) in the desired direction.
Check the measurements again as above and tighten the
locking screws when the correct measurement has been
obtained. Both tie rods must be adjusted so that there is no
limitation of the steering lock.
B. Adjusting steering lock
12
Adjustment of steering angle may be necessary when chang-
ing tyres or if the track width of the front wheels has been
adjusted.
The front axle is fitted with limiter screws which limit the steer-
ing lock. Carry out adjustment by slackening the locking nuts
(1) and adjust the adjusting screws (2). After adjusting tighten
the nuts.
Adjust the adjusting screws of both sides to the same length,
so that the turning angle would be same on both sides.
