1003
Model Code Page
66. Air suspension of front axle
1. 8. 2000
660 2A6200--6850

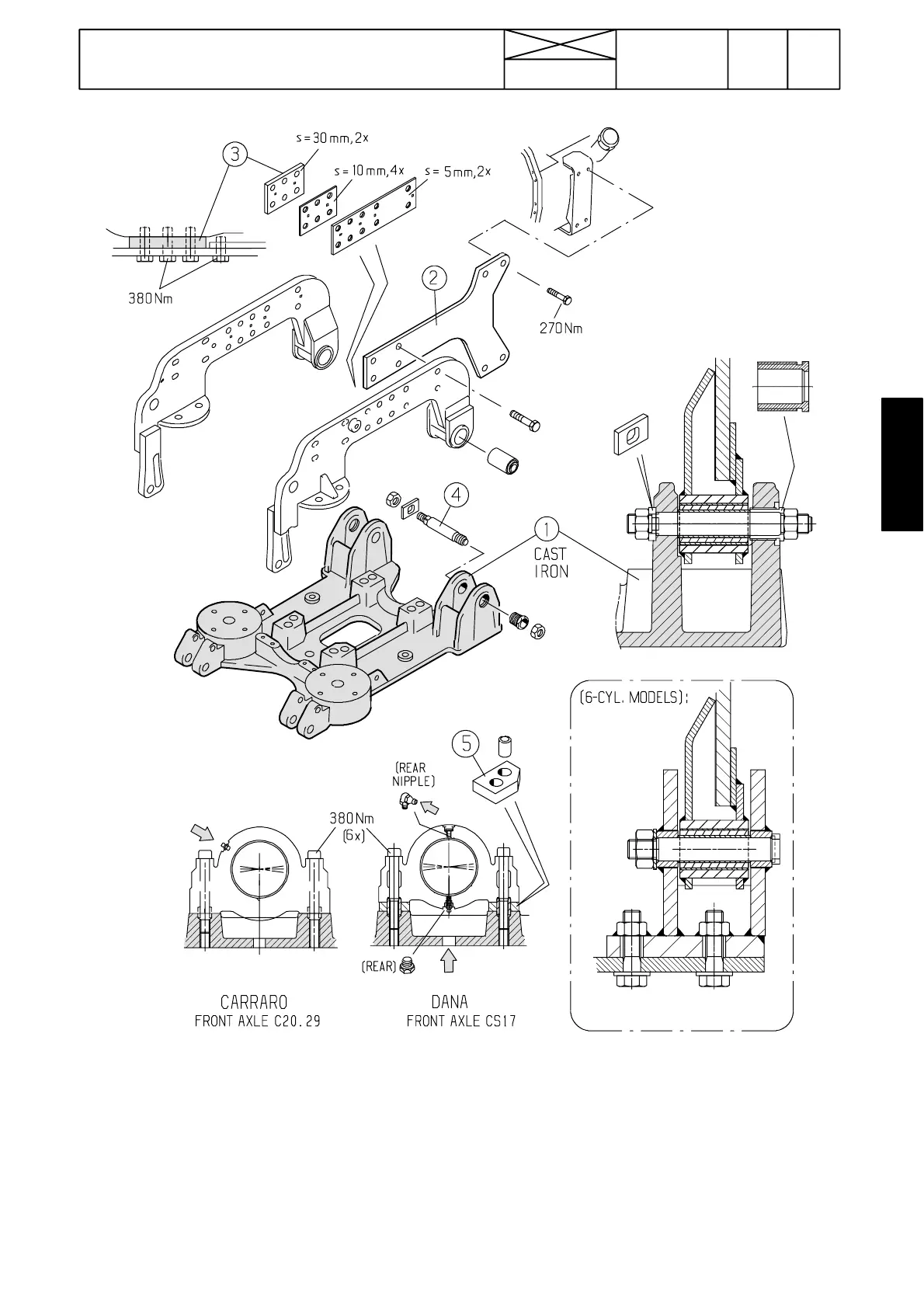

Picture 2A . Front axle air suspension is also available for tractors with 4 ---cyl. engines.
1. Cast iron lower part in connection with 4---cyl. engines.
2. The intermediate atta c h ment requires support plate whi c h is fastened on the i ntermedia te frame.
3. Alternative intermediate plates
4. The pin can be disassembled outwards (the front lift arms need space inside). Clearences are removed with threaded bushing.
5. Intermediate piece for Sige (Dana) front axle. There is a hole for greasing the foremost bearing in the lower piece .
