1041
Model
Code Page
04.01.1996 6000---8400 69 1

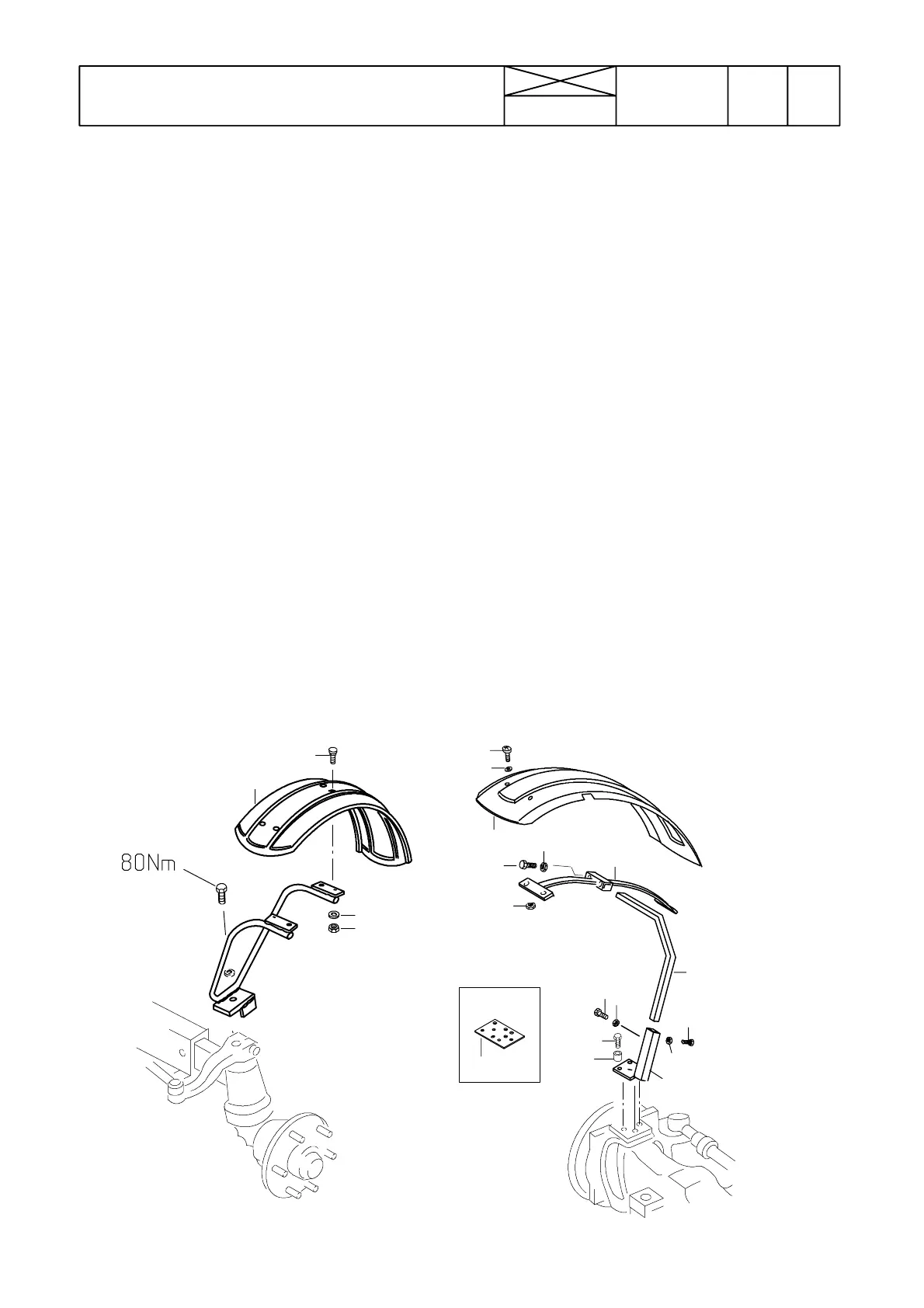

FRONT MUDGUARDS, FIT T ING INSTRUCTION
(3)
19.05.1995
11.00--16 30429600..........................
12.4R24 32611600...........................
13.6--24, 13.6R24 32611500..................
14.9--24, 14.9R24, 13.6R28,
14.9--28, 13,6--14.9R28 32600500.............
16.9R28, 480/65R24, 480/65R28,
440/65R28 32873100.........................
17,5--19.5R24, 540/65R28 32600410..........
Fixed rims:
14.9--24, 14.9--28, 13,6--14.9R28 32600500...
16.9R28, 16.9--24 32873110..................
13.6--24 32611500...........................
Ind. front axle, fixed rims:
16.9R28, 16.9--24 32873210..................
14.9R28, 14.9--28, 14.9--24 32873300.........
Transferring pieces for the narrow track widths
(ref. 11 in picture) 32258900...................
Adjusting front mudguards to track width1500 mm.
Suits to 28” or smaller tyres.
FITTING:
--- 4WD: the front mudguards are fastened into the
threaded holes on the king pin covers (3 off).
Remove the plastic plugs in the holes.
--- 2WD: the mudguards are fastened under the bolt
of the steering arm.
1
2
3
4
5
6
7
8
9
10
8
8
9
9
12
13
14
11
2WD
4WD
11
EXTRA
15
