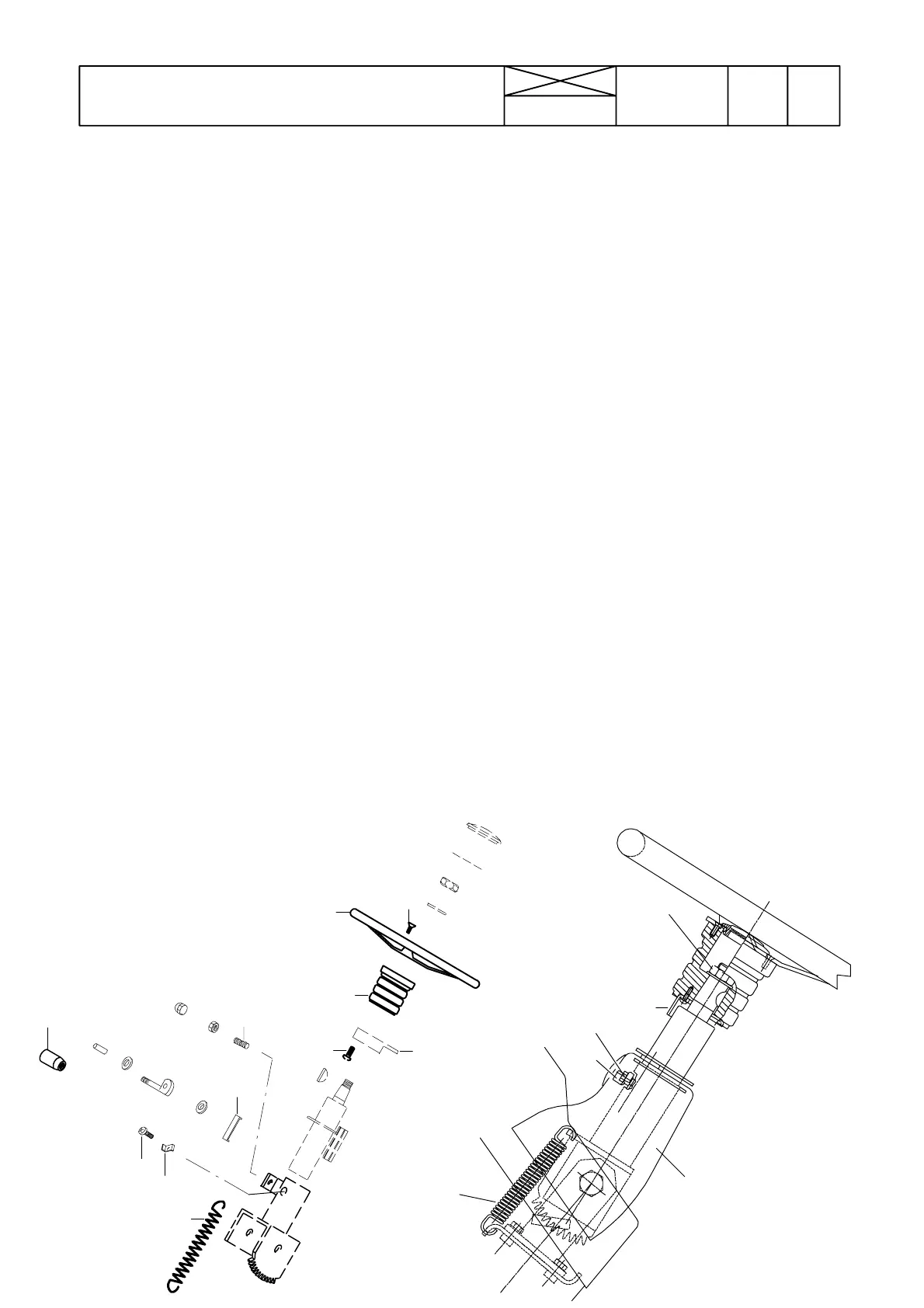

SPECIAL STEERING WHEEL
(2)
FITTING INSTRUCTION
Special steering wheel 32482900...........
--- With a leather covered steering wheel the driver
has a pleasant and safe hold to driving.
FITTING:
--- Unscrew t he steering wheel centre nut and
remove the standard steering wheel with a suitable
puller. Move the return ring 7 of the earlier steering
wheel onto the corresponding place on the special
steering wheel.
Assemble the special steering wheel, be sure that
the screws 3 do not get into wrong threads. Fit the
new s teering wheel into position (tighteningtorque
70Nm).
--- C h an g e s p r i n g 6 into a stronger one:
Open first locking plate 20, slacken locking screw
19 and pull out the steering wheel column pipe
and the steering wheel.
Note! Do not lose the locking piece 18.
Remove plastic covering 5. Change the spring 6
with aid of iron w ire etc. Refit the covering.
--- Fasten the locking piece 18 temporarily with e.g.
grease, or slacken adjusting screws 12 (remember
number of opening revs), so that the locking piece
remains better in the notch.
Push the steering wheel+column pipe into posi-
tion by rotating the steering wheel so that the teeth
engage.
Lockthecolumnpipewithscrew19.
NB! Bend the locking plate 20 so that screw 19
cannot g et loose!
--- If the adjusting screws 12 have been unscrewed,
check after assembling the function of the steering
wheel locking.
1
2
3
4
6
70 Nm
(7)
(7)
(12)
13
(18)
(19)
(20)
(5)
(19)
6
(20)
