1053
Model
Code Page
14.03.2000 6000---8750
69.3
7
REVERSE DRIVE CONTROL, fitting instruction
(22)
27.11.1996
(not HiTech)
4
1
6
7
7
8
10
11
12
13
14
15
16
17
18
15
13
13
13
16
18
17
14
15
15
19
20
21
22
22
23
8
24
25
26
27
28
29
30
31
32
21
23
33
9
2
3
4
10
34
35
36
37
38
(koottu valmiiksi)
(ready assembled)
(färdig ihopmonterad)

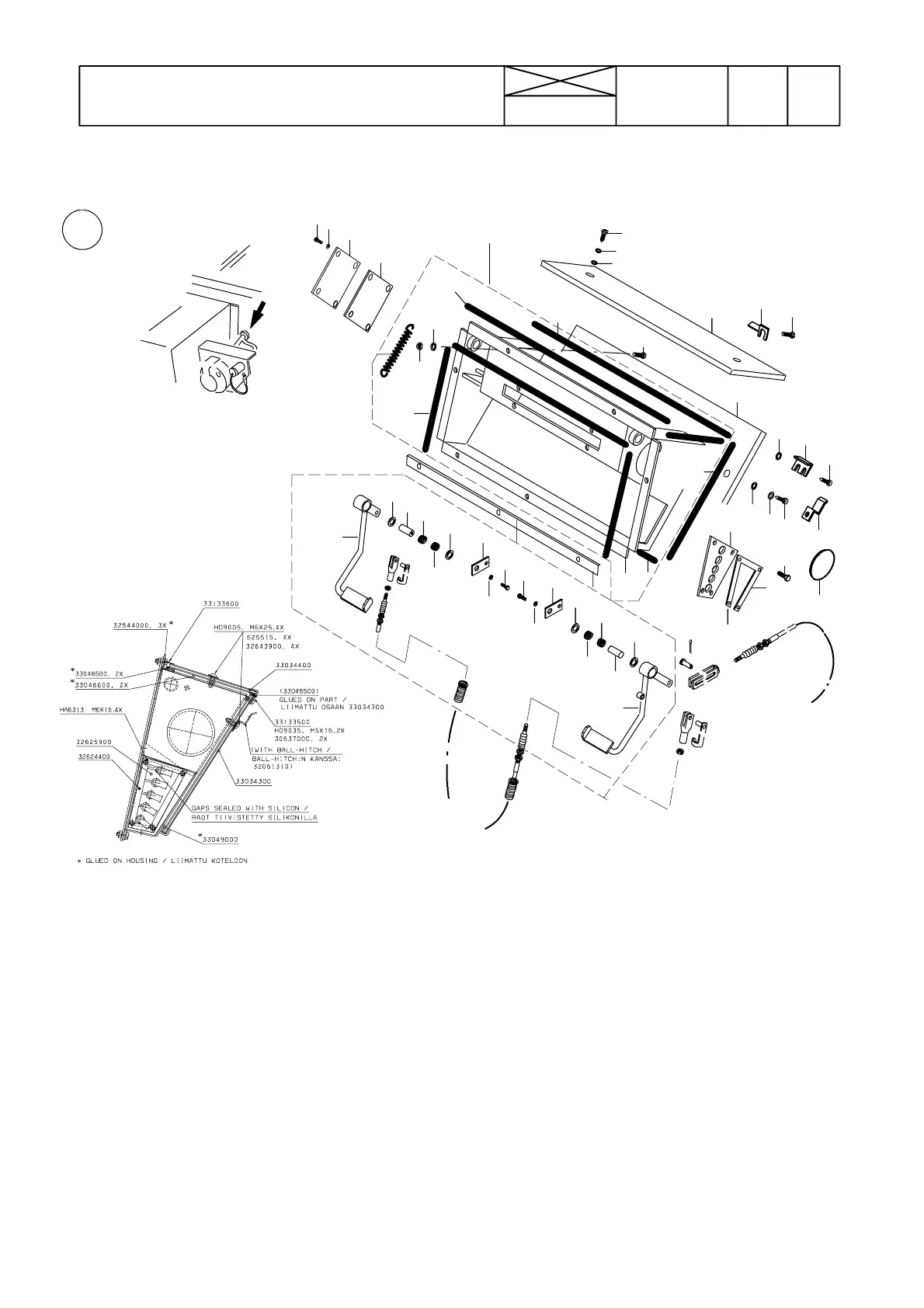

4. Fastening the rear housing:
--- Glue gaskets to the edge of the rear opening
and fasten the housing w ith M8 screws. Con-
nect the electric socket and the PTO safety
switch to the fastener on the rear housing. Wires
to the socket are drawn through the earlier hole
for the safety socket in the rear wall of the cab.
Position a shrink plastic to the joint of the wire
and the switch frame (water tight).
--- Assemble the clutch leverage and the brake
leverages (see picture 4a).
Check function. Fasten the clutch cable, leave all
adjusting clearances to the rear lever.
--- Fit the brake cable.
To Next Page
