REVERSE DRIVE CONTROL, fitting instruction
(22)
27.11.1996
(not HiTech)
5. Fitting steering wheel column:
--- Fasten the column frame (do not tighten the
screws too hard).
--- A s se m b ly t he s t e e ri n g v a l v e ( o --- ri n g s a g ain st
the valve, connectors in places).
Place washers (JD 0410, fasten with grease)
betweenvalveandtheframe.makesurethatthe
steering valve is in the middle of the hole and
fasten the valve.
Secure the bolts w ith locking plate.
--- NOTE! Check by measuring that the steering
column end splines are pushed into the shaft of
the steering valve 13...14 mm. Make before as-
sembling a marking with a pen on the steering
column shaft (32485800) with a distance of

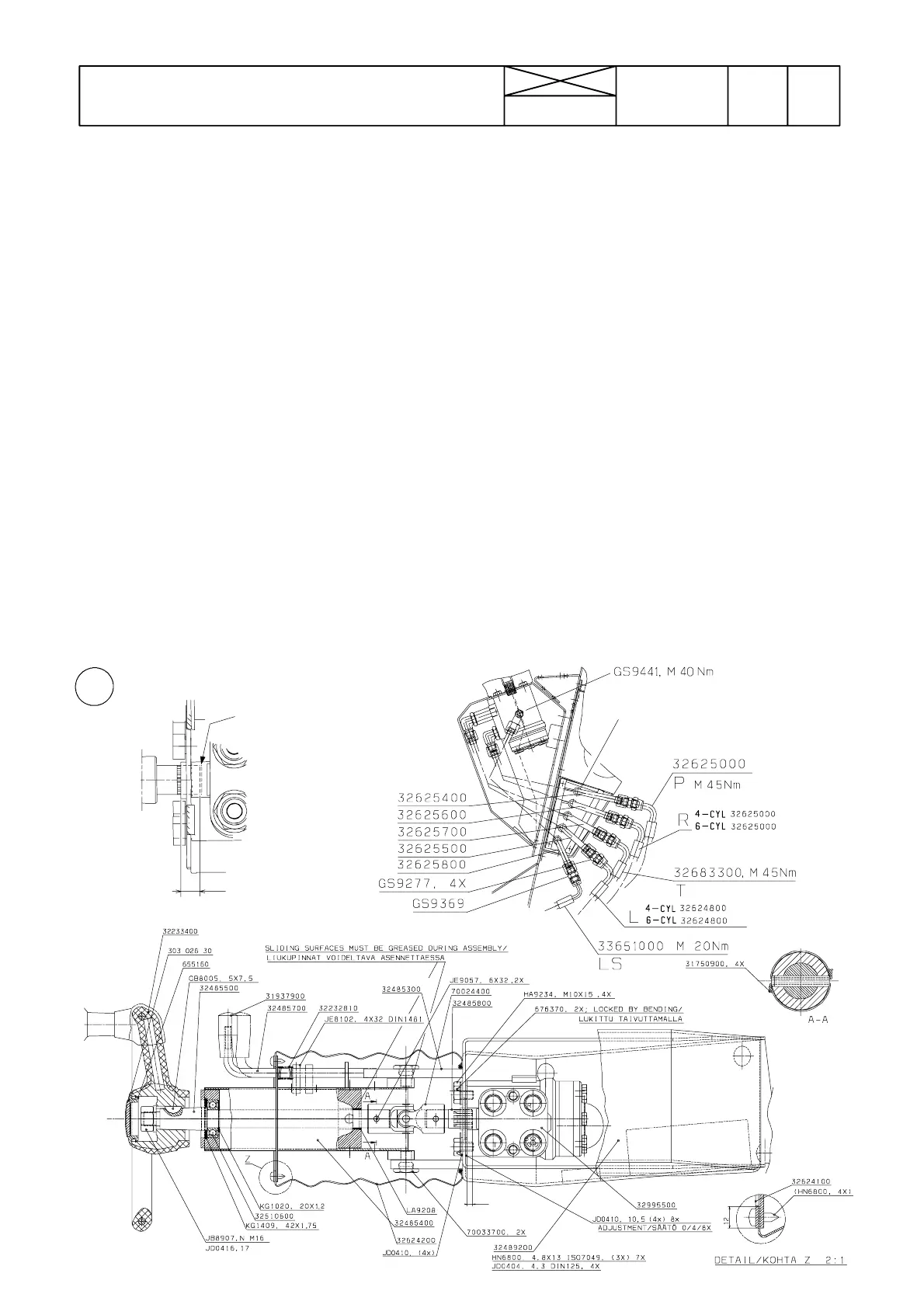

13...14 from the end of the shaft, see picture 4.
(the steering column shaft is not allowed to
touch the bottom of the splines in the steering
valve shaft). If necessary, adjust with washers
between frame and valve.
--- Fit the steering hoses (note fitting order, the
lengths of the hoses which come out of the
housing shorten evenly (P--->LS).
Tighten the hoses with silicone mass to water
tightatthelead---inrubbers.
5
silicon
silikoni
13...14 mm
Välys!
Spelrum!
Clearance!
X
X
