1123
Model Code Page
80. Cab and shields
15. 5. 1996
6000--8750 810 5
1. 1. 1995

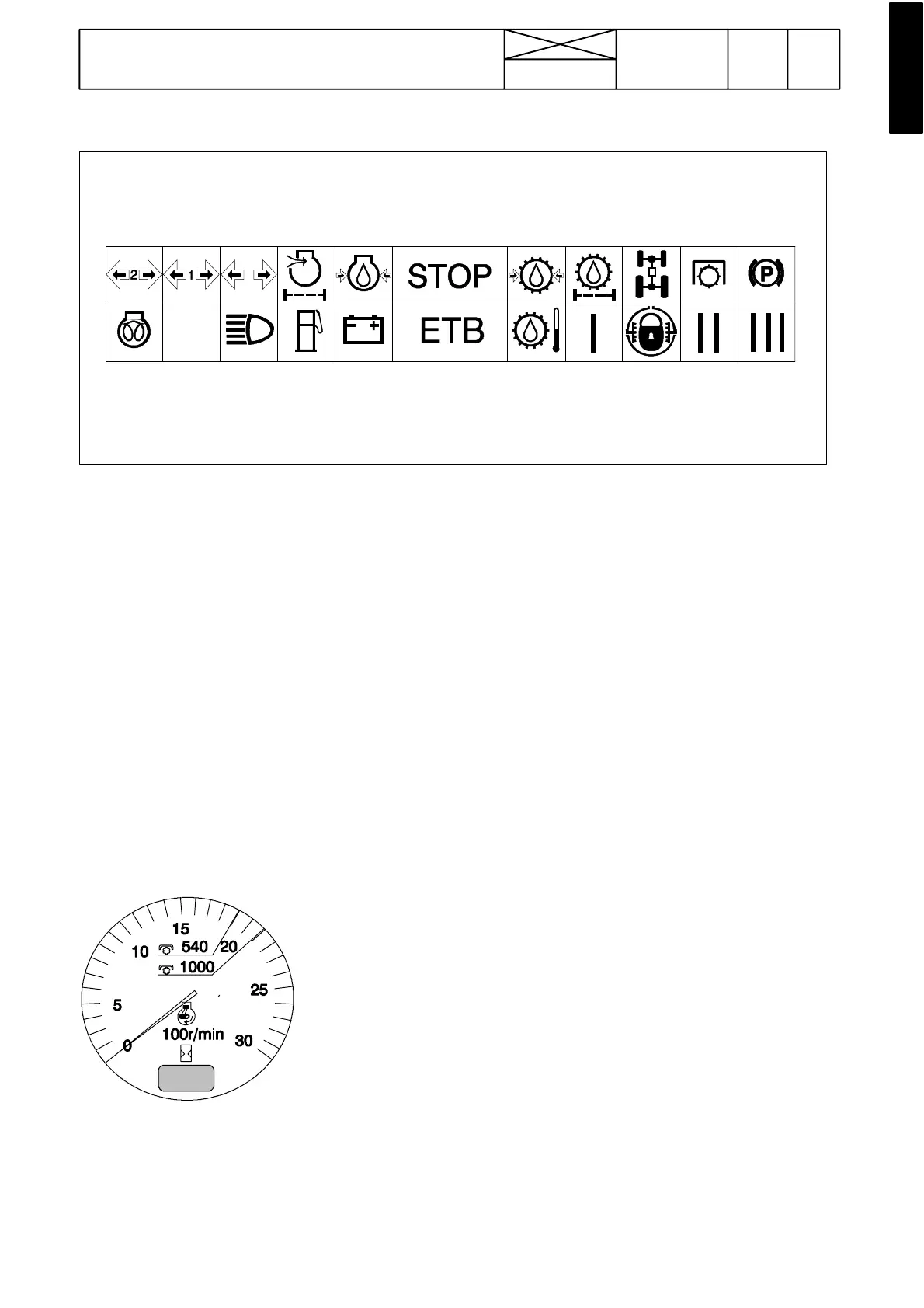

Indicator and warning lights
1234 6 7891011
12 13 14 15 16 17 18 19 20 21 22
50---12,1
5
1.Direction indicator warning light for second trailer (green)
2.Direction indicator warning light for first trailer (green)
3.Tractor direction indicator warning light (green)
4.Air cleaner warning light (yellow)
5.Engine oil pressure (red)
6.Engine Stop --- (red)
7.Gearbox oi l pressure (red)
8.Blocked working hydraulics pressure filter, red (option)
9.Front wheel drive (yellow)
10. Power take ---off 540 r/min (yellow). From the beginning of
the year 1994 common with 1000 r/min PTO (AC II).
11. Parking brake (red)
12. Thermostart --- glow (yellow)
13.Not used (yellow)
14.Main beams (blue)
15. Low fuel level (yellow)
Rev. counter and hour recorder
The rev. countershows the enginespeed inhundreds ofrevol-
utions per minute. The revolutions which correspond to the
nominal revolutions of PTO are also marked on the rev.
counter.
The digital hour recorder shows the total number of hours
worked, when the lift/lower switch of the power lift is in the lift-
ing position.
16. Battery charging (red)
17.ETB, Σ ---power (yellow), 8750 tractor only
18. Gearbox oil temperature (red)
19. Not used (red). Later DPS indicator light
20. Differential lock (yellow)
21. Power take ---off 1000 r/min (yellow). Removed from the
beginning of the year 1994 (AC II). See point 10. Later DPS
ind. light
22. DPS ind. light.
The central warning (STOP) lamp is actuated by::
--- engine oil pressure
--- gearbox oil pressure
--- gearbox oil temperature
--- engine coolant temperature
If the central warning light (stop) comes on when the tractor
has been driven the engine must bestopped immediately and
the fault must be repaired before co ntinuing again.
Note! If the STOP---light comes on alone, and engine tem-
peratureis nottoohigh, the fault lies in the enginetemperature
senso r, which should be changed (temperature gauge
shows, however, a correct value). In thiscase, theSTOP---light
goes temporarily out, when you disc onnect the sensor wire.
When the lift/lower switch is in the lower position, the display
shows the position of the lower links on a scale 0---100
(50=middle position) .
Note! The letter s Ac after t he number mean Autocontrol.
