1(1)205---8750FITTING INSTRUCTION 89.1
ACTIVE COAL FILTER
29.04.1993
07.04.1998
Active coal filter 505---905, 205---900 20790500
(to tr. no ---> F51507), 6000---8400 20707700....
(from tr no. F51508 --->) 6000---8400, 20750400..
8050---8750
Active coal filter, filters both solid and gaseous
impurities such as dust and spores a nd it reduces
biocide concentration in the cab to about1/10 of a
normal value. The active coal filter, filters all par-
ticles in dimensions 2/1000 mm (2 Nm) and bigger.
It separates visible impurities totally. The active
coal filter is fitted instead of the standard filter.
Fitting 205---900 :

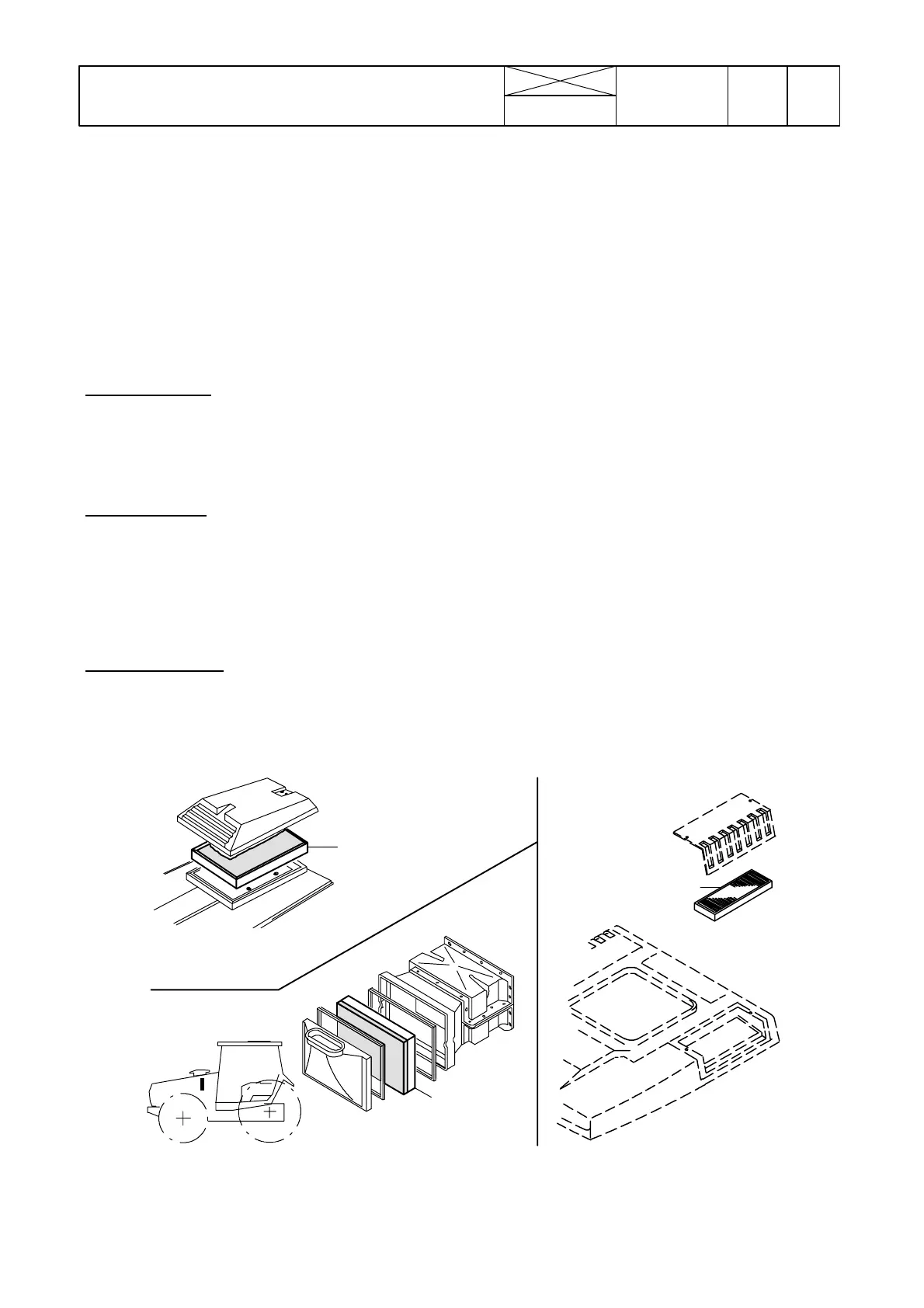

--- Remove the filter housing cover and place the
active coal filter in place of the standard filter, see
figure below.
--- Refit the cover.
Fitting 505---905 :
--- Remove engine hood side plate on the LH side
and raise the upper plate
--- Open the filter housing and place the active coal
filter in place of the standard filter. Note the posi -
tion of the filter, see picture 2.
--- Refit the engine hood plates
Fitting 6000---8750 :
--- Detach the air intake cover on the LH side of the
roof and place the active coal filter in place of the
standard filter.
--- Refit the cover
205---900
6000---8750
20790500
20707700
505---905
(---F51507)
20750400
(F51508--->)
20790500
