FITTING INSTRUCTION 26.07.1993 6000---8400 89 1
AIR SUSPENDED DRIVER’S SEAT
(2)
Air suspended seat 32036900
The a ir suspended seat makes tractor driving plea-
sant w hen driving on an uneven ground and also the
seat improves driving comfort.
The seat reduces sways automatically according to
the driver’s weight. In addition, the seat has a hori-
zontalspringiness which can be locked. This springi-
ness improves roadholding
The seat has an in---built compressor.
The seat is fastened with fixing screws of the stan-
dard seat.
The air suspended seat power demand is 108W,
seat fuse is F25 (10 A).
FITTING:
--- Remove the standard seat (4 screws) and fasten
the air suspended seat inplace.
--- Connect the seat wires to the connector X49 in the
cab wiring loom. The connector is situated at the
turning device.
--- Become familiar with various adjustments of the
seat and adjust it.

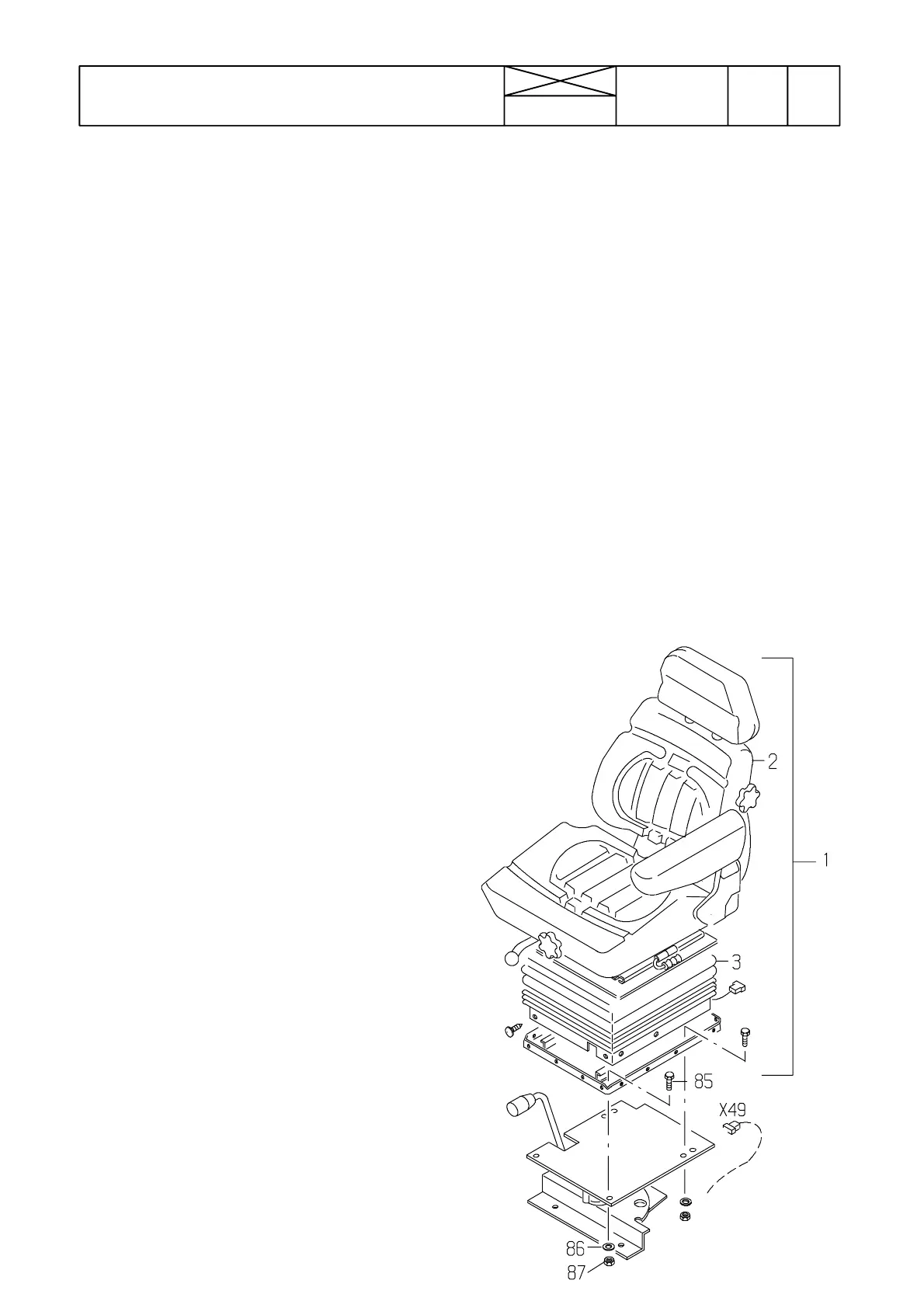

1 1 32036900 Istuin Förarstol Seat
2 1 32097600 .Istuimen alaosa Förarstol undre del Seat lowerpart
3 1 31660200 .Yläosa Övredel Upper part
85 4 HA6323 Ruuvi Skruv Screw
86 4 JD0408 Aluslaatta Bricka Washer
87 4 JB8904 Mutteri Mutter Nut
