1163
Model
Code Page
23.06.1993 16000---8400
VENTILATION LATCH FOR DOOR
89
FITTING INSTRUCTION
(1)
Ventilation latch 32708200
With aid of this latchthe cab doors can be locked ajar
which improves the cab ventilation.
The doors can be locked normally by turning the
latch to one side. The mounting kit includes latches
for both doors.

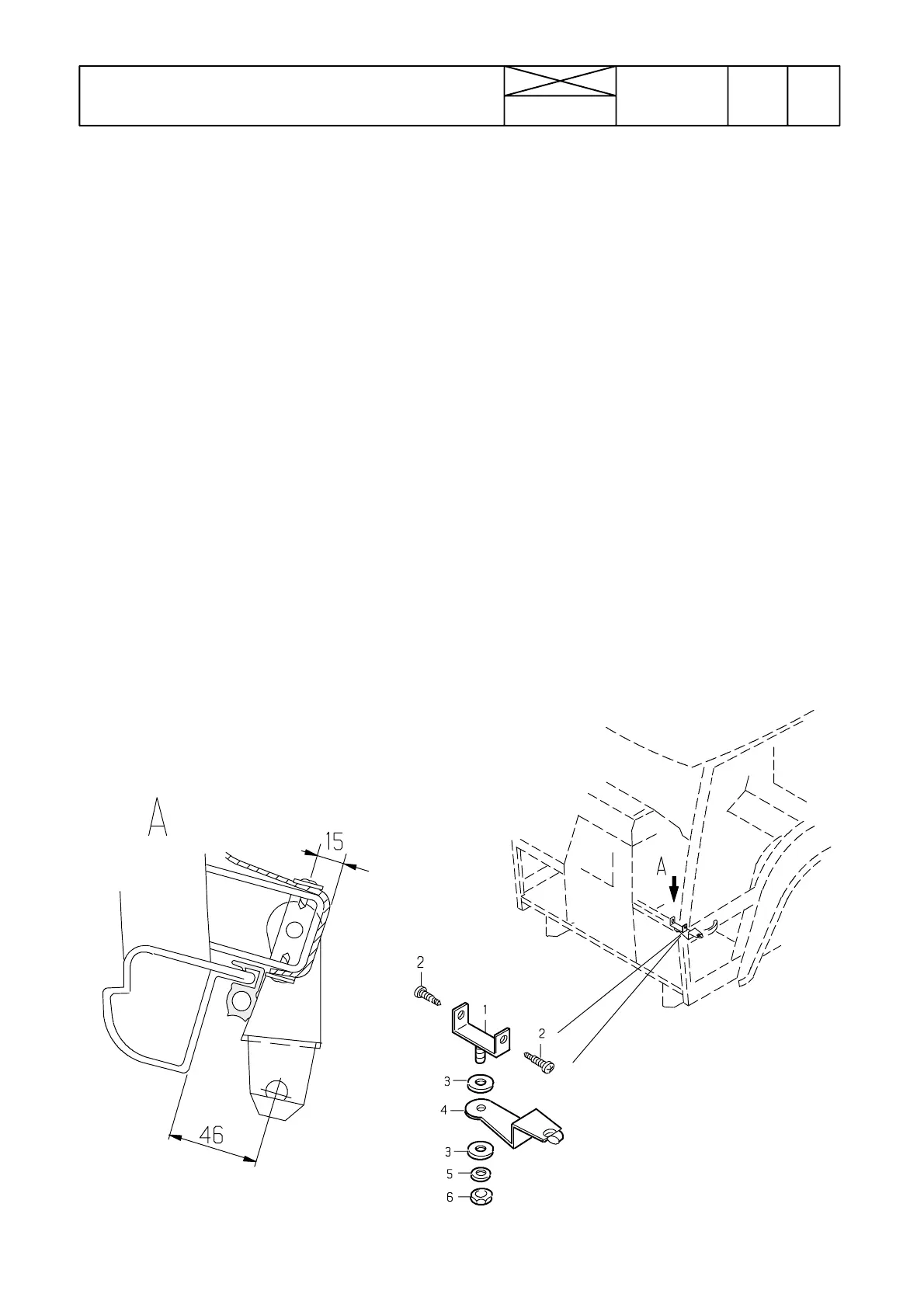

Fitting:
--- Pr e ss t he la tch 4 round section against the door
lock.
--- Lift the attacment 1 against the lock pin lug so
much up as possible
Move the attachment tow ards the windscreen until
the ventilation latch touches the door seal.
--- Fit the inner screw 2 (the screw does not need a
re a d y --- ma de hole ) .
The outer screw is fitted when the door is open.
Fasten the latch and t he friction plates.
1 32708200 Tuuletussalpa V entilationslås Ventilation latch Ventilatorriegel
1 1 32707800 .Kiinnitin Fästdon Fastener Halter
2 2 32665100 .Ruuvi Skruv Screw Schraube
3 2 32577400 .Kitkalevy Friktionplatta Friction plate Reibungsplatte
4 1 32707300 .Salpa Spärr Catch Riegel
1 32708000 .Salpa Spärr Catch Riegel
5 1 JD0408 .Aluslaatta Bricka Washer Scheibe
6 1 JB8904 .Mutteri Mutter Nut Mutter
