1171
89.2
Model
No Page
6000---8750
AIR CONDITIONING, FIT TING INSTRUCTION
(P T 94 --- cabin)
30.07.1999
1(28)
28.06.1999
6250Hi---8950Hi
Air conditioning 6000---6600 32453210......
Air conditioning
6800 33099900....... ....
Air conditioning
6900(8000R)---8150 32214310
Air conditioning
8450---8750, 8050Hi---
8950Hi
33182400........................ ....
Air conditioning
6250Hi---6850Hi 33665200...
NB! The tractor must have openable front
cover.
Model 8000-- 8400,uptoengineno--D 1229:
the 3---groove coolant pump pulley (836855063)
is needed.
NB! If the tractor has other extra equipment,
familiarize yourself with fitting instructions and
the extra parts before ordening the set.

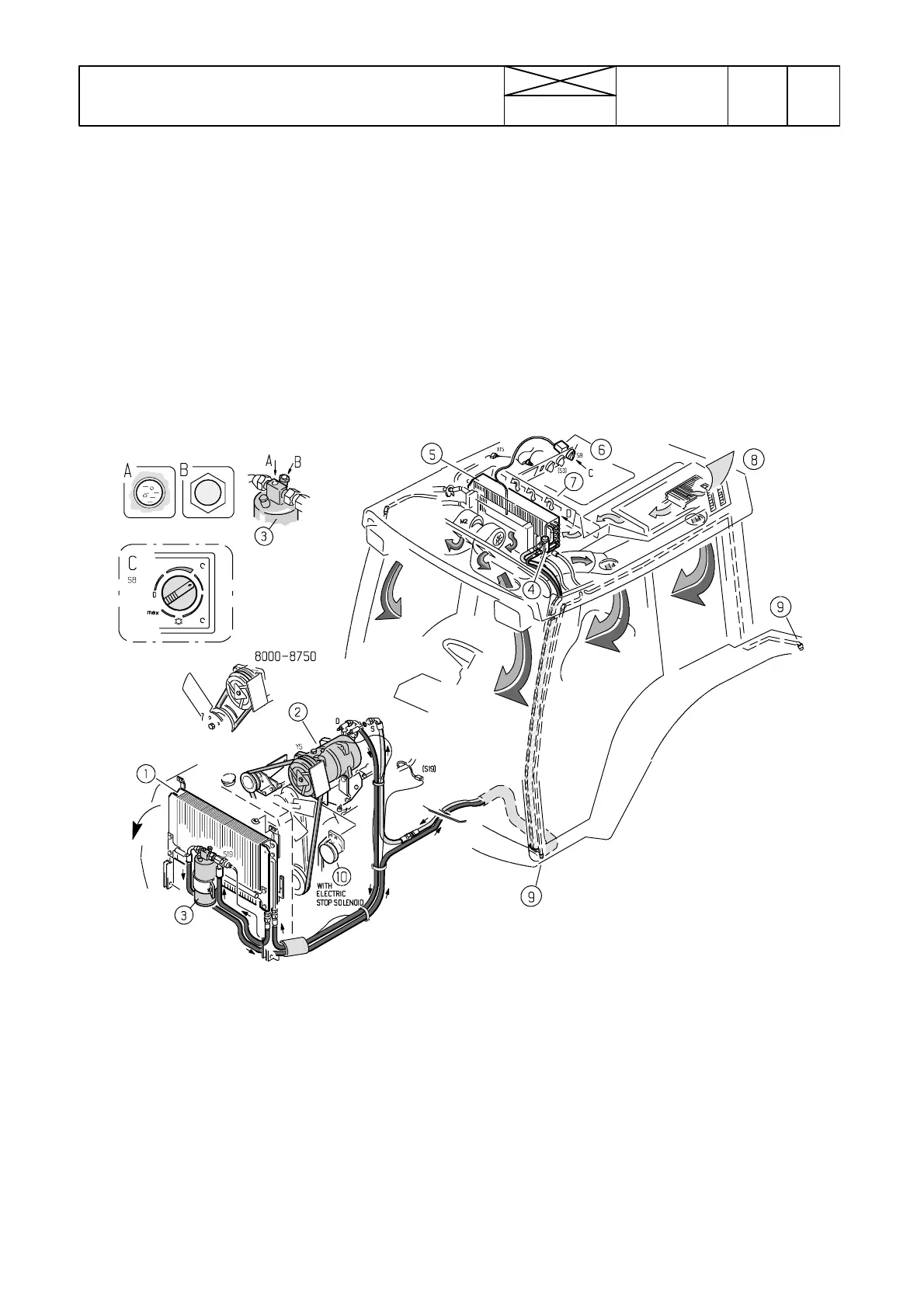

1. Condenser
2. Compressor
3. Dryer
A=Inspection glass
B=Moisture indicator
4. Expansion valve
5. Evaporator
6. Temperature switch
7. Re---circulation valves
8. Air inlet into cab
9. Condensing water hoses have nozzles which
prevent air from entering into the system via
hoses.
10) With an electric stop solenoid
