32. ACB/ACD power lift
0.2 MPa

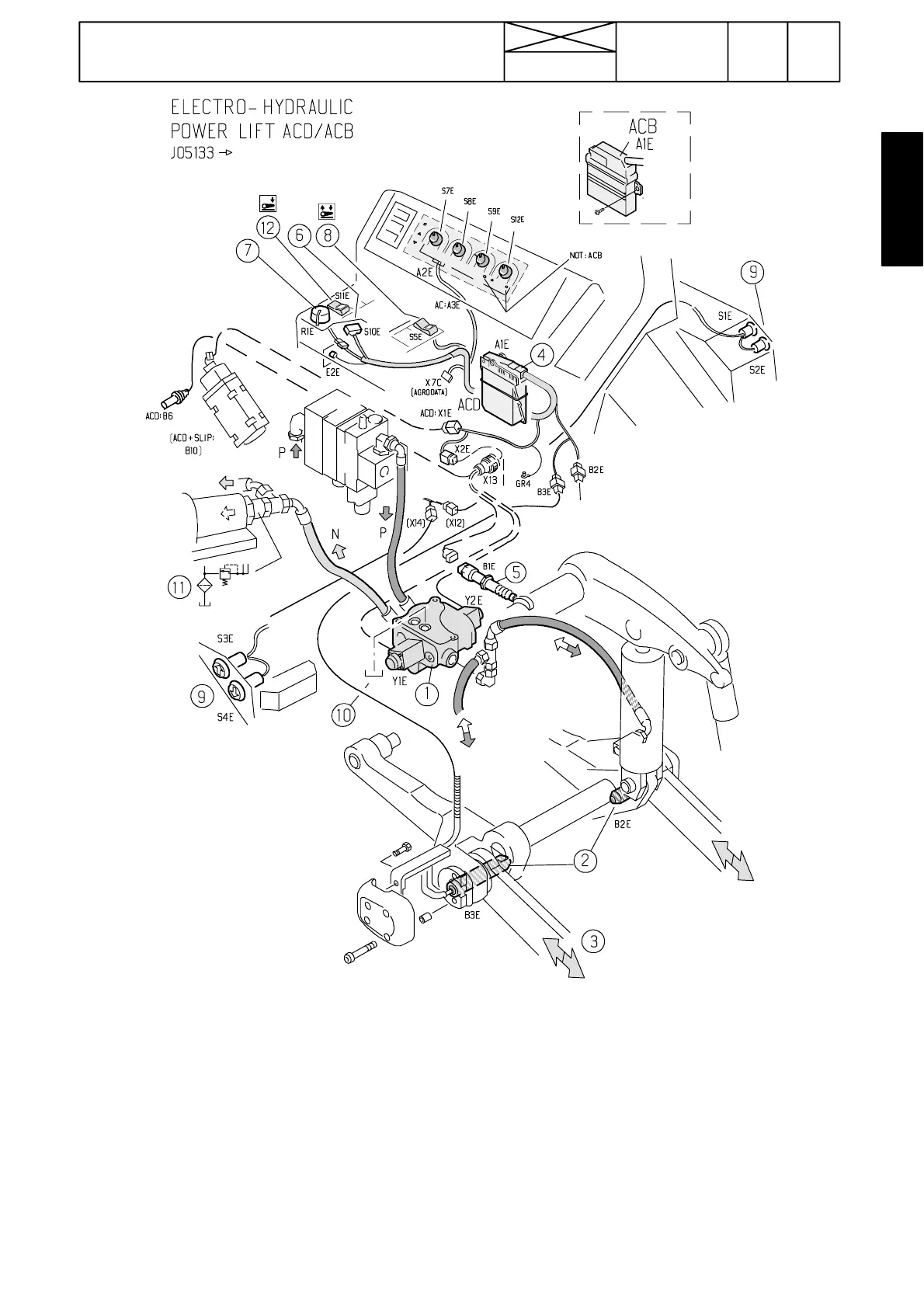

Fig. 3. Electro ---hydraulic power lift ACB/ACD, J05133---.
1. Control valve
2. Draft sensors
3. Lower links
4. Electronic unit (different on ACB and ACD)
5. Position sensor
6. Lift/stop/lower switch
7. Potentiometer for position control
8. Rocker switch
9. Push buttons, rear mudguards
10. Return oil into the gearbox housing
11. Return oil from control valve
12. Switch, forced lowering (not on earlier models)
