FITTING INSTRUCTION 526.07.1999 6000---8750
39.20
AGRODATA--- INSTRUMENT PANEL
(8)
06.08.1997
Calibrating the instrument for different
tyres:

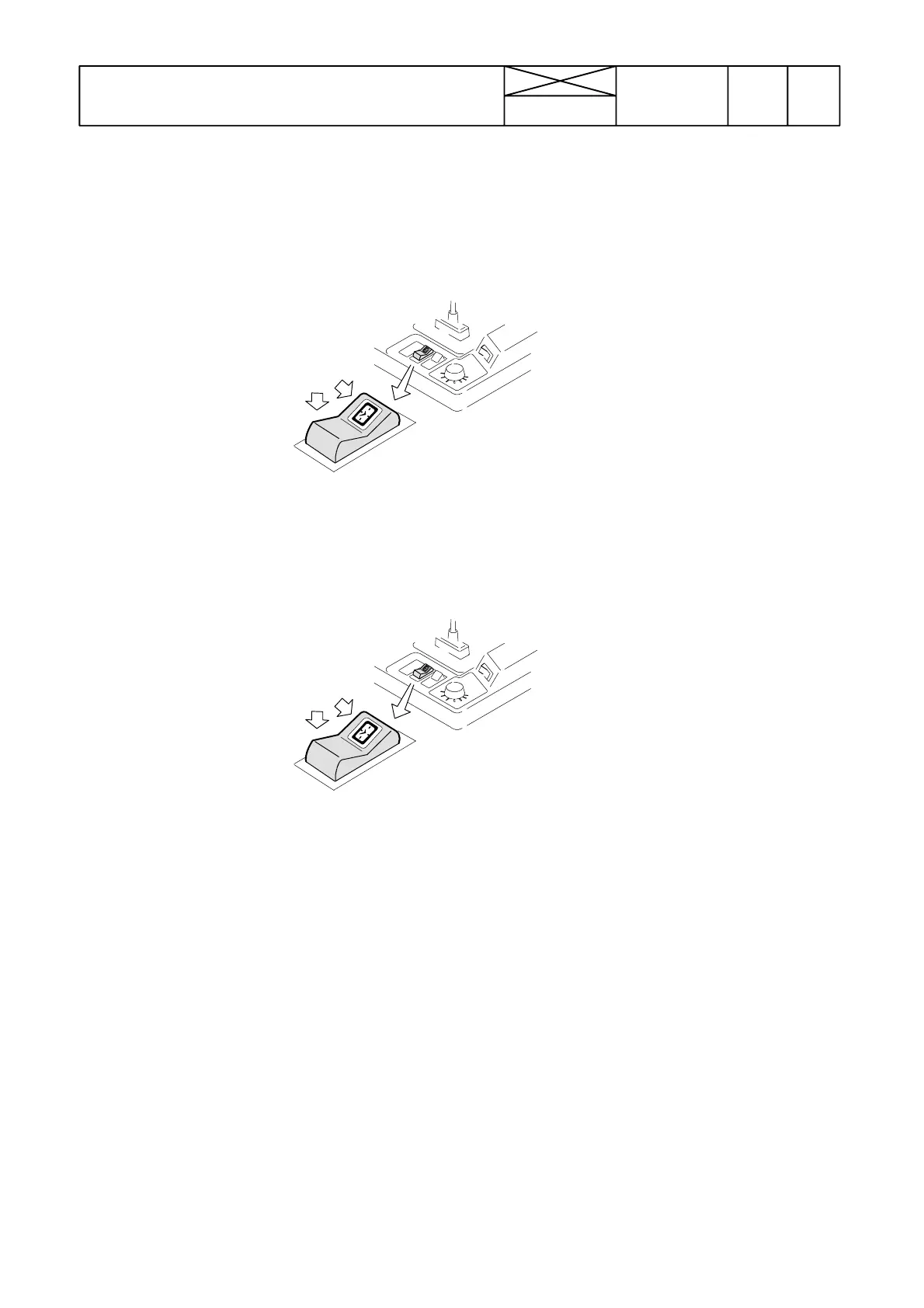

1. Remove the switch C by prying it carefully. Do not dis-
connect the wires.
2. Switch on current with the ignition switch.
C
--- 3. Connect the switch pins 1 and 7 with an auxiliary
wire and press at the same time the switch front edge
forover3seconds.”P”appearsinthelowerdisplayand
the valid code number (e.g. P243). The first digit is flash-
ing. Remove the wire.
C
4. Adjust the hundreds by pressing the switch rear edge.
5. When the hundreds are correctly adjusted, press the
switch front edge and tens start to flash.
6.Adjustthetensbypressingtherearedgeandthen
press the front edge, at which time single units start to
flash.
7. Adjust the ones by pressing the rear edge.
8. Finally press the front edge for over 2 seconds. Calibrat-
ing has been carried out and running hours appear in
thelowerdisplay(readthenotebelow).Fittheswitch.
Note! In the beginning of the production (the first 20
tractors), the switch pins 1 and 7 must be once again
connected with auxiliary wire and after that the switch
front edge is pressed over 2 seconds.
Note! The code number value can vary between
P100---P299. When pressing the switch rear edge, the
code value changes from a smaller value to greater one.
The code numbers and corresponding tyres are listed in
the table on the next page.
To Next Page
