41. Clutch
6250Hi--
6650Hi
410 7A
1. 10. 1999
Hydraulic coupling on 6250Hi---6650Hi
HiTrol

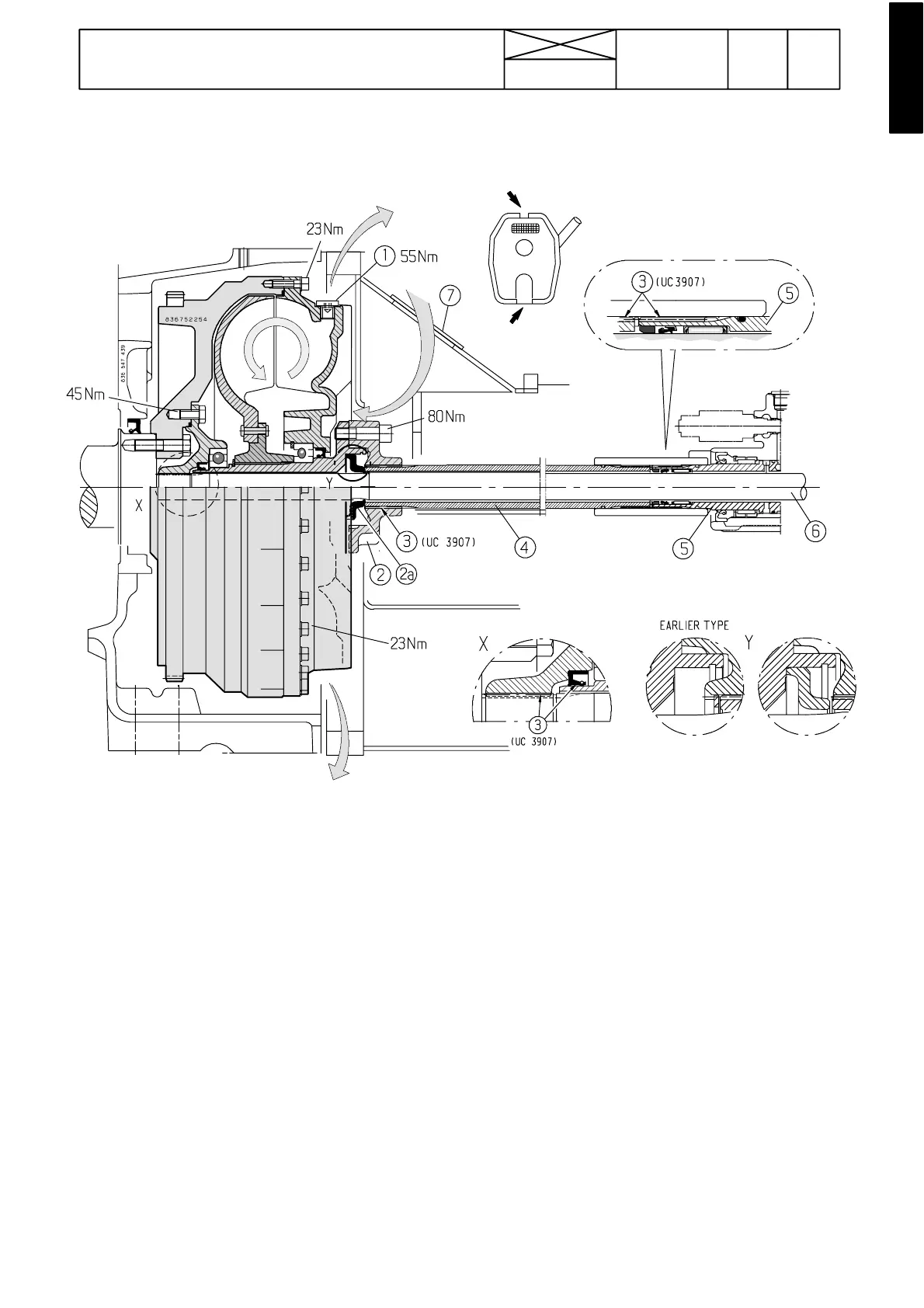

Picture 5a. Hydraulic coupling fitting (Voith TD---FVA1) in 6250Hi---6650Hi tractors
(this fluid coupling is the same Voith as used earlier, see page 410/6).
Oil volumes in the fluid coupl i ngs, see page 130/4. Test values and r e pairs, see page 411/7.
1. Oil filling/checking plug. Emptying and filling can be done without removing the coupling from the t ractor.
NOTE! When emptying t he coupling, 0,2 litres oil remain in the coupling, which must be observed during fill i ng.
2. New hub flange on HiTech models
3. E P --- g r e a s e
4. The clutch shaft is modified (different length, front bearing point removed)
5. In the DPS input shaft (new part) there is a space for guide ring (protects seal when the long PTO shaft is fitted), seal and needle
bearing (as in DPS 650).
6. The long PTO shaft is modified (hardened at the needle bearing and the seal)
7.Metalnet.Inplaceofthenetthereisaplateontractorswhichdonothavethefluidcoupling).
